LiYCY 12 Core 1.5mm2 LSZH Screened Flexible Control Cable 300 500V Grey

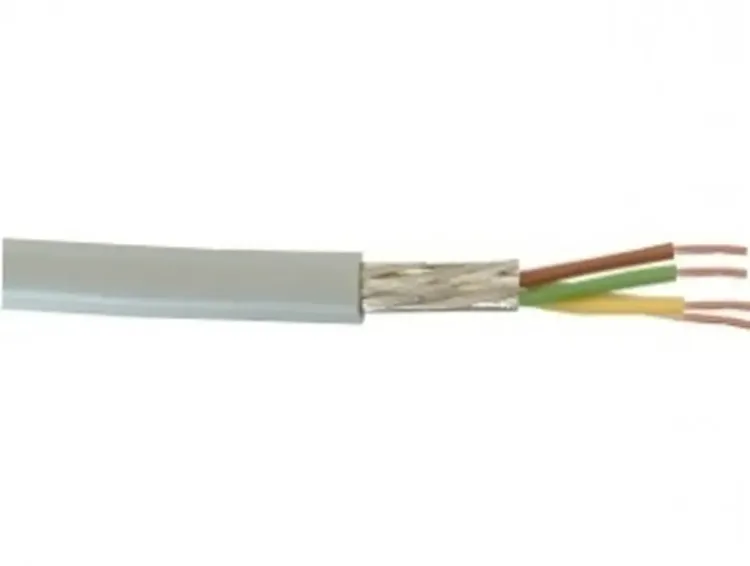

Photo is representative

LiYCY 12 Core 1.5mm2 LSZH Screened Flexible Control Cable 300 500V Grey

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 1215LIYCY
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £6.46

Gross price

£7.75

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

12-core LiYCY flexible screened control cable with LSZH insulation and sheath. Built for control and instrumentation runs where both EMC screening and fire safety are required — LSZH construction cuts toxic gas and smoke output in the event of fire.

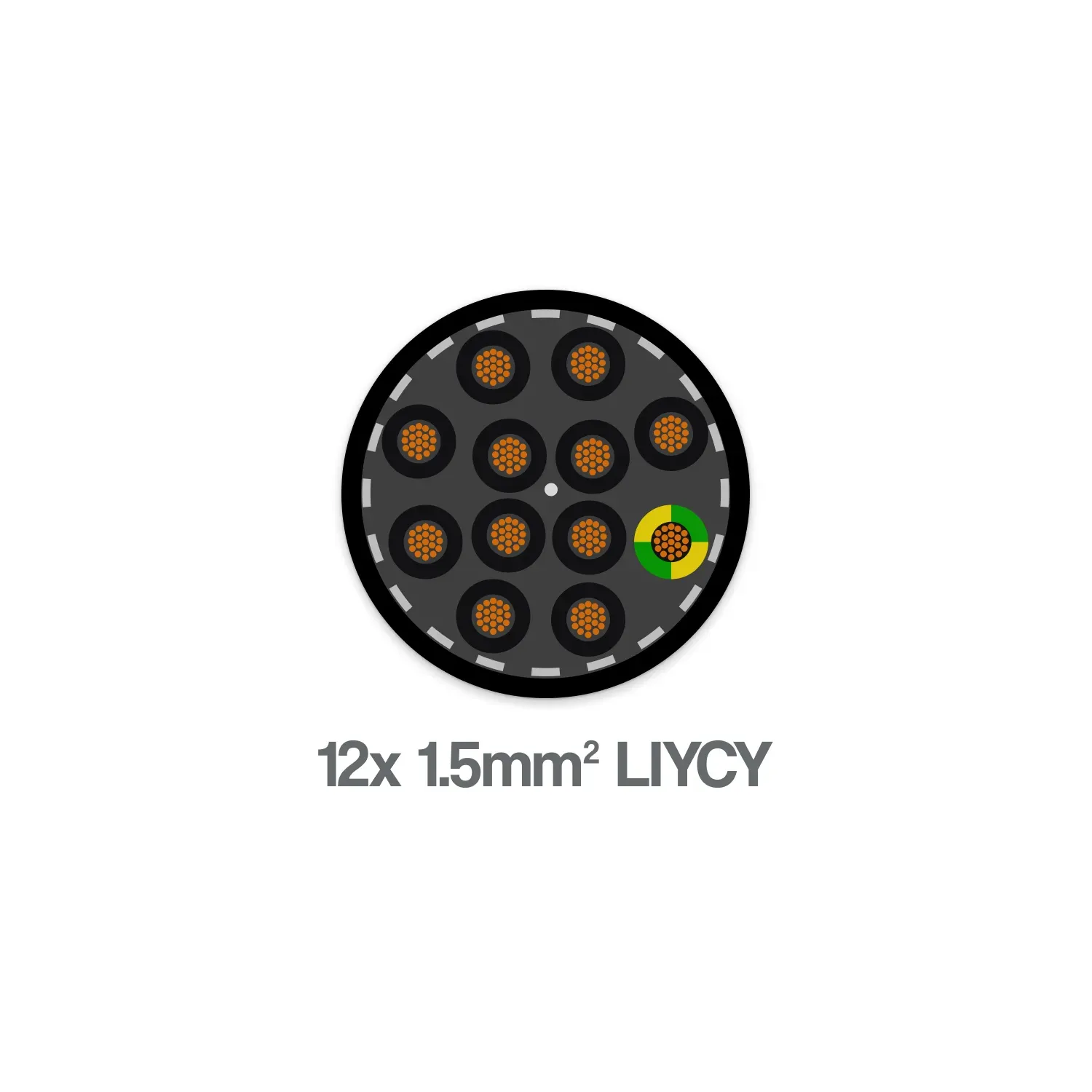

Tinned copper wire braid screen provides interference protection for data and signal circuits. 11 black numbered cores plus a green/yellow earth core simplifies termination and CPC identification.

  • 300/500V rated
  • 12.70mm OD — 25mm gland
  • 24A current carrying capacity (in air at 30°C)
  • Conductor resistance: 13.3 Ω/km at 20°C
  • Flex temp range: -5°C to +70°C
Specifications

Voltage Rating

300/500V

Number of Cores

12

Conductor CSA

1.5mm²

Stranding

30/0.25mm

Core Identification

11 black numbered cores + earth (green/yellow)

Conductor Material

Plain annealed flexible copper

Insulation

Low Smoke Zero Halogen (LSZH)

Screen

Tinned copper wire braid

Sheath

Low Smoke Zero Halogen (LSZH)

Sheath Colour

Grey

Outside Diameter

12.70mm

Gland Size

25mm

Current Carrying Capacity

24A (in air at 30°C)

Conductor Resistance at 20°C

13.3 Ohm/km

Voltage Drop (3/4 core AC)

25 mV/A/m

Temperature Rating (Flexing)

-5°C to +70°C

Temperature Rating (Static)

-20°C to +70°C

Weight

281 kg/km

Standard

BS EN 50525-3-11 / VDE 0250
