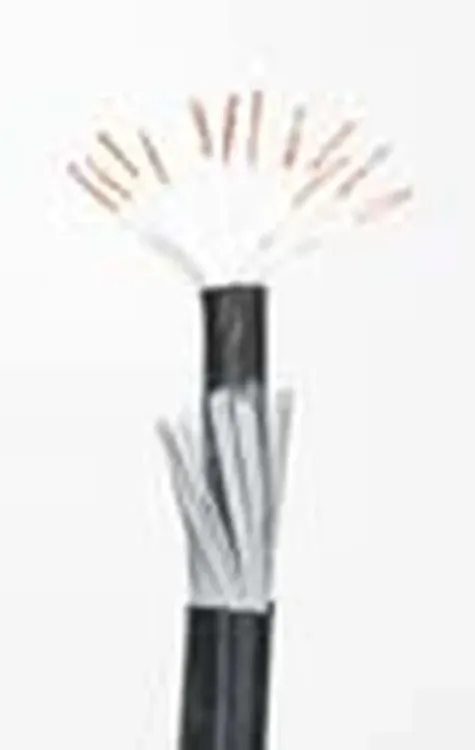

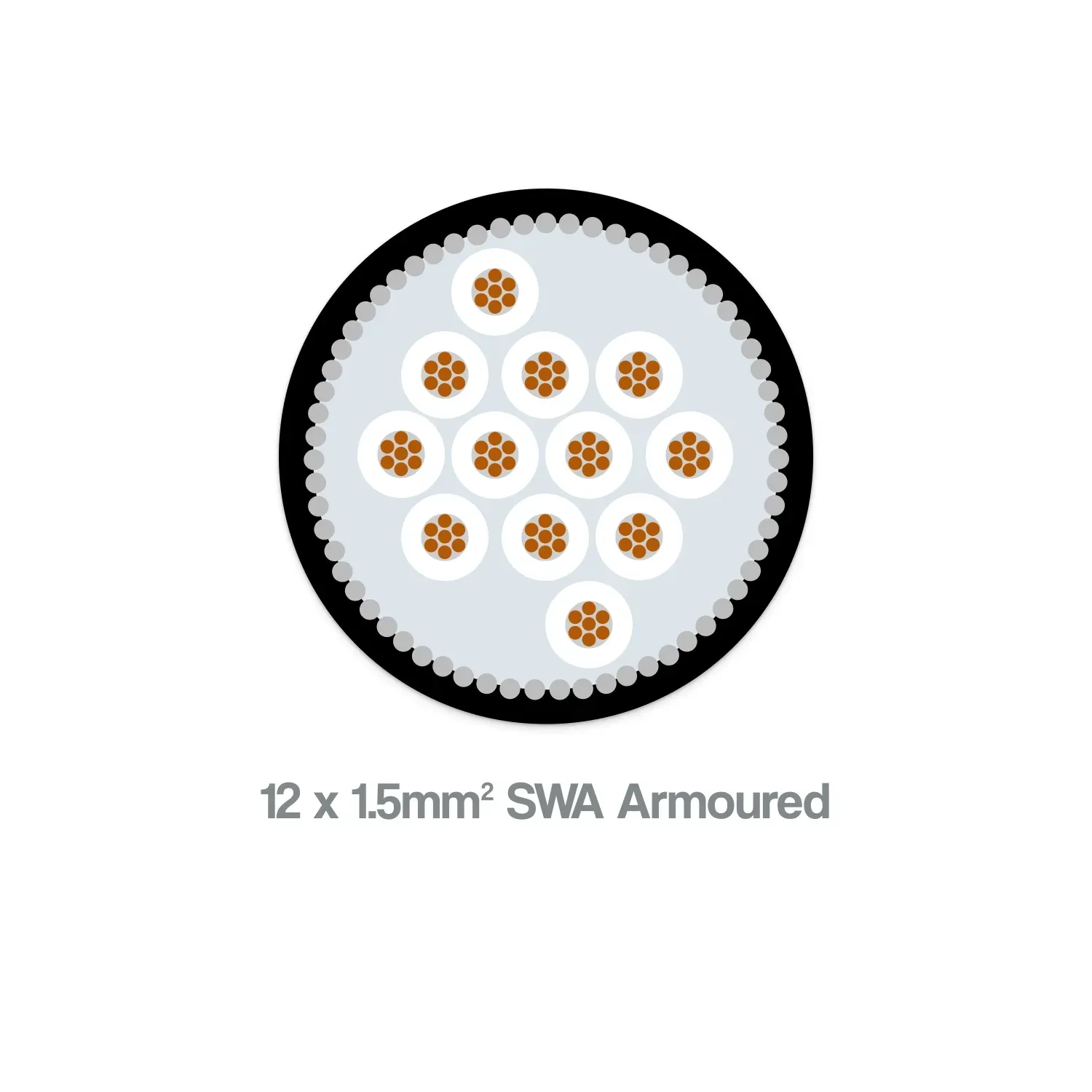

1.5mm² 12 core SWA armoured cable XLPE/LSZH - overall view

Photo is representative

1.5mm² 12 Core SWA Armoured Cable 600/1000V XLPE/LSZH

Product Information

Stock Code 1215SWA
GTIN —
Stock status: In stock

priced per meter

Net price: £6.09

Gross price

£7.30

This item is not available to order online. Contact us to arrange supply.

This 1.5mm² 12 core SWA armoured cable is designed for mains power and control applications, rated at 600/1000V with XLPE insulation and LSZH bedding and outer sheath for enhanced fire performance. The cable features Class 2 stranded copper conductors, steel wire armour for mechanical protection, and complies with BS 6724. Operating temperature range: -20°C to +90°C with 90°C maximum conductor temperature. Suitable for fixed installation indoors, outdoors, underground, or in cable ducting, especially where strict fire, smoke, and toxic fume standards apply. Ideal for public buildings, data centres, transport hubs, and locations requiring LSZH compliance to IS 10101:2020 and BS 7671.

Specifications

Conductor Cross-Sectional Area

1.5mm² Class 2 stranded copper

Core Count

12 core configuration for multi-circuit power/control

Voltage Rating (Uo/U)

600/1000V

Insulation Type

XLPE (Cross-Linked Polyethylene)

Sheath/Jacket Type

LSZH (Low Smoke Zero Halogen) bedding and outer sheath

Armour Type

Galvanised steel wire armour (SWA)

Operating Temperature

-20°C to +90°C

Maximum Conductor Temperature

90°C

Standards Compliance

BS 6724, BS EN/IEC 60228, IS 10101:2020

Flame and Smoke Performance

BS EN/IEC 60332-1-2, 60332-3-24 (Cat C), BS EN/IEC 61034-2, BS EN/IEC 60754-1/2

Overall Diameter

18mm (approximate)

Installation Method

Suitable for fixed indoor, outdoor, underground, or ducted installations
