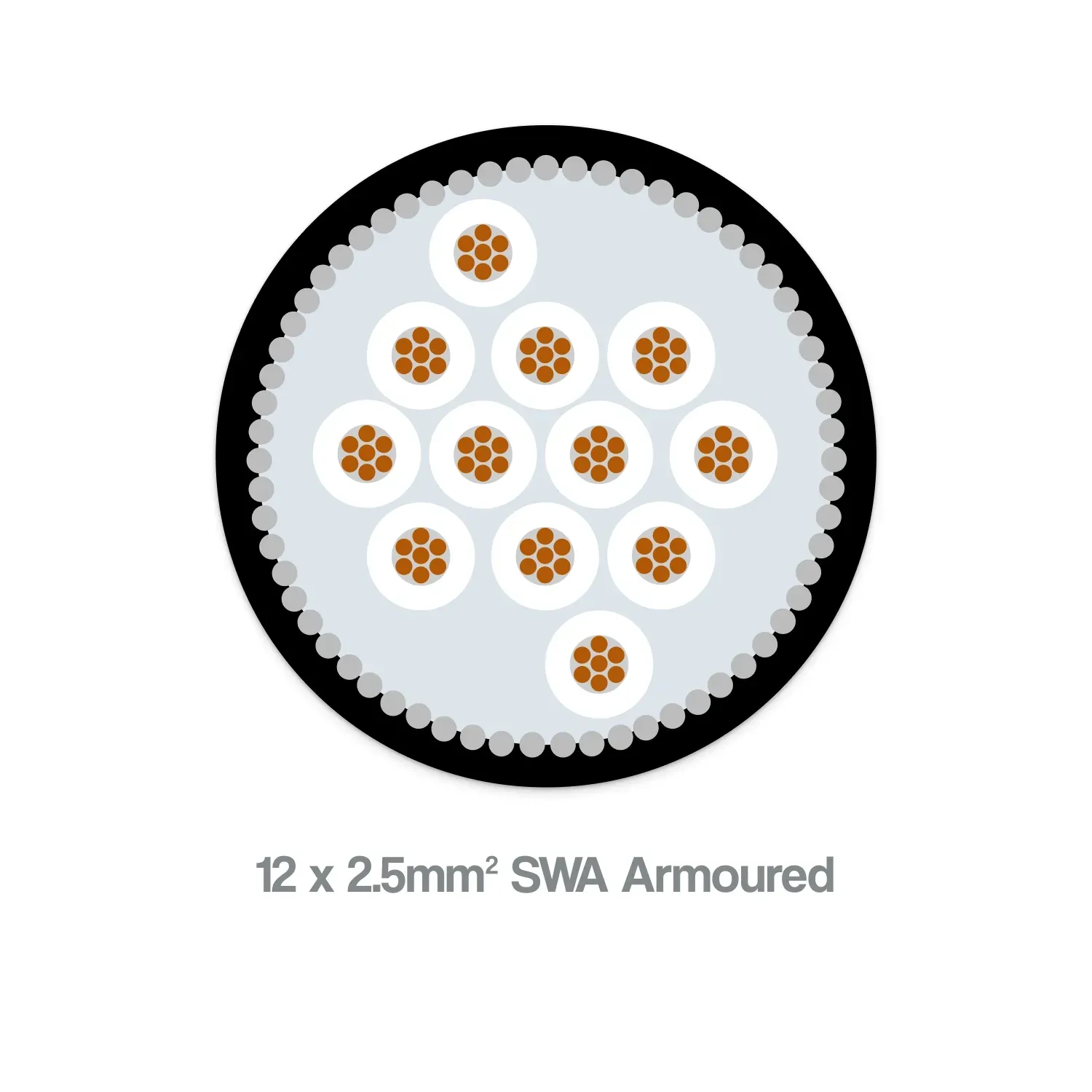

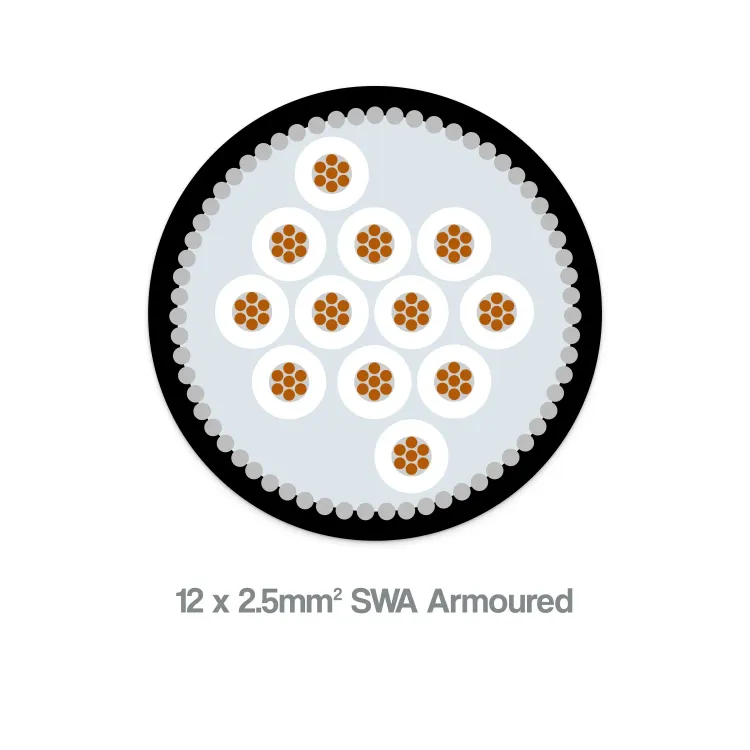

2.5mm² 12 core SWA armoured cable - black LSZH sheath, showing multi-core structure and steel wire armour

Photo is representative

2.5mm² 12 Core SWA Armoured Cable XLPE/LSZH 600/1000V

Product Information

Stock Code 1225SWA
GTIN —
Stock status: In stock

priced per meter

Net price: £8.69

Gross price

£10.43

This item is not available to order online. Contact us to arrange supply.

This 2.5mm² 12 core SWA armoured cable is designed for mains power and control circuits, rated at 600/1000V with XLPE insulation and a black Low Smoke Zero Halogen (LSZH) sheath. The cable features class 2 stranded copper conductors (7⁄0.67mm) and galvanised steel wire armour (SWA) for mechanical protection, complying with BS6724 and BS EN/IEC 60228 standards. Operating temperature range: -20°C to +90°C, maximum conductor temperature 90°C. The LSZH bedding and sheath ensure reduced smoke and toxic fume emission in fire situations. Suitable for indoor, outdoor, underground, and in duct installations, especially where enhanced fire safety is required such as public buildings, data centres, and transportation hubs.

Specifications

Conductor Cross-Sectional Area

2.5mm²

Core Count

12 cores

Conductor Class

Class 2 stranded copper (7/0.67mm)

Voltage Rating (Uo/U)

600/1000V

Insulation

XLPE (Cross Linked Polyethylene), 90°C maximum conductor temperature

Sheath/Jacket Type

Low Smoke Zero Halogen (LSZH), black

Armour Type

Galvanised Steel Wire Armour (SWA)

Operating Temperature Range

-20°C to +90°C (fixed)

Overall Cable Diameter

21mm (approximate)

Cable Weight

905kg/km

Minimum Bending Radius

6 × overall diameter (fixed installation)

Voltage Drop (Three-phase AC)

16mV/A/m

Standards Compliance

BS6724, BS EN/IEC 60228, BS EN/IEC 60332-1-2, BS EN/IEC 60332-3-24, BS EN/IEC 61034-2, BS EN/IEC 60754-1/2

Suitable Installations

Indoor, outdoor, direct burial underground, cable ducts, fire-sensitive areas

Core Identification

White with black numbers (up to 6mm²)

Gland Size

25
