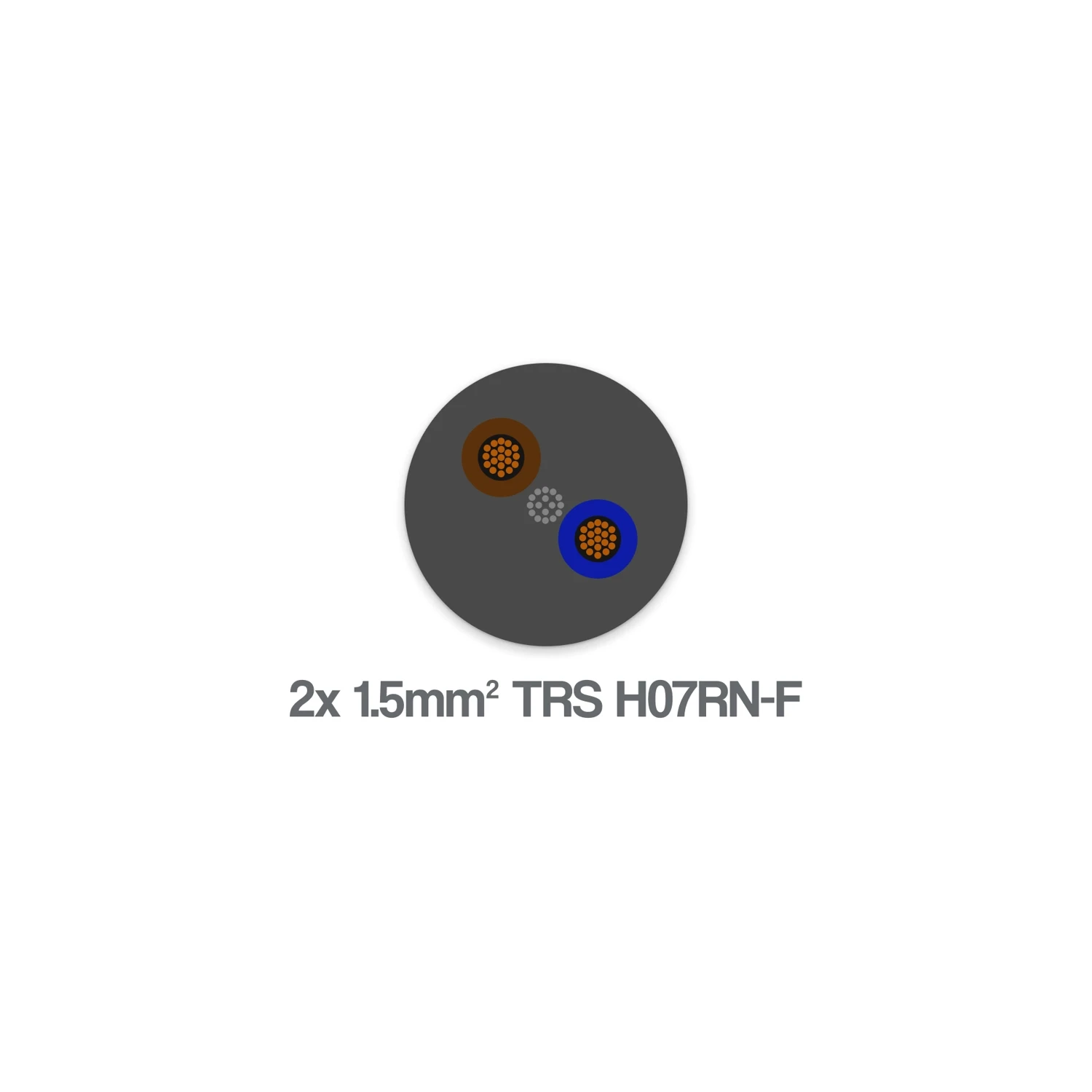

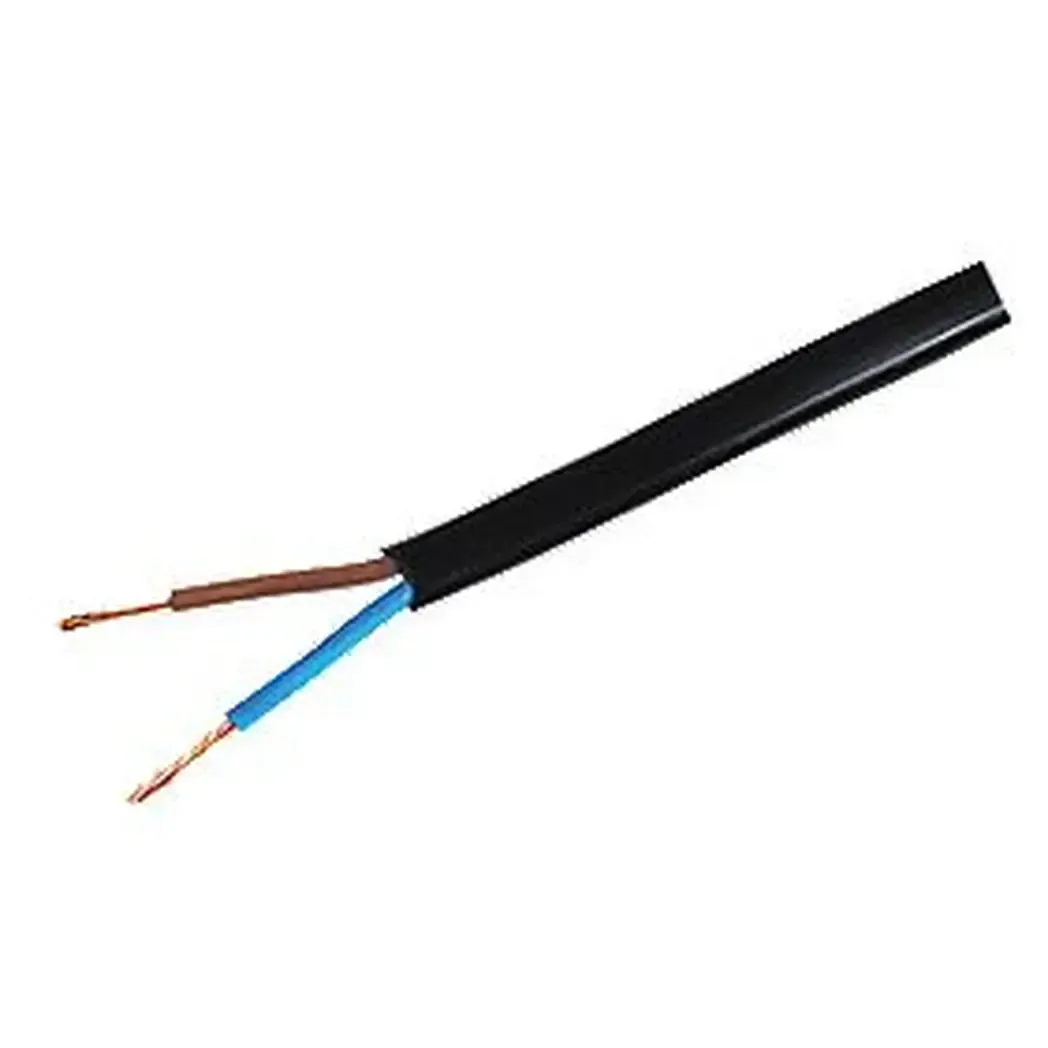

H07RN-F TRS 2 Core 1.5mm2 Flexible Rubber Cable Black 0.6 1kV

Photo is representative

H07RN-F 2 Core 1.5mm2 Flexible Rubber Cable Black 0.6 1kV

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 215TRS7
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £1.34

Gross price

£1.61

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

TRS H07RN-F 2 core 1.5mm² flexible rubber cable for site supplies, mobile plant and harsh environments — ports, water treatment, sewage, hot and cold areas.

Class 5 stranded copper conductors with EPR insulation and polychloroprene (CR) outer sheath. Rated for fixed and flexing duties.

  • Voltage: 0.6/1kV (fixed), 450/750V (flexing)
  • Temp range: –30°C to +90°C fixed / –15°C to +90°C flexing
  • OD: 7.6–9.8 mm
  • Bend radius: 4 × OD fixed, 6 × OD flexing
  • Core colours: Brown, Blue
Specifications

Conductor Size

1.5 mm²

Number of Cores

2

Stranding

30/0.25 mm

Conductor Type

Class 5 flexible stranded copper

Insulation

Ethylene Propylene Rubber (EPR)

Outer Sheath

Polychloroprene Rubber (CR)

Sheath Colour

Black

Core Colours

Brown, Blue

Voltage Rating (Fixed)

0.6/1 kV

Voltage Rating (Flexing)

450/750 V

Temperature Range (Fixed)

–30°C to +90°C

Temperature Range (Flexing)

–15°C to +90°C

Overall Diameter

7.6–9.8 mm

Bend Radius (Fixed)

4 × overall diameter

Bend Radius (Flexing)

6 × overall diameter

Weight

132 kg/km

Flame Retardancy

IEC/EN 60332-1-2

Standards

BS EN 50525-2-21, BS EN/IEC 60332-1-2, BS EN/IEC 60228
