H07RN-F 2 Core 2.5mm² Flexible EPR PCP Cable Black 0.6 1kV

Photo is representative

H07RN-F 2 Core 2.5mm2 Flexible EPR PCP Rubber Cable Black

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 225TRS7
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £1.90

Gross price

£2.28

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

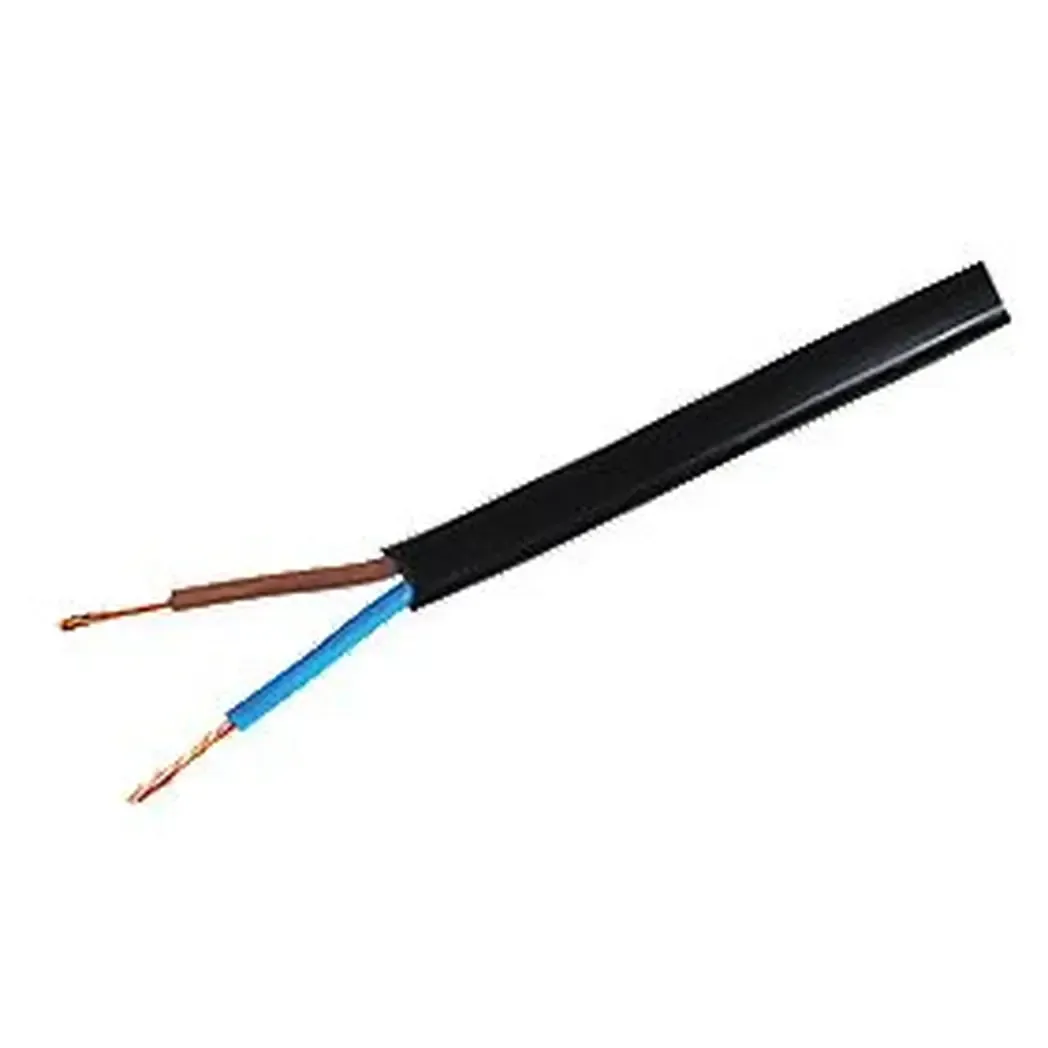

2-core H07RN-F flexible cable with EPR insulation and PCP outer sheath. Built for harsh environments — worksites, industrial machinery, portable power supplies, and outdoor applications.

Class 5 stranded copper conductors (50⁄0.25 stranding). Black sheath, blue and brown cores.

  • Voltage: 0.6/1kV fixed, 450/750V flexing
  • OD: 9–11.6mm
  • Temp range: -15°C to +90°C (flexing), -30°C to +90°C (fixed)
  • Bend radius: 4x OD fixed, 6x OD flexing
  • Flame retardant to IEC/EN 60332-1-2
Specifications

Conductor Size

2.5mm²

Number of Cores

2

Stranding

50/0.25

Conductor Type

Class 5 flexible stranded copper

Insulation Material

Ethylene Propylene Rubber (EPR)

Outer Sheath Material

Polychloroprene Rubber (PCP)

Sheath Colour

Black

Core Colours

Blue, Brown

Voltage Rating (Fixed)

0.6/1kV

Voltage Rating (Flexing)

450/750V

Temperature Range (Fixed)

-30°C to +90°C

Temperature Range (Flexing)

-15°C to +90°C

Overall Diameter

9–11.6mm

Bend Radius (Fixed)

4 x overall diameter

Bend Radius (Flexing)

6 x overall diameter

Weight

193 kg/km

Flame Retardancy

IEC/EN 60332-1-2

Standards

BS EN 50525-2-21, BS EN/IEC 60332-1-2, BS EN/IEC 60228
