Arctic Flexible 3 Core 1.5mm2 Blue Sheath PVC Cable 300 500V BS6004

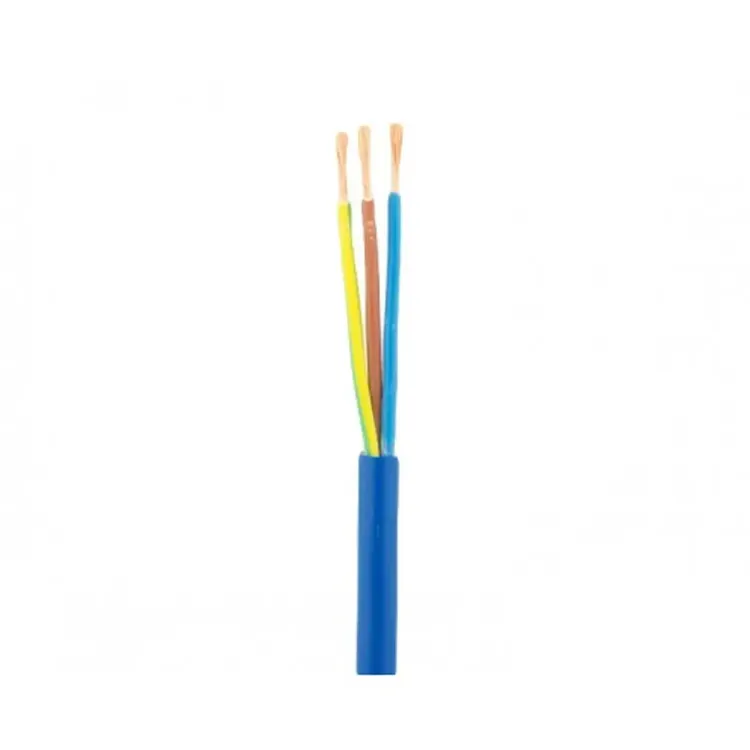

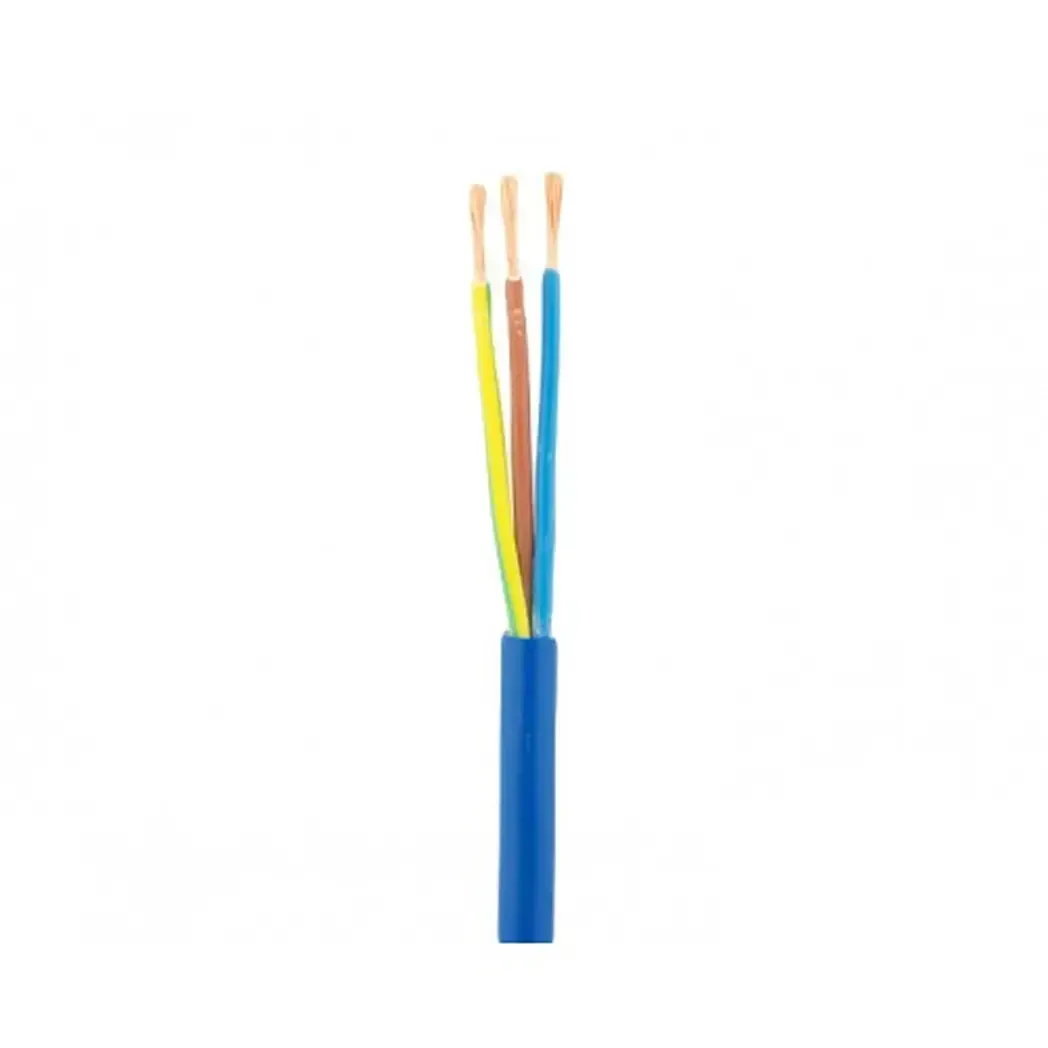

Photo is representative

Arctic Flexible 3 Core 1.5mm2 Blue Sheath PVC Cable 300 500V BS6004

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 315ARTBLUE
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £0.99

Gross price

£1.19

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Arctic grade 3183A flexible cable, 3 core 1.5mm², blue PVC sheath. Built for low-temperature environments — rated down to -40°C, so it stays flexible on site in winter conditions.

Suitable for portable tools and temporary lighting, indoors or out.

  • 300/500V rated
  • Class 5 stranded copper, 30⁄0.25mm
  • OD: 8.2mm — take a 20S gland
  • Min. bending radius (fixed): 6 x OD

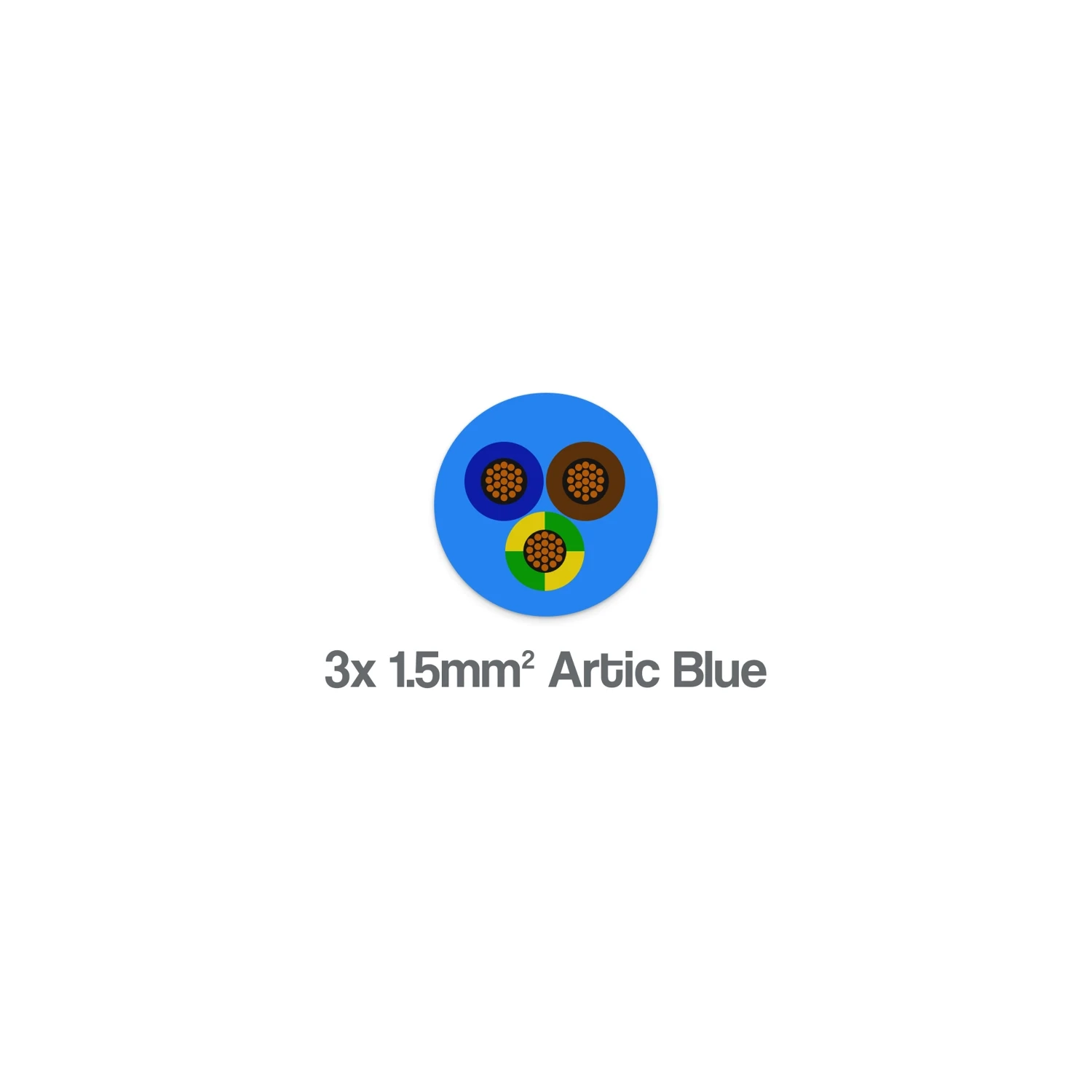

  • Core colours: Brown, Blue, Green/Yellow
Specifications

Voltage Rating

300/500V

Conductor Size

1.5mm²

Number of Cores

3

Conductor Type

Class 5 flexible, stranded copper

Stranding

30/0.25mm

Insulation Material

PVC

Sheath Material

PVC

Sheath Colour

Blue

Core Colours

Brown, Blue, Green/Yellow

Overall Diameter

8.2mm

Gland Size

20S

Weight

90 kg/km

Min. Bending Radius (Fixed)

6 x overall diameter

Operating Temperature

-40°C to +70°C

Standards

BS6004, BS EN/IEC 60228, BS EN/IEC 60332-1-2, BS EN 50265
