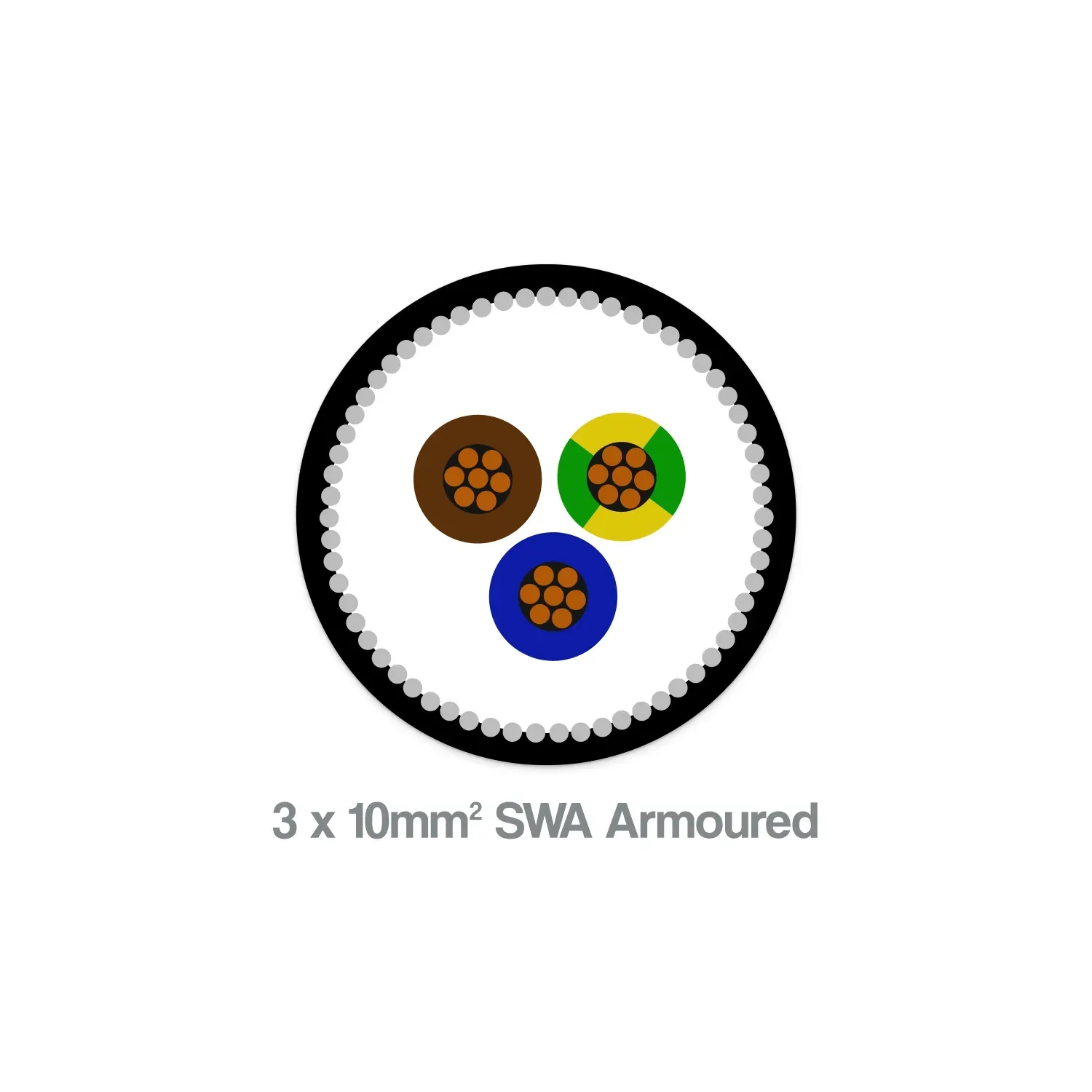

10mm² 3 Core SWA Armoured LSZH Cable cross section showing XLPE insulation, copper conductors, steel wire armour, and black LSZH sheath

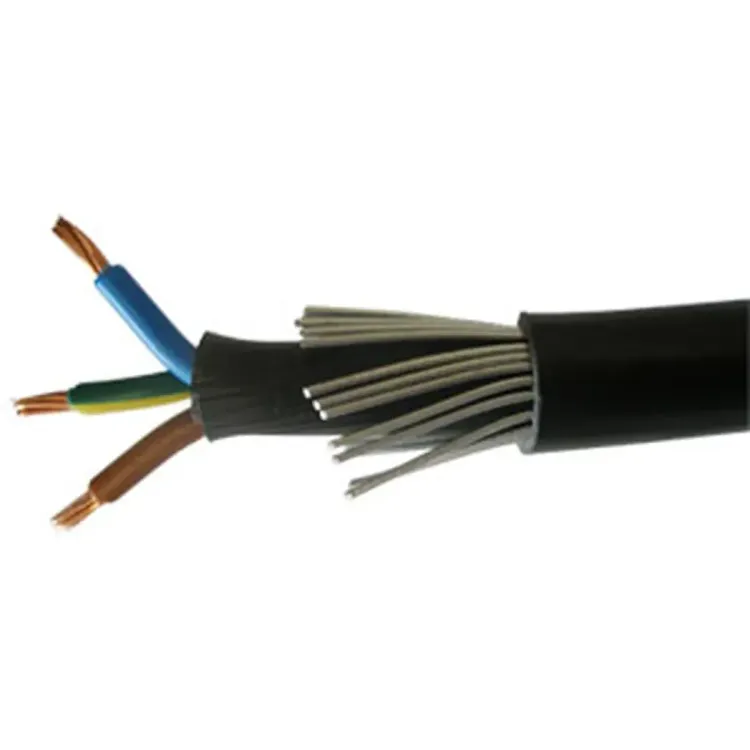

Photo is representative

10mm² 3 Core SWA Armoured LSZH Cable 600/1000V XLPE/LSZH

Product Information

Stock Code 310SWA
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £6.44

Gross price

£7.73

This item is not available to order online. Contact us to arrange supply.

This 10mm² 3 core SWA armoured cable is designed for mains power distribution in industrial, commercial, and infrastructure environments, rated at 600/1000V with XLPE insulation and LSZH bedding and outer sheath. The cable features Class 2 stranded plain copper conductors for high current capacity and complies with BS6724 and BS EN/IEC 60228. Operating temperature range: -20°C to +90°C. Galvanised steel wire armour provides mechanical protection, suitable for direct burial, outdoor ducting, and fire-sensitive locations. LSZH construction ensures minimal smoke and toxic fume emission, compliant with IS 10101:2020 and ideal for escape routes and public buildings.

Specifications

Conductor Cross-Sectional Area

10mm² Class 2 stranded copper conductor (7/1.35mm)

Core Count

3 core configuration with blue, brown, green/yellow colour coding

Voltage Rating (Uo/U)

600/1000V

Insulation Type

Cross Linked Polyethylene (XLPE), 90°C max conductor temperature

Armour/Screening

Galvanised Steel Wire Armour (SWA) for mechanical protection

Sheath/Jacket Type

Low Smoke Zero Halogen (LSZH) outer sheath, black colour

Operating Temperature Range

-20°C to +90°C (fixed installation)

Standard Compliance

BS6724, BS EN/IEC 60228, IS 10101:2020

Fire/Smoke Performance

Meets BS EN/IEC 61034-2 (low smoke), BS EN/IEC 60754-1/2 (acid gas emission), flame retardant to BS EN/IEC 60332-1-2

Installation Method

Suitable for direct burial, outdoor, indoor, ducted, submain, power distribution

Approximate Overall Diameter

17.9mm

Weight per Metre

0.75kg/m (750kg/km)

Voltage Drop (Three-phase AC)

4.0mV/A/m at 90°C
