Arctic Flexible Cable 3 Core 2.5mm Blue Sheath 300 500V BS6004 3183A

Photo is representative

Arctic Flexible Cable 3 Core 2.5mm Blue Sheath 300 500V BS6004 3183A

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 325ARTBLUE
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £1.94

Gross price

£2.32

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

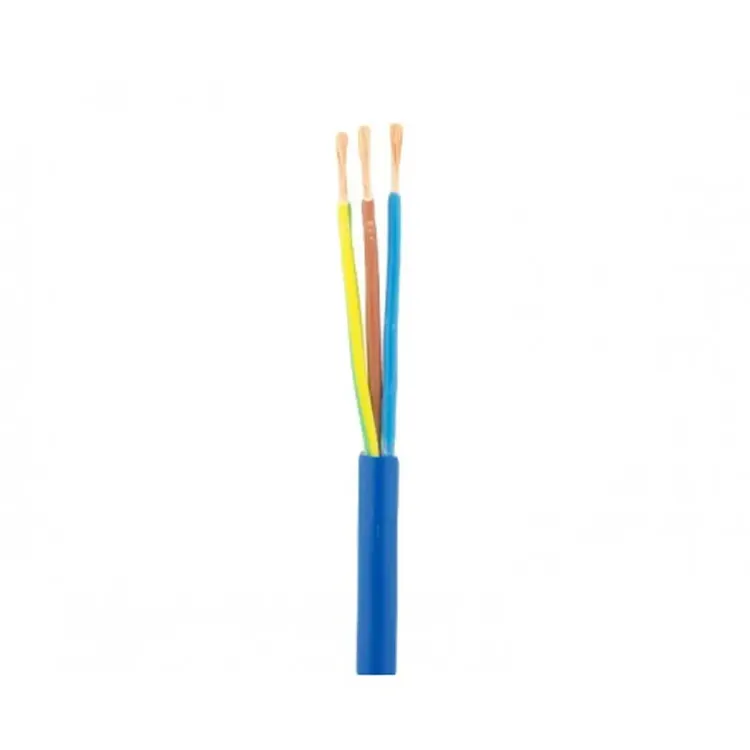

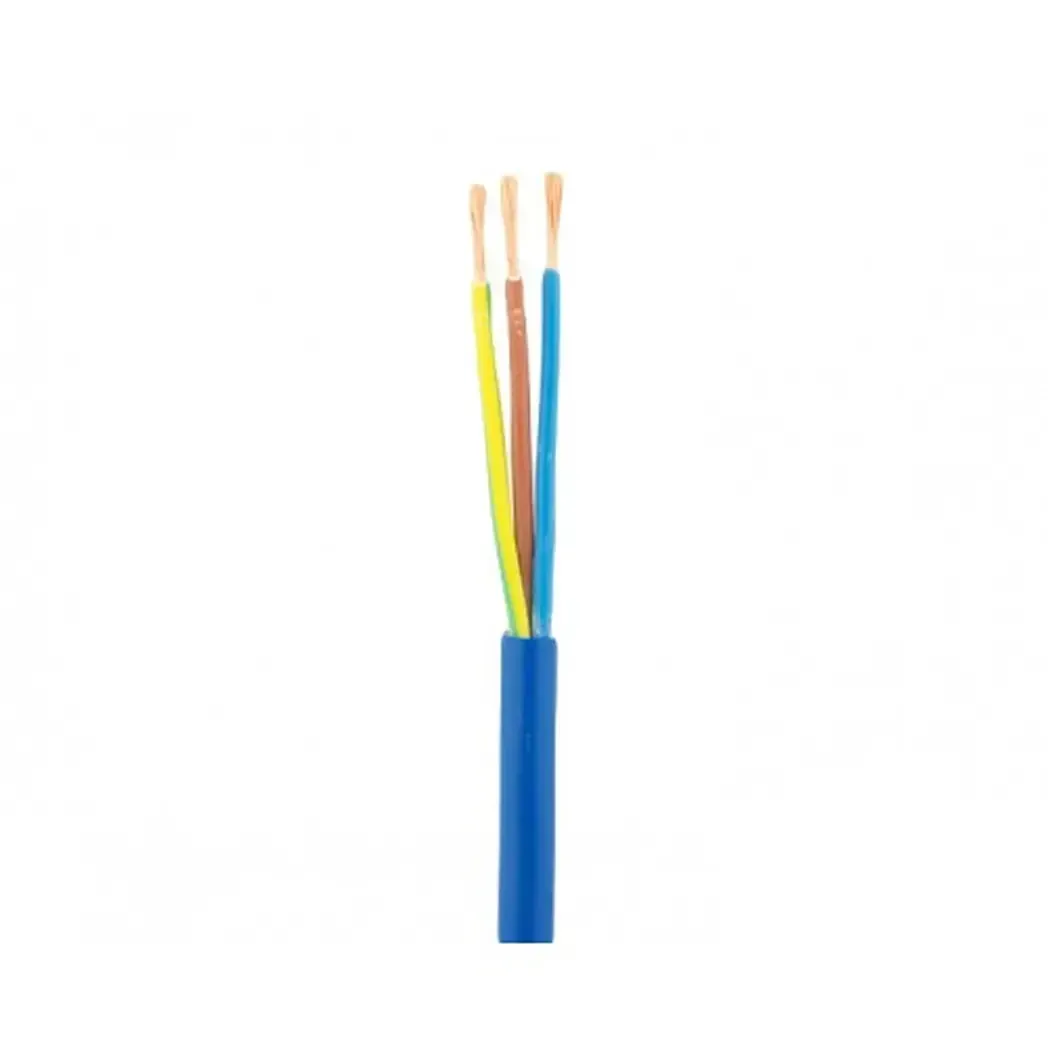

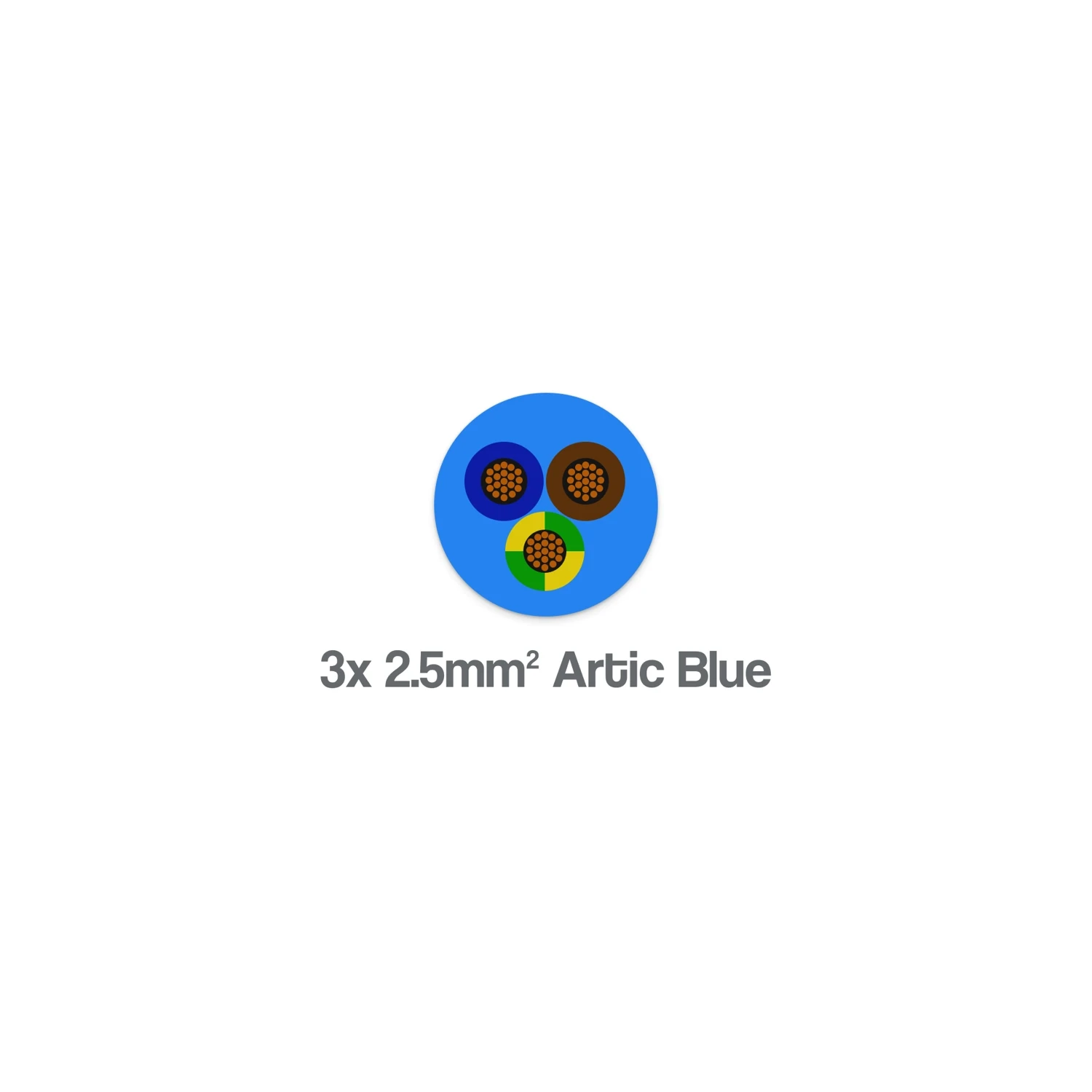

3-core 2.5mm² arctic flex. Blue PVC outer sheath with brown, blue, and green/yellow cores — standard for portable tools, temporary supplies, and outdoor flexible connections.

Class 5 stranded copper conductors (50⁄0.25mm) with PVC insulation. Maintains flexibility down to -40°C — suited to cold store, winter site work, and exposed outdoor use.

  • 300/500V rated
  • OD: 10.15mm, gland size 20S
  • Min. bending radius (fixed): 6 × OD
  • Flame retardant to BS EN 60332-1-2
  • Standards: BS6004, BS EN/IEC 60228, BS EN 50265
Specifications

Conductor Size

2.5 mm²

Number of Cores

3

Voltage Rating

300/500 V

Conductor Type

Class 5 flexible, stranded copper

Stranding

50/0.25 mm

Insulation Material

PVC

Sheath Material

PVC

Sheath Colour

Blue

Core Colours

Brown, Blue, Green/Yellow

Overall Diameter

10.15 mm

Weight

180 kg/km

Gland Size

20S

Min. Bending Radius (Fixed)

6 × overall diameter

Temperature Range (Flexing)

-40°C to +70°C

Standards

BS6004, BS EN/IEC 60228, BS EN/IEC 60332-1-2, BS EN 50265
