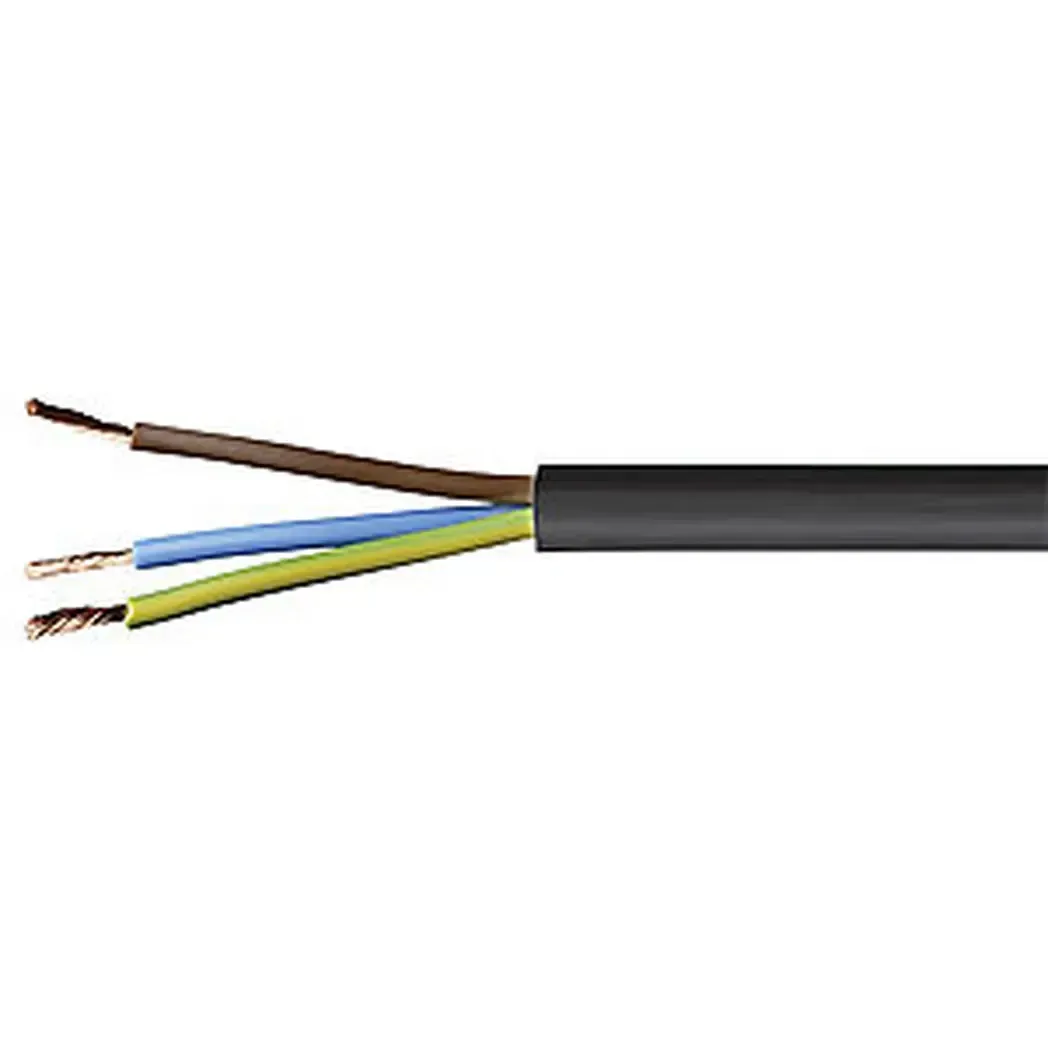

H07RN-F 3 Core 2.5mm2 Flexible Rubber Cable Black EPR PCP 0.6 1kV

Photo is representative

H07RN-F 3 Core 2.5mm2 Flexible Rubber Cable Black EPR PCP 0.6 1kV

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 325TRS7
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £2.85

Gross price

£3.42

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

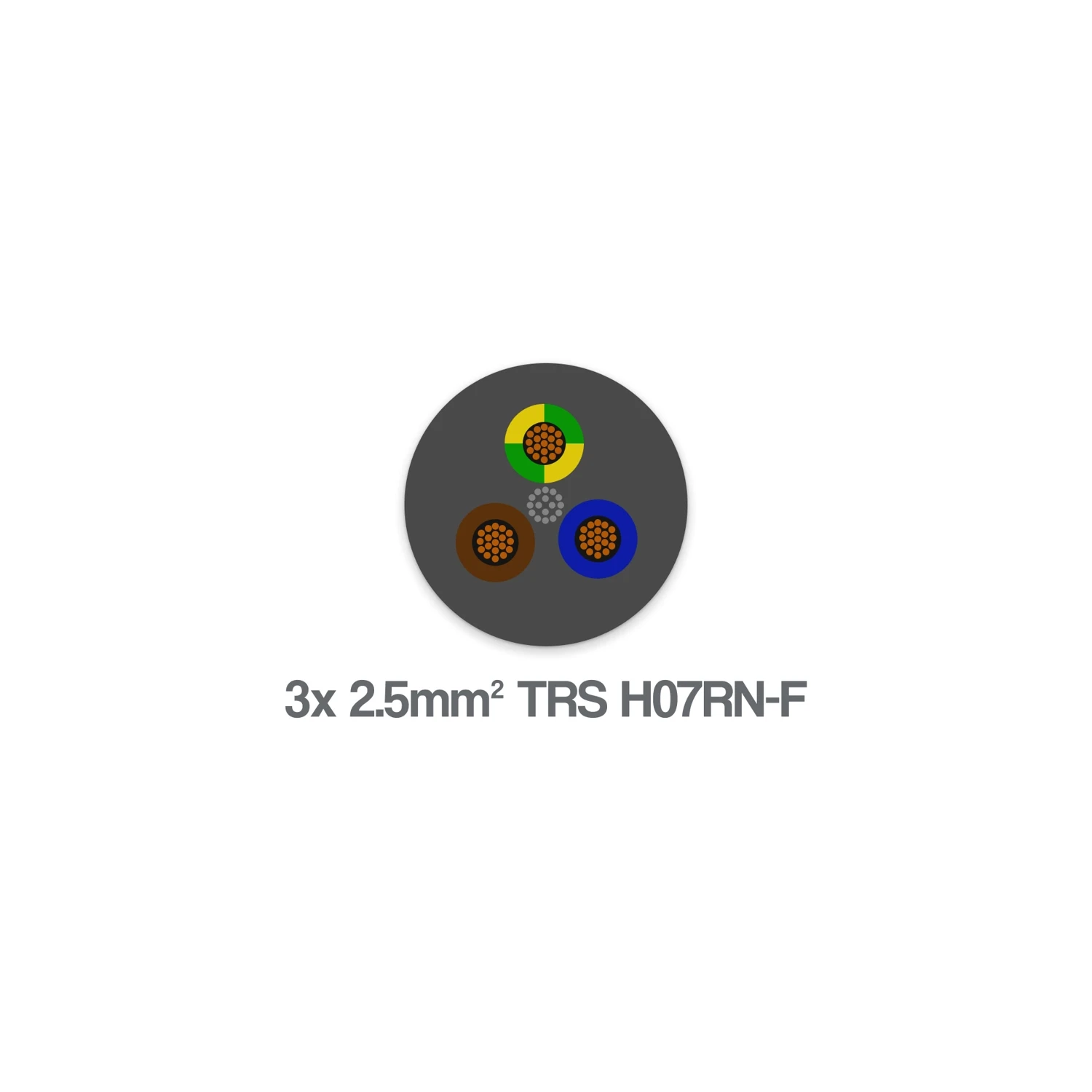

H07RN-F flexible rubber cable — 3 core, 2.5mm², Class 5 stranded copper with EPR insulation and polychloroprene (PCP) outer sheath. Built for work sites, mobile supplies, ports, water treatment, and harsh industrial environments. Handles both fixed and flexing applications.

  • Voltage: 0.6/1kV fixed, 450/750V flexing
  • Temp range: –30°C to +90°C (fixed), –15°C to +90°C (flexing)
  • OD: 9.6–12.4mm
  • Core colours: Brown, Blue, Green/Yellow
  • Flame retardant to IEC/EN 60332-1-2
Specifications

Conductor Size

2.5 mm²

Number of Cores

3

Stranding

50/0.25

Conductor Type

Class 5 flexible stranded copper

Insulation Material

Ethylene Propylene Rubber (EPR)

Outer Sheath Material

Polychloroprene Rubber (PCP)

Sheath Colour

Black

Core Colours

Brown, Blue, Green/Yellow

Voltage Rating (Fixed)

0.6/1kV

Voltage Rating (Flexing)

450/750V

Overall Diameter

9.6–12.4 mm

Weight

235 kg/km

Temperature Range (Fixed)

–30°C to +90°C

Temperature Range (Flexing)

–15°C to +90°C

Min Bending Radius (Fixed)

4 x overall diameter

Min Bending Radius (Flexing)

6 x overall diameter

Flame Retardancy

IEC/EN 60332-1-2

Standards

BS EN 50525-2-21, BS EN/IEC 60332-1-2, BS EN/IEC 60228
