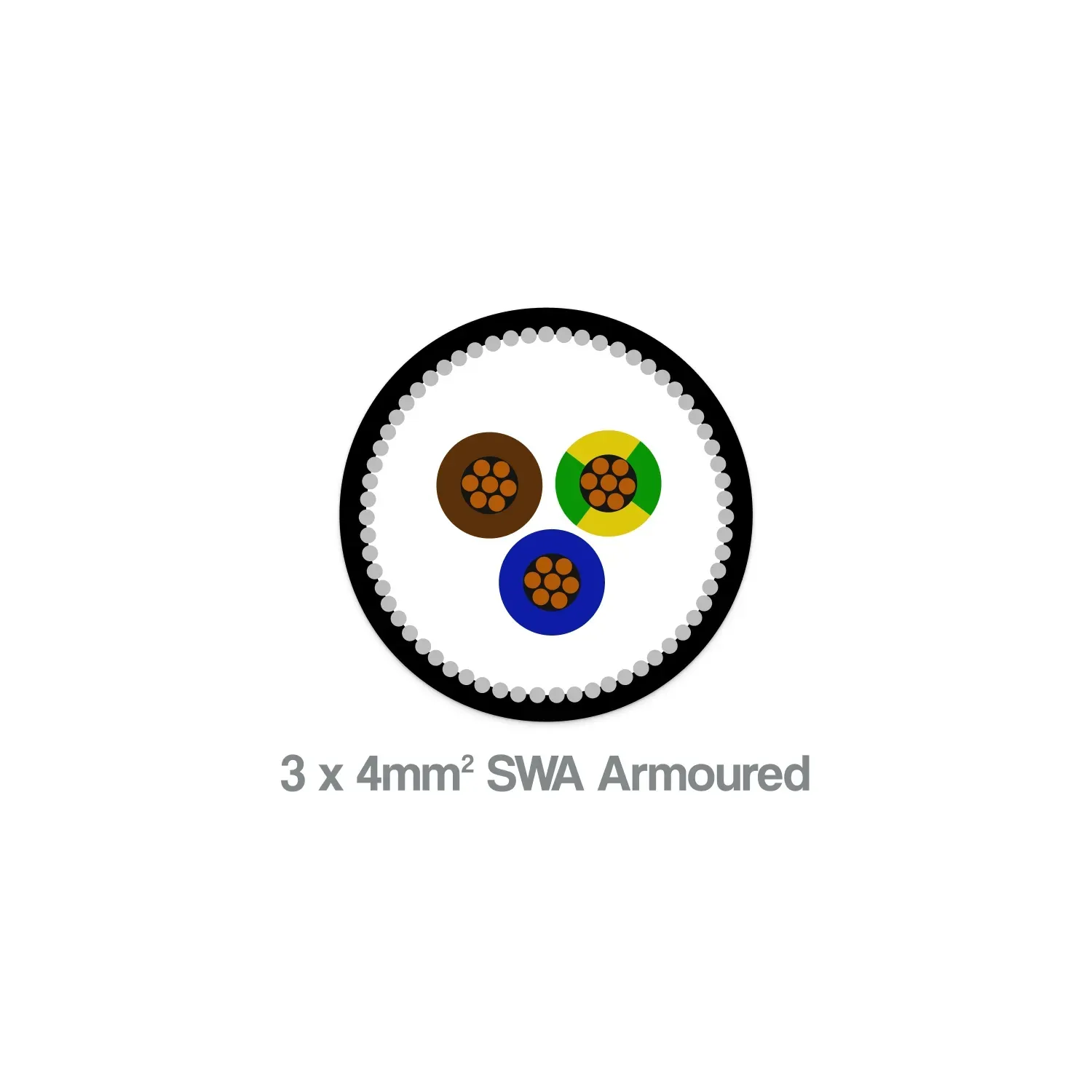

4mm² 3 core SWA armoured cable XLPE LSZH black

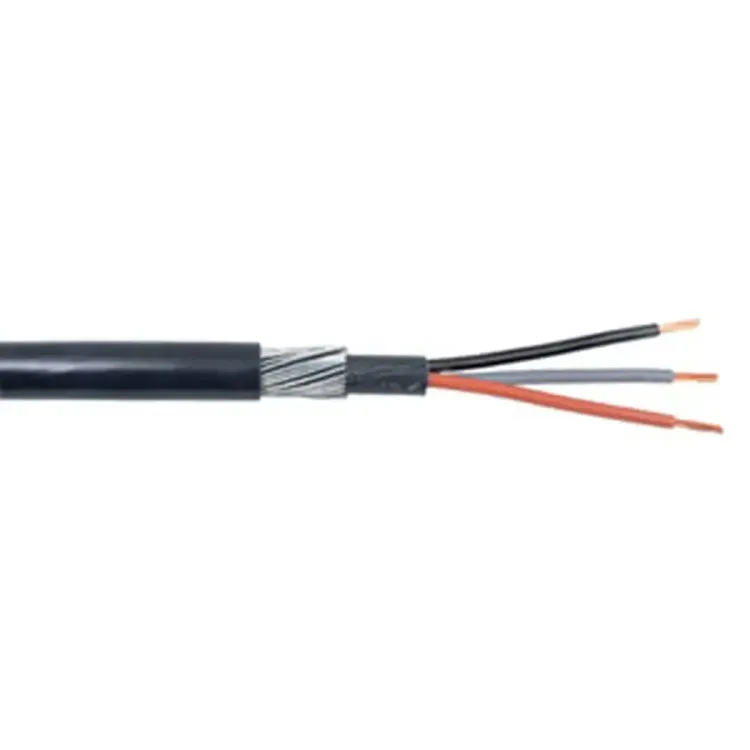

Photo is representative

4mm² 3 Core SWA Armoured Cable 600/1000V XLPE/LSZH

Product Information

Stock Code 34SWA
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £3.30

Gross price

£3.96

This item is not available to order online. Contact us to arrange supply.

This 4mm² 3 core SWA armoured cable is designed for power distribution in environments requiring high fire safety, rated at 600/1000V with XLPE insulation and a robust LSZH outer sheath. Constructed with Class 2 stranded copper conductors for optimal conductivity and mechanical flexibility, it complies with BS6724 and BS EN/IEC 60228. The cable features steel wire armour for mechanical protection and low smoke zero halogen sheath for reduced emissions in fire conditions. Operating temperature range: -20°C to +90°C, suitable for direct burial, underground ducts, indoor and outdoor fixed installations in public and high-occupancy buildings. Fire retardant to BS EN/IEC 60332 standards, with core colours brown, blue, and green/yellow for easy identification.

Specifications

Conductor Cross-Sectional Area

4mm² Class 2 stranded copper

Core Configuration

3 core (brown, blue, green/yellow)

Voltage Rating (Uo/U)

600/1000V (0.6/1kV)

Insulation Type

XLPE (Cross-Linked Polyethylene)

Sheath/Jacket Type

LSZH (Low Smoke Zero Halogen), black

Armour Type

Galvanised steel wire armour (SWA)

Operating Temperature

-20°C to +90°C

Maximum Conductor Temperature

90°C continuous

Standards Compliance

BS6724, BS EN/IEC 60228, BS EN/IEC 60332-1-2, BS EN/IEC 61034-2, BS EN/IEC 60754-1/2

Installation Method

Direct burial, underground ducts, indoor/outdoor fixed wiring

Approximate Overall Diameter

13.7mm

Weight per Metre

0.435kg

Minimum Bending Radius (Fixed)

6 x overall diameter

Voltage Drop (Three-phase AC)

10mV/A/m
