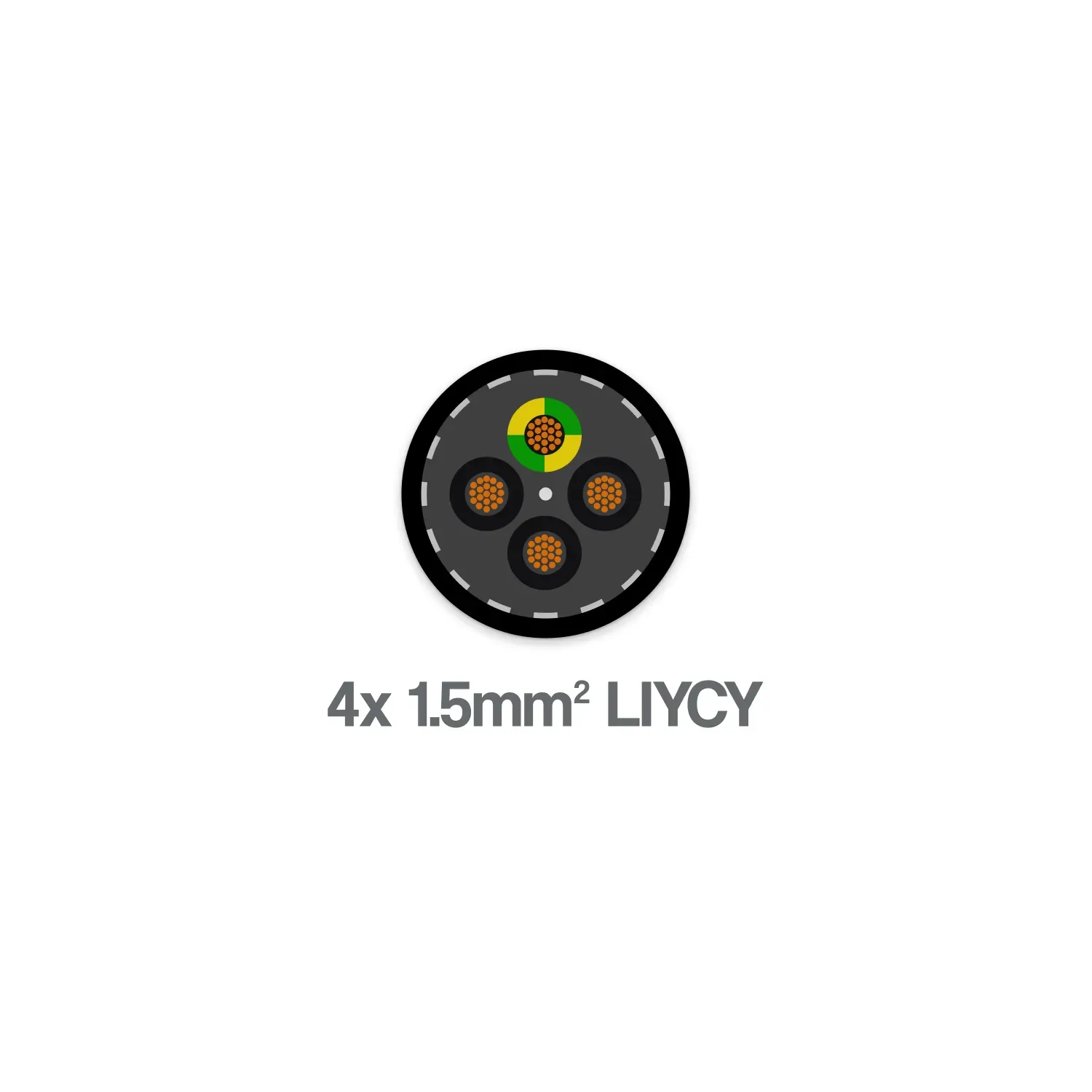

LIY-CY 4 Core 1.5mm2 LSZH Screened Flexible Control Cable 300 500V Grey

Photo is representative

LIY-CY 4 Core 1.5mm2 LSZH Screened Flexible Control Cable 300 500V Grey

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 415LIYCY
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £2.52

Gross price

£3.02

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

LIY-CY screened flexible control cable, 4 core 1.5mm2, LSZH insulation and sheath. Rated 300/500V to BS EN 50525-3-11 / VDE 0250.

Suited to EMC-sensitive control, measuring and signal circuits where fire safety is a factor — LSZH construction cuts toxic gas and smoke output in a fire. Tinned copper braid screen provides interference protection.

  • 3 black numbered cores + green/yellow earth
  • Tinned Cu wire braid screen, LSZH insulation and grey sheath
  • 24A current carrying capacity (in air at 30°C)
  • OD 7.70mm — gland size 20/16mm
  • Flex temp range -5°C to +70°C, static -20°C to +70°C
Specifications

Voltage Rating

300/500V

Cores

4

Conductor CSA

1.5mm²

Stranding

30/0.25mm

Core Identification

3 black numbered cores + earth (green/yellow)

Conductor Material

Plain annealed flexible copper

Insulation

Low Smoke Zero Halogen (LSZH)

Screen

Tinned copper wire braid

Sheath

Low Smoke Zero Halogen (LSZH)

Sheath Colour

Grey

Outside Diameter

7.70mm

Gland Size

20/16mm

Current Carrying Capacity

24A (in air at 30°C)

Temperature Rating (Flexing)

-5°C to +70°C

Temperature Rating (Static)

-20°C to +70°C

Conductor Resistance at 20°C

13.3 Ohm/km

Voltage Drop (3/4 core AC)

25 mV/A/m

Weight

104 kg/km

Standard

BS EN 50525-3-11 / VDE 0250
