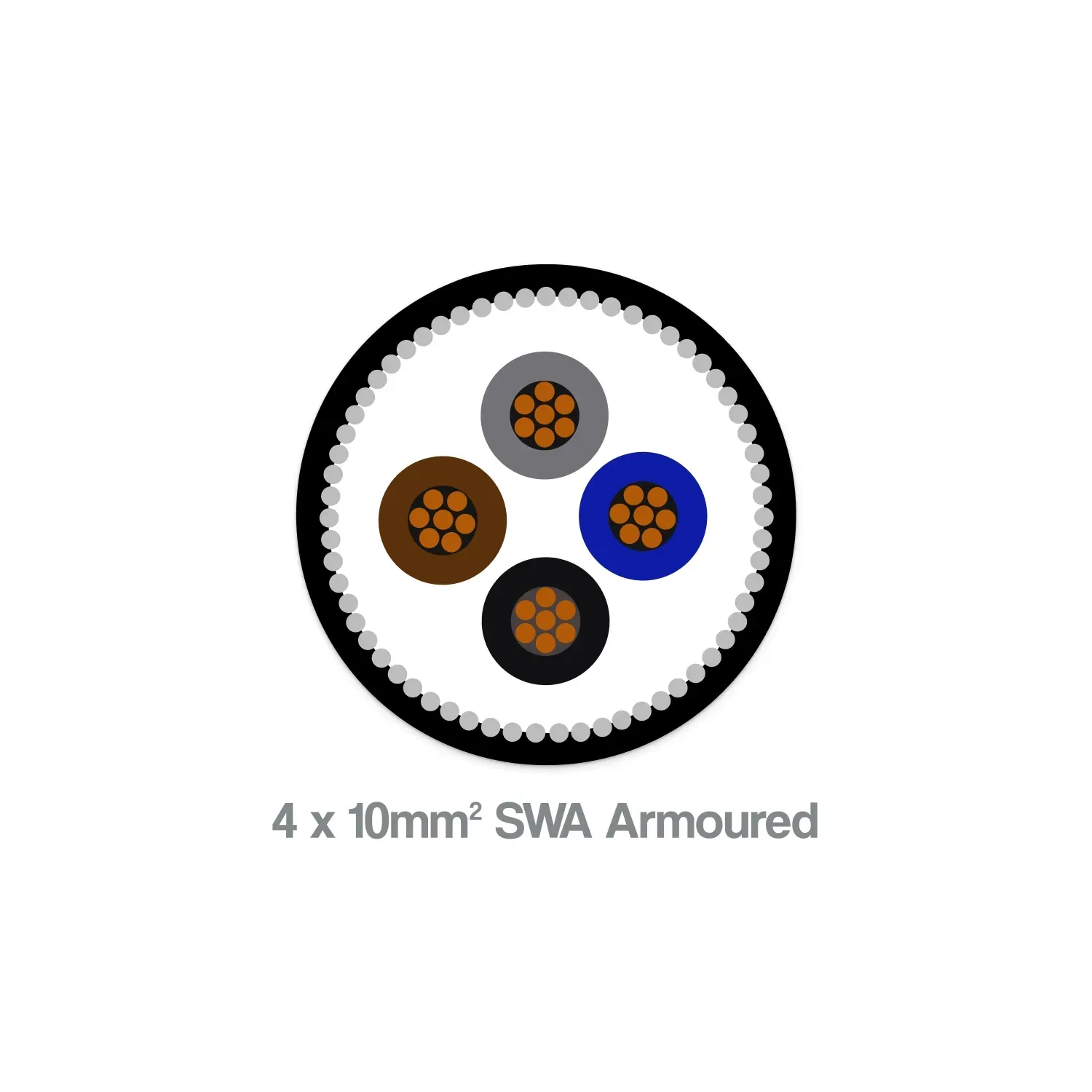

10mm² 4 core SWA LSZH armoured cable - sectional view

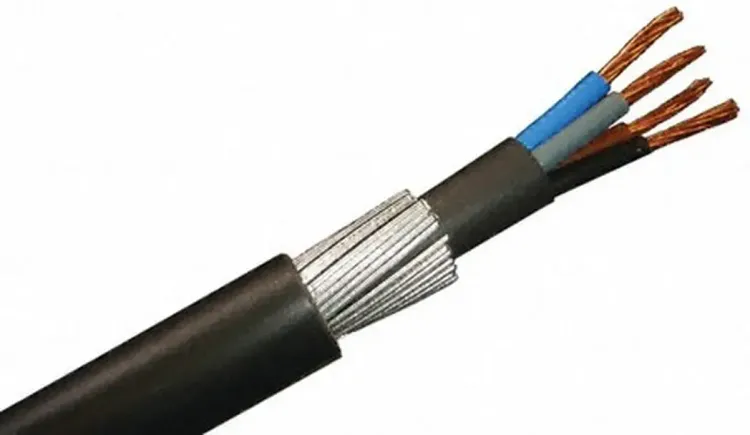

Photo is representative

10mm² 4 Core SWA Armoured Cable 600/1000V XLPE/LSZH

Product Information

Stock Code 410SWA
GTIN —
Stock status: In stock

priced per meter

Net price: £4.54

Gross price

£5.45

This item is not available to order online. Contact us to arrange supply.

This 10mm² 4 core SWA armoured cable is designed for low smoke, fire-safe power distribution in industrial and public buildings. Rated at 600/1000V, it features Class 2 stranded copper conductors, XLPE insulation, steel wire armour (SWA), and a black LSZH (Low Smoke Zero Halogen) outer sheath. Compliant with BS 6724 and BS EN/IEC 60228, it supports installation methods including direct burial, cable tray, and ducting where limited smoke and acid gas emission is critical. Operating temperature range: -20°C to +90°C. Suitable for fixed installation in environments where fire safety is essential, such as airports, datacentres, railway stations, and similar applications requiring robust armouring and superior fire performance.

Specifications

Conductor Cross-Sectional Area

10mm² Class 2 stranded copper

Core Count

4 core configuration (brown, black, grey, blue)

Voltage Rating (Uo/U)

600/1000V (0.6/1kV)

Insulation Type

XLPE (Cross Linked Polyethylene), 90°C maximum conductor temperature

Outer Sheath

Low Smoke Zero Halogen (LSZH), black

Armour

Galvanised steel wire armour (SWA)

Operating Temperature

-20°C to +90°C

Bending Radius (Fixed)

Minimum 6 x overall diameter

Standards Compliance

BS 6724, BS EN/IEC 60228, fire and smoke: BS EN/IEC 60332-1-2, 60332-3-24, 61034-2, 60754-1/2

Installation Method

Direct burial, cable tray, underground, indoor or outdoor, suitable for restricted escape routes

Voltage Drop

4.0mV/A/m (three-phase AC)

Overall Diameter

19.4mm (approx), weight 885kg/km

Fire Safety Classification

LSZH sheath limits smoke and acid gas emission for public buildings
