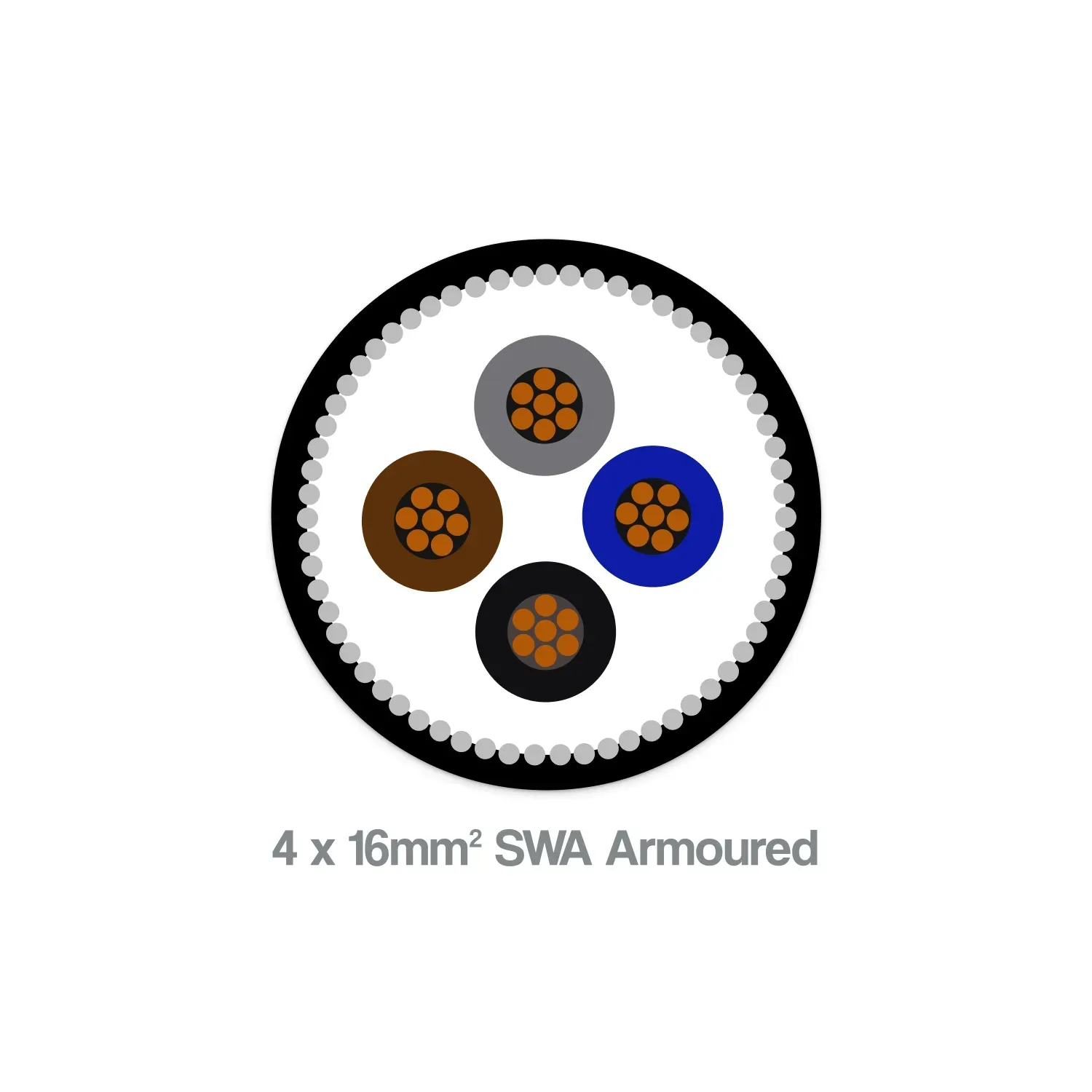

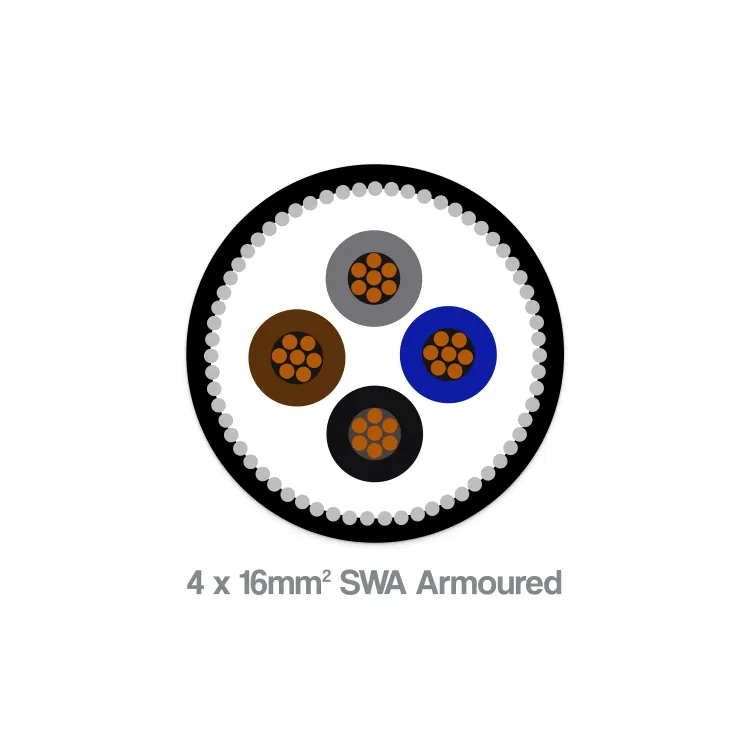

16mm² 4 core SWA armoured cable with LSZH sheath, showing steel wire armour cross-section

Photo is representative

16mm² 4 Core SWA Armoured Cable 600/1000V XLPE/LSZH (BS 6724)

Product Information

Stock Code 416SWA
GTIN —
Stock status: In stock

priced per meter

Net price: £7.25

Gross price

£8.70

This item is not available to order online. Contact us to arrange supply.

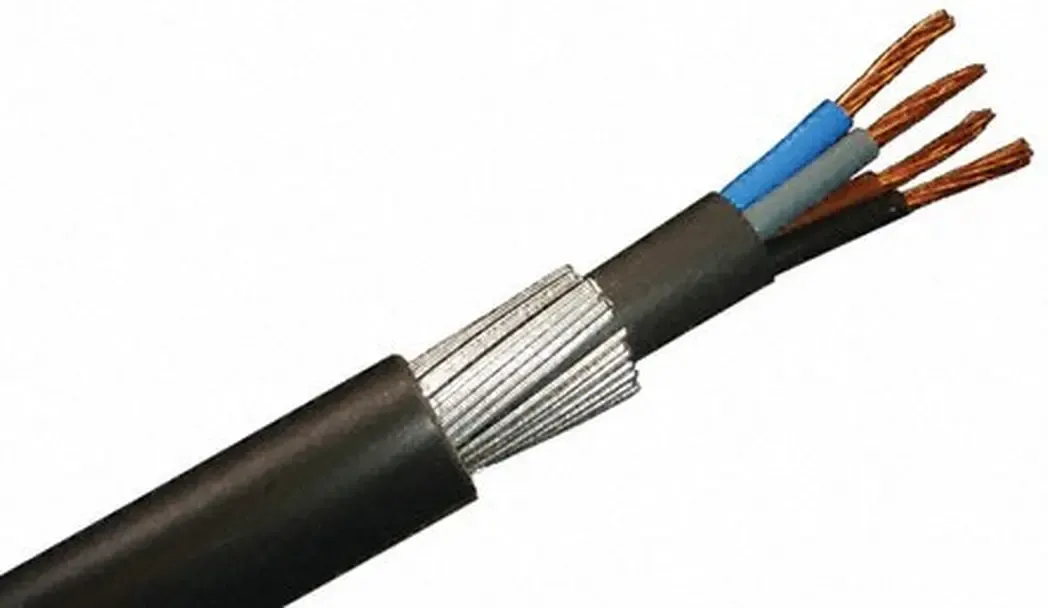

This 16mm² 4 core SWA armoured cable is designed for critical power and control circuits, rated at 600/1000V with XLPE insulation and robust Low Smoke Zero Halogen (LSZH) bedding and sheath. The cable features Class 2 stranded copper conductors and a galvanised steel wire armour (SWA), ensuring mechanical protection for direct burial and installation in challenging environments. Compliant with BS 6724 and BS EN/IEC 60228, and flame retardant to BS EN/IEC 60332-1-2 and -3-24 (cat C), it is suited for public buildings, transport hubs, and data centres where minimising smoke and toxic emissions is essential. Operating temperature range: -20°C to +90°C, suitable for fixed installations both indoor and outdoor, including cable ducting and underground.

Specifications

Conductor Cross-Sectional Area

16mm² Class 2 stranded copper

Core Count

4 core configuration (Brown, Black, Grey, Blue)

Voltage Rating (Uo/U)

600/1000V (0.6/1kV)

Insulation Type

XLPE (Cross-Linked Polyethylene)

Sheath/Bedding Type

Low Smoke Zero Halogen (LSZH) outer sheath and bedding, black colour

Armour Type

Galvanised steel wire armour (SWA) for mechanical protection

Operating Temperature Range

-20°C to +90°C (Fixed)

Maximum Conductor Temperature

90°C continuous

Minimum Bending Radius (Fixed)

6 × overall diameter

Overall Diameter

21.5mm approx.

Weight per Metre

1.14 kg/m (1140 kg/km)

Standards Compliance

BS 6724, BS EN/IEC 60228, BS EN/IEC 60332-1-2, BS EN/IEC 60332-3-24

Installation Method Suitability

Direct burial, underground, outdoor, ducting, trunking, public buildings

Fire/Smoke Performance

LSZH sheath—minimises smoke and toxic fumes, suitable for critical escape routes

Voltage Drop (Three-Phase AC)

2.5 mV/A/m
