4 core 35sqmm Armoured Cable

Photo is representative

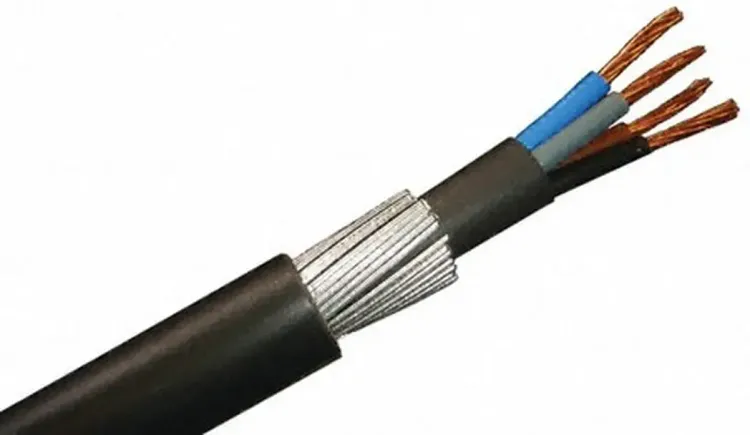

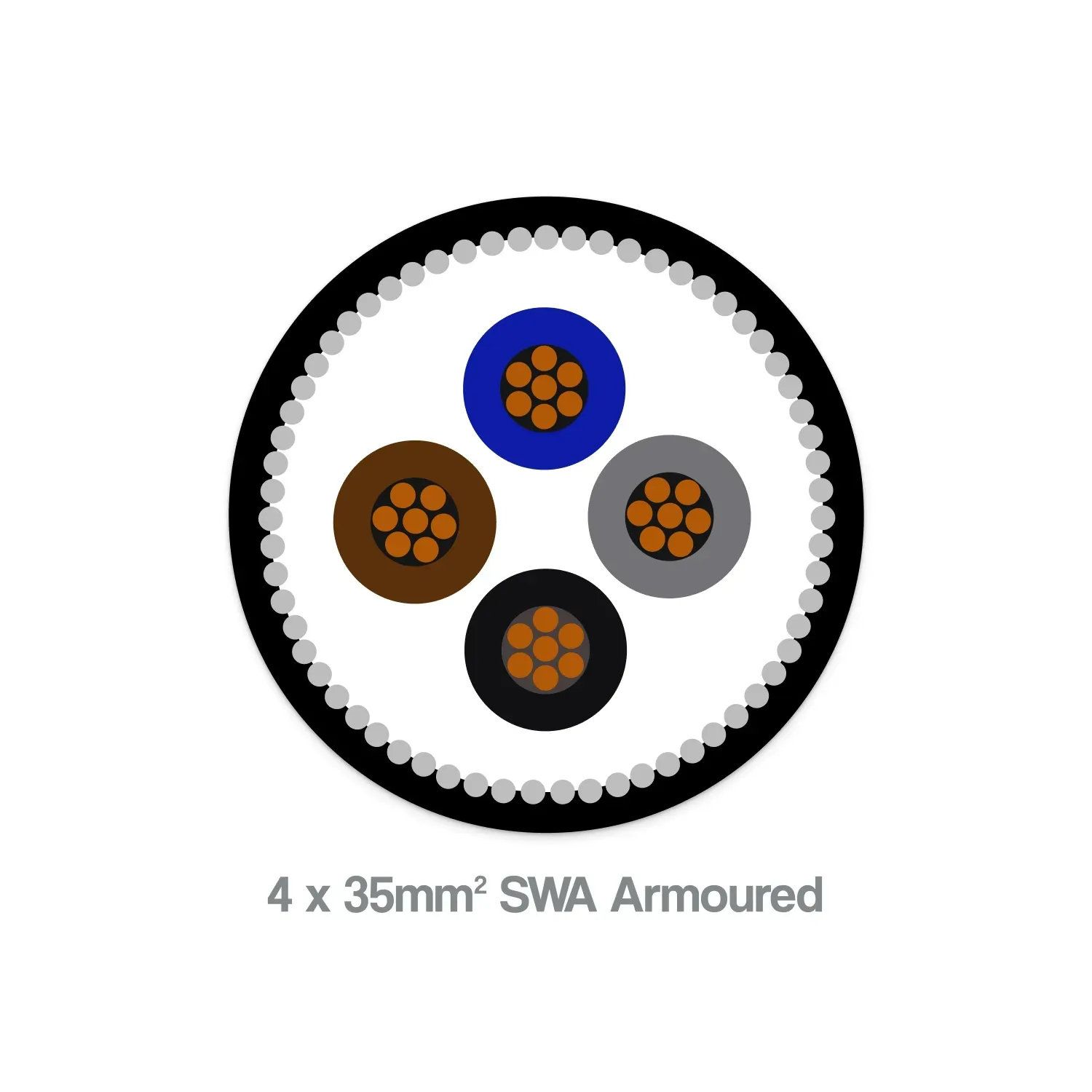

35mm² 4 Core SWA Armoured Cable 600/1000V XLPE/LSZH BS 6724 w. Blue

Product Information

Stock Code 435SWAB
GTIN
Stock status: In stock

priced per meter

Net price: £25.83

Gross price

£31.00

This item is not available to order online. Contact us to arrange supply.

This 35mm² 4 core SWA armoured cable is designed for mains power and control circuits, rated at 600/1000V with XLPE insulation, steel wire armour, and LSZH bedding and sheath. The cable features class 2 stranded copper conductors and complies with BS 6724, making it suitable for installations requiring low smoke zero halogen performance. Operating temperature range: -20°C to +90°C. This cable is suitable for direct burial, fixed indoor, outdoor, and underground applications where fire safety, low smoke, and reduced toxic emissions are critical. Its robust construction is ideal for public buildings, data centres, and environments where fire risk management is required.

Specifications

Conductor Cross-Sectional Area

35mm² class 2 stranded copper

Core Count

4 core configuration (Brown, Black, Blue, Green/Yellow)

Voltage Rating (Uo/U)

600/1000V

Insulation Type

Cross-linked polyethylene (XLPE)

Sheath/Jacket Type

Low Smoke Zero Halogen (LSZH)

Armour Type

Steel Wire Armour (SWA)

Operating Temperature Range

-20°C to +90°C

Maximum Conductor Temperature

90°C continuous

Minimum Bending Radius (Fixed)

6 x overall diameter

Overall Diameter

28.3mm (approximate)

Weight per Metre

1.93kg/m

Voltage Drop (3-phase AC)

1.35mV/A/m

Standards Compliance

BS 6724, BS EN/IEC 60228, BS EN/IEC 60332-1-2, BS EN/IEC 60332-3-24, BS EN/IEC 61034-2, BS EN/IEC 60754-1/2
