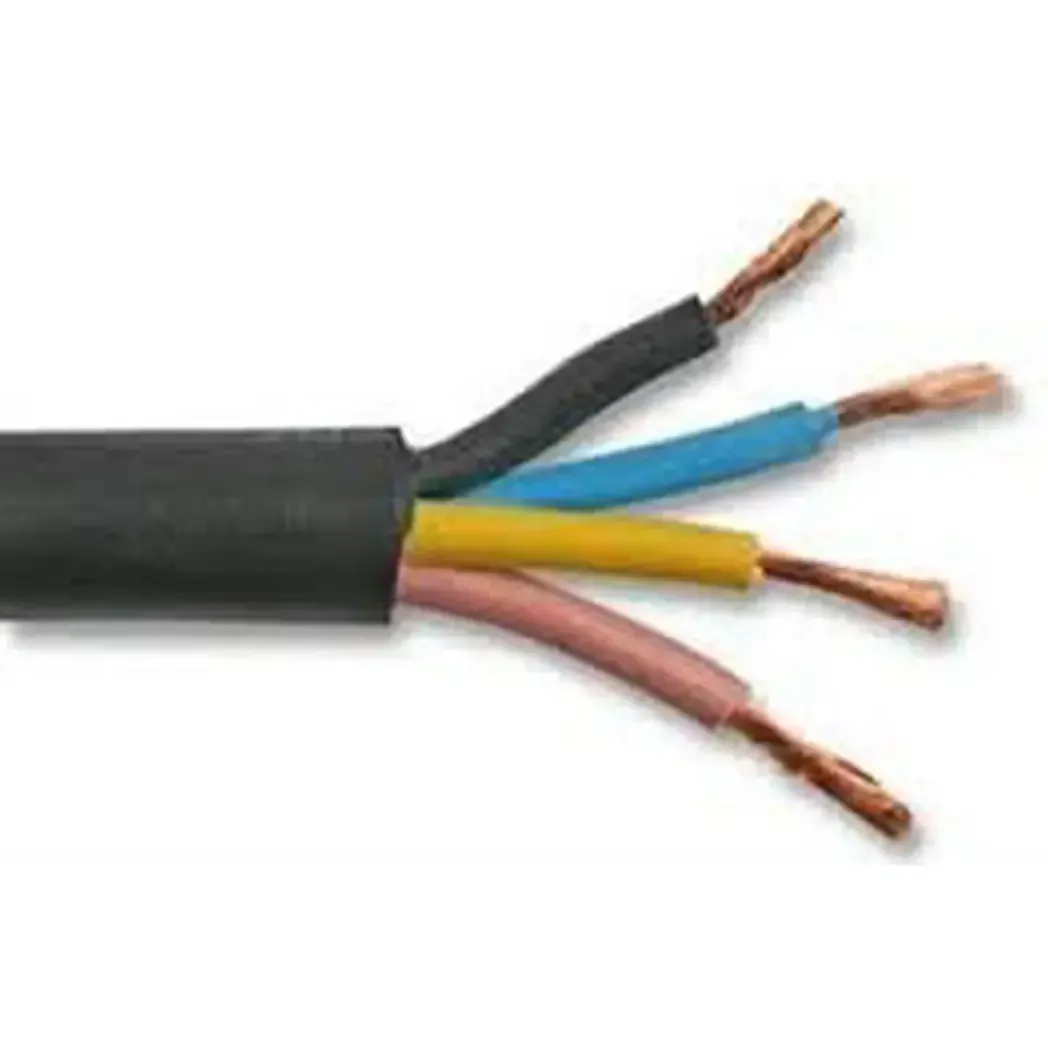

H07RN-F 4 Core 4mm Flexible Rubber Cable Black 0.6 1kV

Photo is representative

H07RN-F 4 Core 4mm Flexible Rubber Cable Black 0.6 1kV

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 44TRS7
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £5.15

Gross price

£6.18

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

4-core flexible rubber cable to H07RN-F. EPR insulated, CR sheathed, black outer. Built for work sites, mobile power supplies, ports and harbours, and harsh industrial environments — anywhere you need a tough flexible that can take punishment.

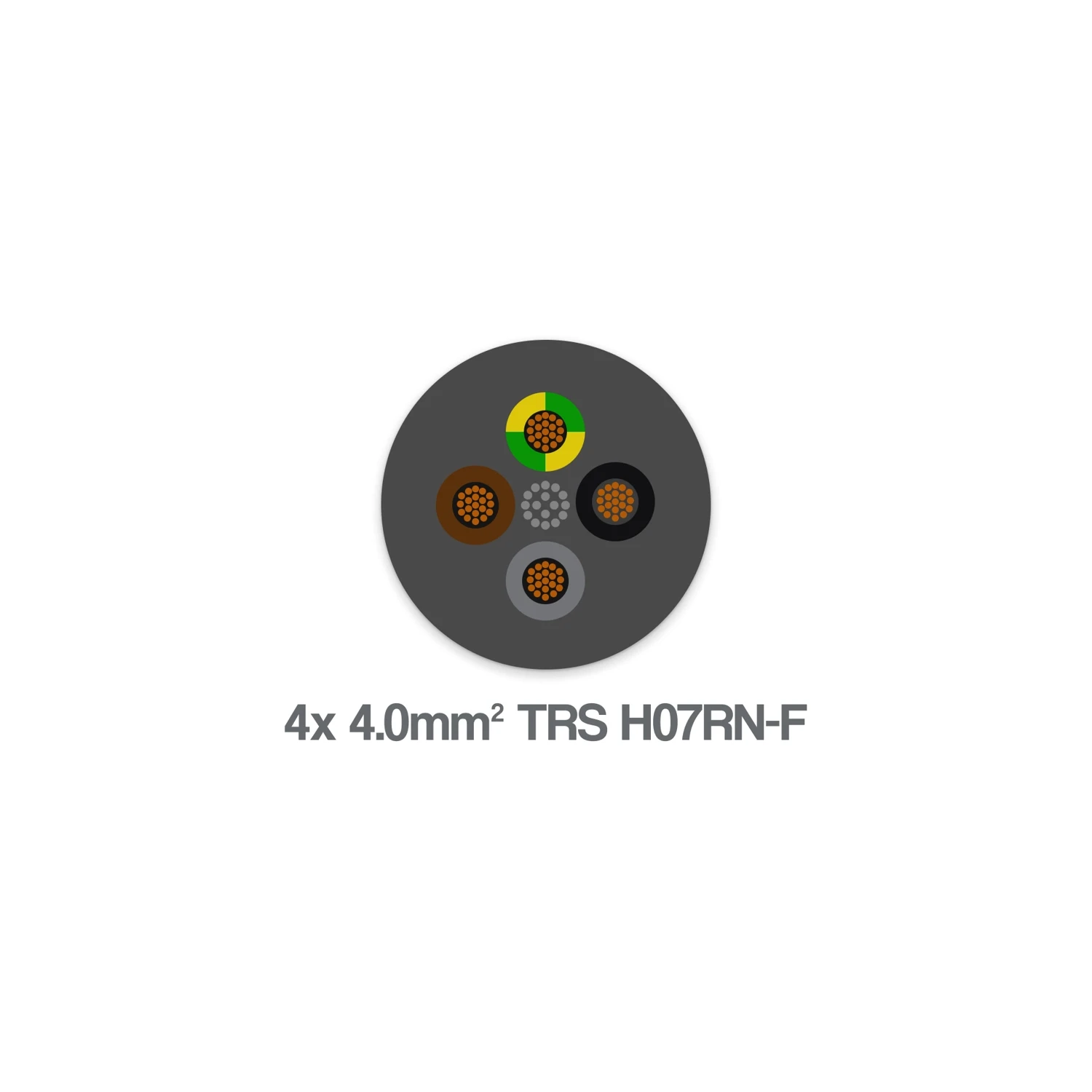

Class 5 stranded copper conductors, so it moves without fatiguing. Cores are brown, black, grey, and green/yellow.

  • 4 × 4mm² Class 5 stranded copper (56⁄0.30mm)
  • 0.6/1kV rated (fixed); 450/750V (flexing)
  • OD: 14.0–17.9mm
  • Temp range: –30°C to +90°C fixed; –15°C to +90°C flexing
  • Flame retardant to IEC/EN 60332-1-2
Specifications

Conductor Size

4mm²

Number of Cores

4

Conductor Type

Class 5 flexible stranded copper

Stranding

56/0.30mm

Voltage Rating (Fixed)

0.6/1kV

Voltage Rating (Flexing)

450/750V

Insulation Material

Ethylene Propylene Rubber (EPR)

Outer Sheath Material

Polychloroprene Rubber (CR)

Sheath Colour

Black

Core Colours

Brown, Black, Grey, Green/Yellow

Overall Diameter

14.0–17.9mm

Weight

395 kg/km

Bending Radius (Fixed)

4 × overall diameter

Bending Radius (Flexing)

6 × overall diameter

Temperature Range (Fixed)

–30°C to +90°C

Temperature Range (Flexing)

–15°C to +90°C

Flame Retardancy

IEC/EN 60332-1-2

Standards

BS EN 50525-2-21, BS EN/IEC 60332-1-2, BS EN/IEC 60228
