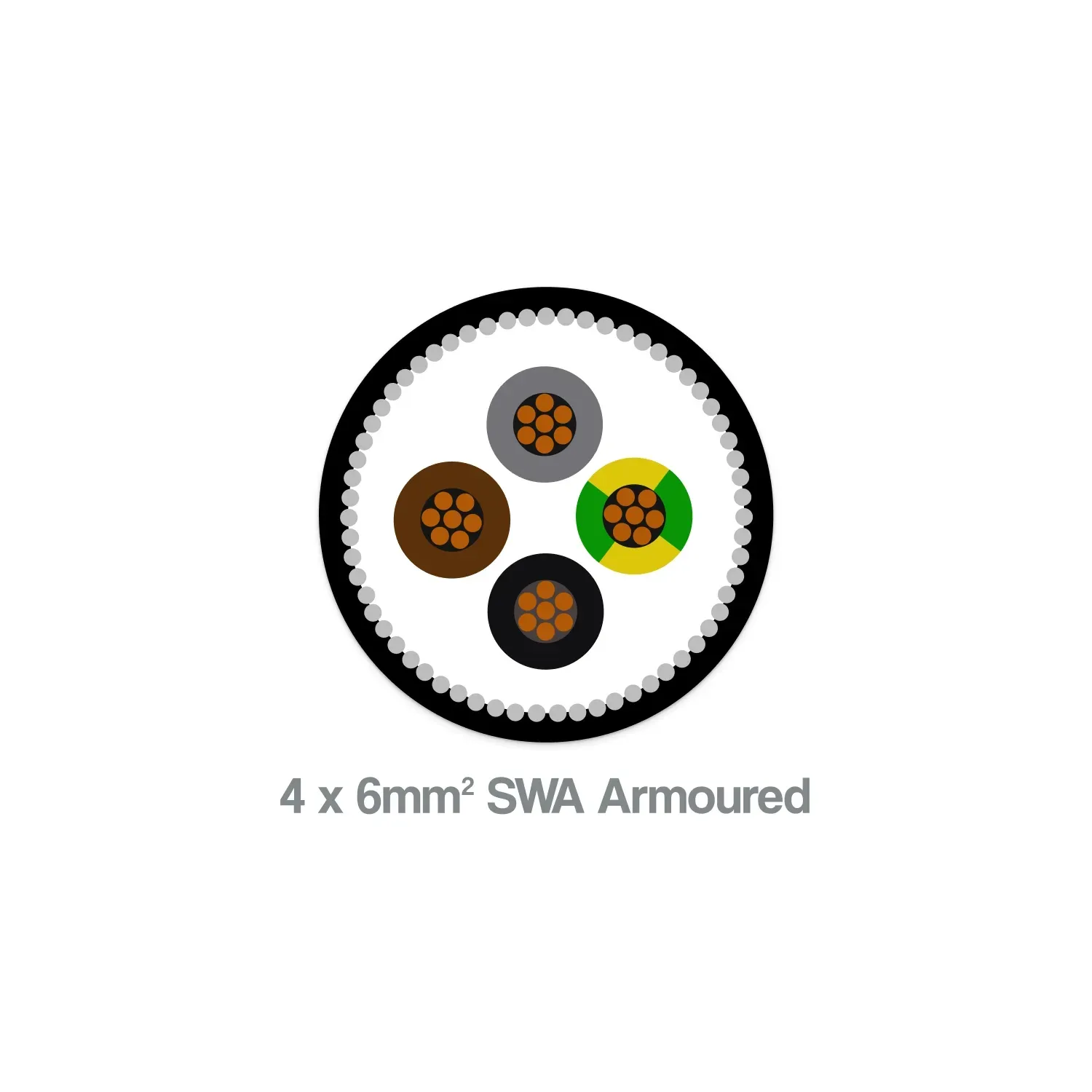

6mm² 4 core SWA armoured cable cross-section

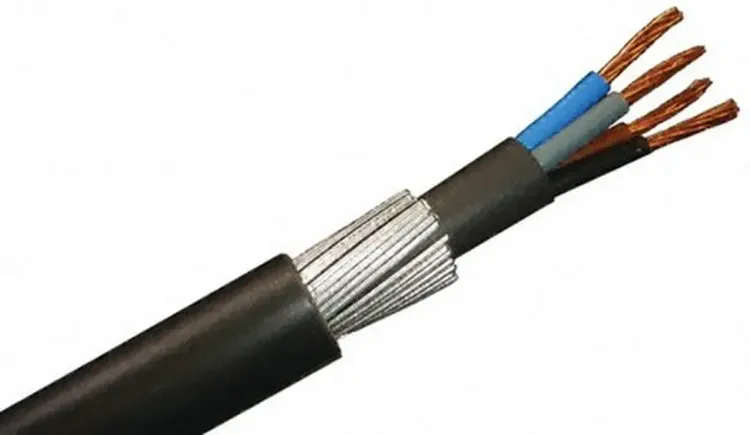

Photo is representative

6mm² 4 Core SWA Armoured Cable 600/1000V XLPE/LSZH

Product Information

Stock Code 46SWAE
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £5.58

Gross price

£6.69

This item is not available to order online. Contact us to arrange supply.

This 6mm² 4 core SWA armoured cable is designed for fixed mains distribution and control circuits, rated at 600/1000V with XLPE insulation and LSZH bedding and sheath. It features Class 2 stranded copper conductors and complies with BS 6724 and BS EN 60228 standards. The cable uses galvanised steel wire armour (SWA) for mechanical protection and is finished with a black LSZH outer sheath, supporting an operating temperature range of -20°C to +90°C (90°C max conductor). Suitable for direct burial, outdoor, ducted, and underground installation where fire safety, low smoke emission, and low toxicity are essential. Ideal for public buildings and data-sensitive areas to meet IS 10101:2020 fire safety requirements.

Specifications

Conductor Cross-Sectional Area

6mm² Class 2 stranded copper conductors

Core Count

4 core configuration (Brown, Black, Grey, Green/Yellow)

Voltage Rating (Uo/U)

600/1000V (0.6/1kV)

Insulation Type

XLPE (Cross-Linked Polyethylene), 90°C maximum conductor temperature

Sheath / Jacket Type

Low Smoke Zero Halogen (LSZH) bedding and black outer sheath

Armour Type

Galvanised Steel Wire Armour (SWA)

Operating Temperature

-20°C to +90°C (fixed installation)

Minimum Bending Radius (Fixed)

6 x overall diameter

Standards Compliance

BS 6724, BS EN/IEC 60228, BS EN/IEC 60332-1-2, BS EN/IEC 61034-2, BS EN/IEC 60754-1/2

Overall Cable Diameter

17.3mm (approximate)

Weight per Metre

670g per metre

Voltage Drop (3-phase AC)

6.8mV/A/m
