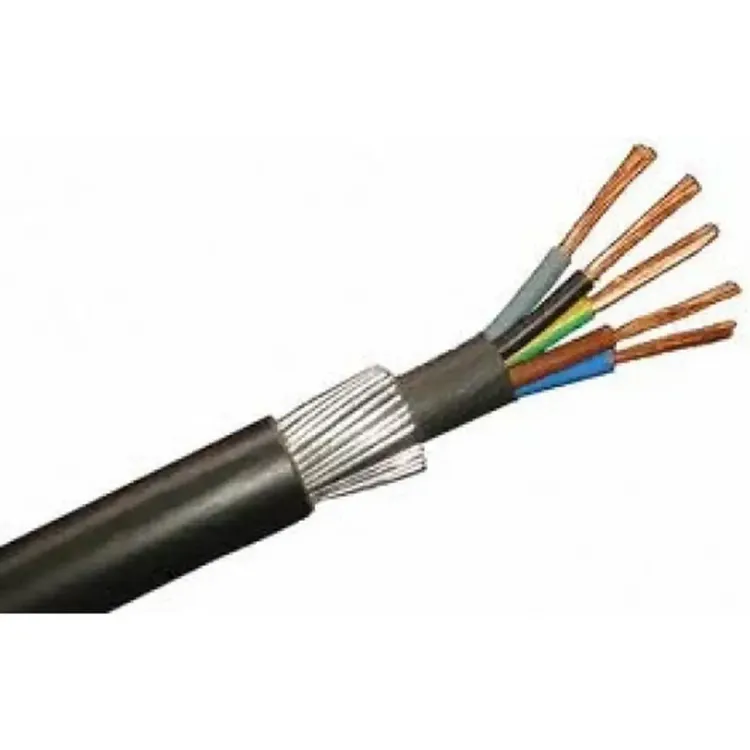

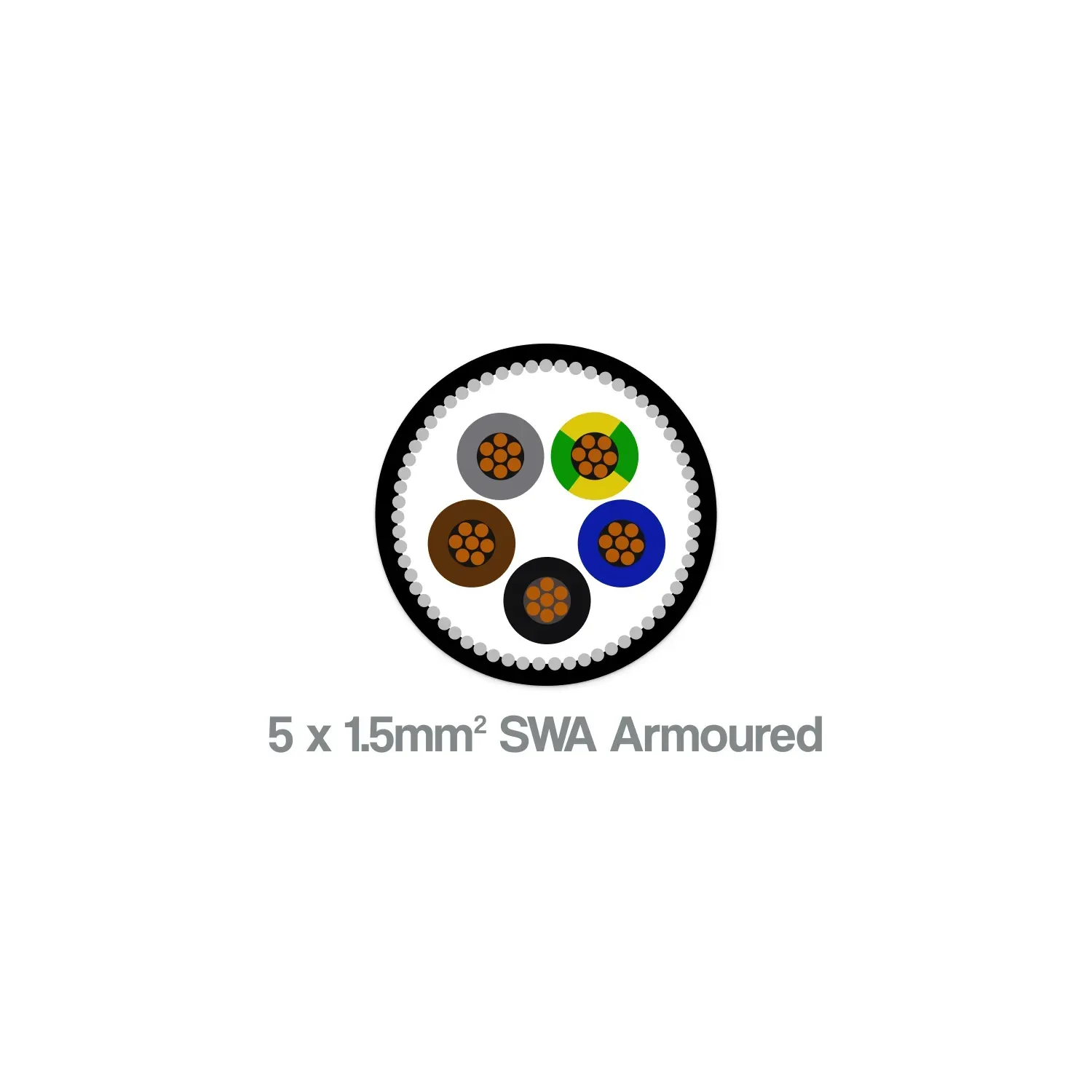

Close-up of 1.5mm² 5 core SWA armoured cable showing copper conductors and colour-coded insulation

Photo is representative

1.5mm² 5 Core SWA Armoured Cable 600/1000V XLPE/LSZH

Product Information

Stock Code 515SWA
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £2.40

Gross price

£2.88

This item is not available to order online. Contact us to arrange supply.

This 1.5mm² 5 core SWA armoured cable is designed for mains power and control applications, rated at 600/1000V with XLPE insulation and LSZH (Low Smoke Zero Halogen) inner bedding and outer sheath. The cable features Class 2 stranded copper conductors and complies with BS 6724 and BS EN/IEC 60228. Operating temperature range: -20°C to +90°C with 90°C maximum conductor temperature. Galvanised steel wire armour provides mechanical protection for direct burial, underground, outdoor, and public building installations where fire safety is essential. Suitable for installation in power networks, cable ducts, datacentres, airports, and environments requiring low smoke emission and reduced toxic fumes.

Specifications

Conductor Cross-Sectional Area

1.5mm² (Class 2 stranded copper)

Core Count

5 core configuration (Brown, Black, Grey, Blue, Green-Yellow)

Voltage Rating (Uo/U)

600/1000V (0.6/1kV)

Insulation Type

XLPE (Cross-Linked Polyethylene), 90°C max conductor

Sheath/Jacket Type

LSZH (Low Smoke Zero Halogen), black

Armour Type

Galvanised Steel Wire Armour (SWA)

Operating Temperature

-20°C to +90°C

Overall Cable Diameter

Approx. 12.9mm

Weight Per Metre

0.362kg/m

Minimum Bending Radius

6 x overall diameter (fixed installation)

Voltage Drop (3-phase AC)

27mV/A/m

Standards Compliance

BS 6724, BS EN/IEC 60228, BS EN/IEC 60332-1-2, BS EN/IEC 61034-2, BS EN/IEC 60754-1/2
