5 Core 1.5mm YY LSZH Flexible Control Cable Grey 300 500V

Photo is representative

5 Core 1.5mm YY LSZH Flexible Control Cable Grey 300 500V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 515YY
GTIN —
Stock status: Out of stock

priced per metre

More arriving soon

Net price: £2.09

Gross price

£2.51

5-core 1.5mm² YY control cable with LSZH insulation and sheath. Suited to conveyors, assembly lines, and production equipment where fire safety is a consideration — LSZH sheath limits smoke and toxic fume emission.

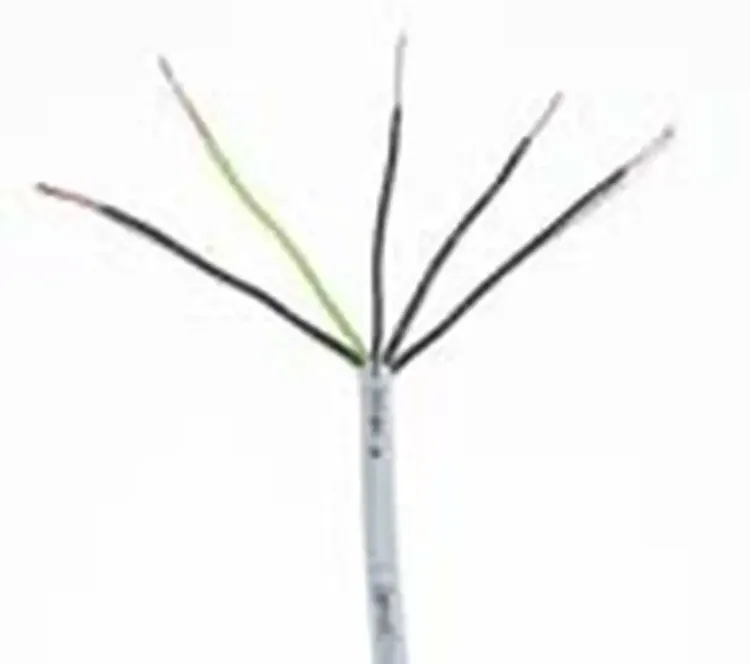

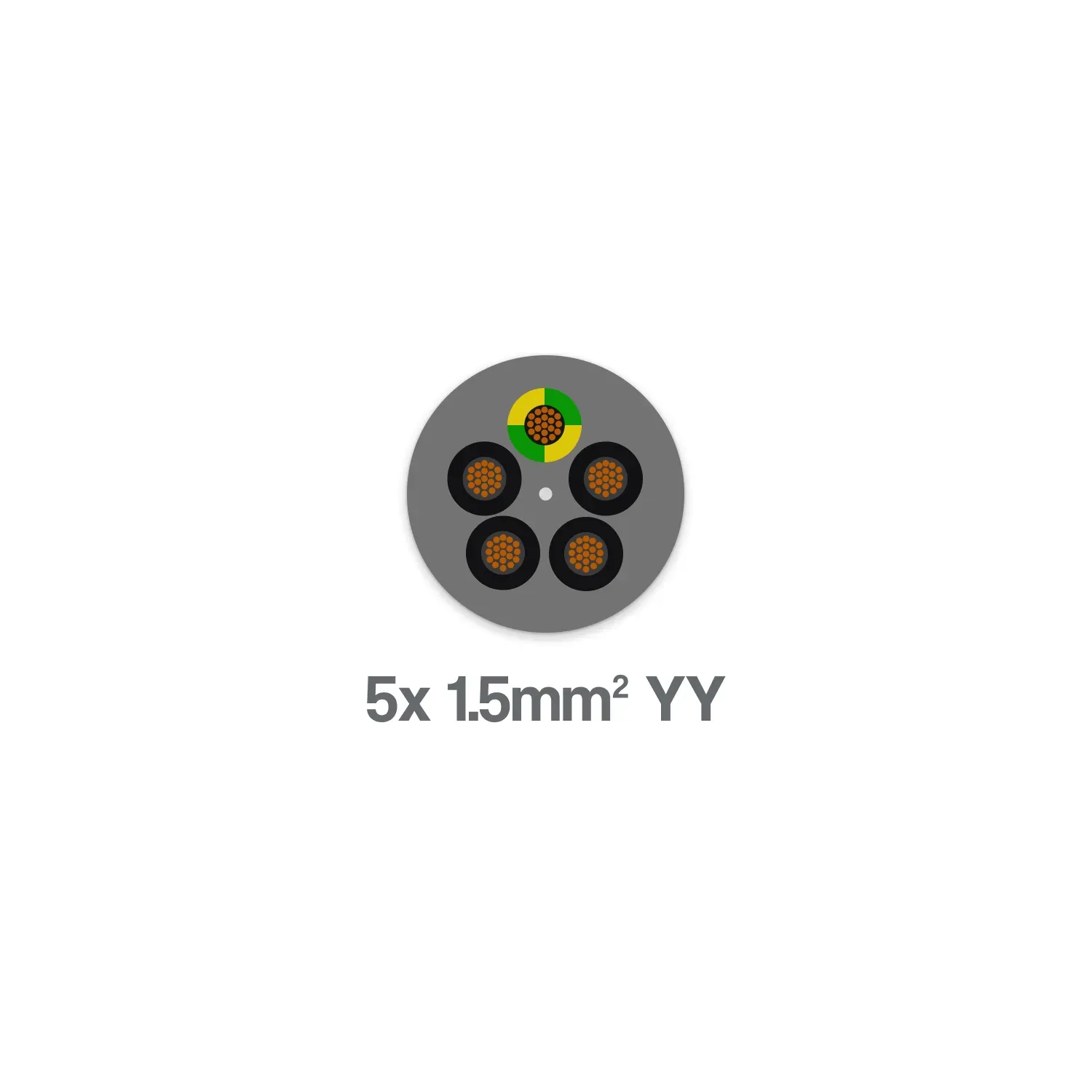

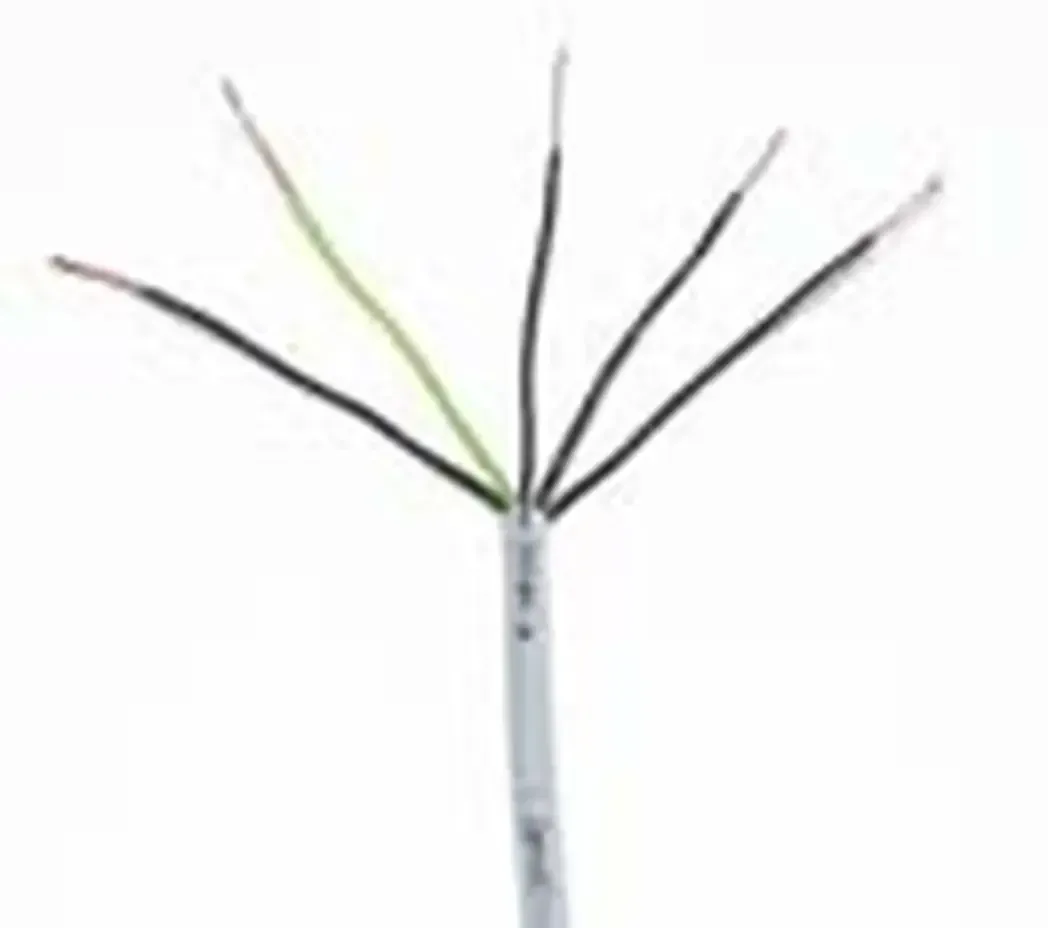

Core ID is 4 black numbered cores plus a green/yellow earth. Stranded plain annealed copper conductors (30⁄0.25mm) give good flexibility for control circuit runs.

  • 300/500V rated
  • 18.5A current capacity in air at 30°C, 15A in conduit
  • OD 8.10mm — recommended gland size 20S
  • Max conductor resistance: 13.3 Ω/km at 20°C
  • BS EN 50525-2-11
Specifications

Voltage Rating

300/500V

Conductor CSA

1.5mm²

Number of Cores

5

Stranding

30/0.25mm

Conductor Type

Plain Annealed Stranded Copper

Insulation

LSZH

Outer Sheath

LSZH

Sheath Colour

Grey

Core Identification

4 black numbered cores + Green/Yellow earth

Outside Diameter

8.10mm

Recommended Gland Size

20S mm

Current Capacity in Air at 30°C

18.5A

Current Capacity in Conduit at 30°C

15A

Max Conductor Resistance at 20°C

13.3 Ω/km

Voltage Drop (Single Phase AC)

29 mV/A/m

Voltage Drop (Three Phase AC)

25 mV/A/m

Temperature Range (Flexing)

-5°C to +70°C

Temperature Range (Static)

-20°C to +70°C

Weight

124 kg/km

Cable Standard

BS EN 50525-2-11
