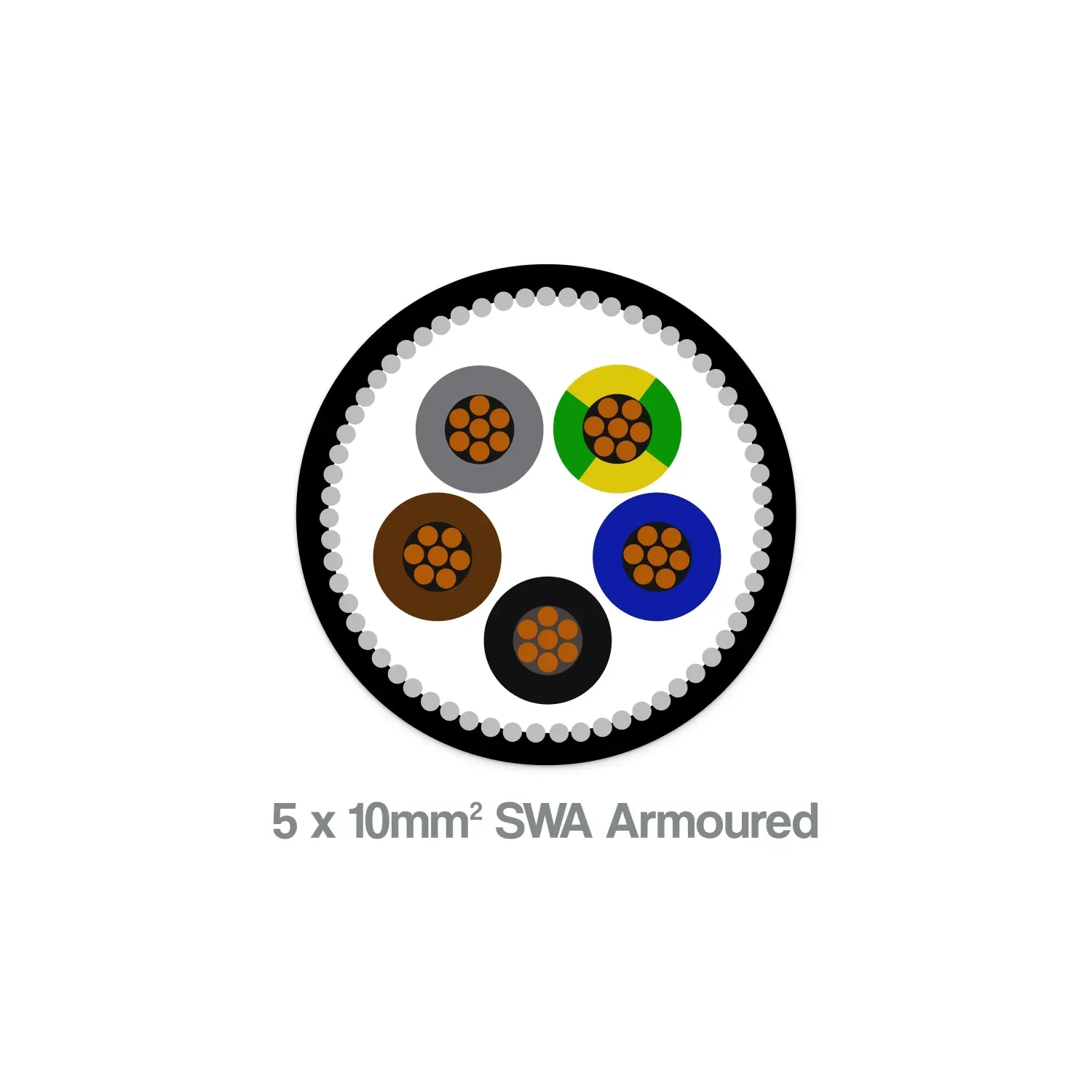

10mm² 5 core SWA armoured cable XLPE LSZH cross-section

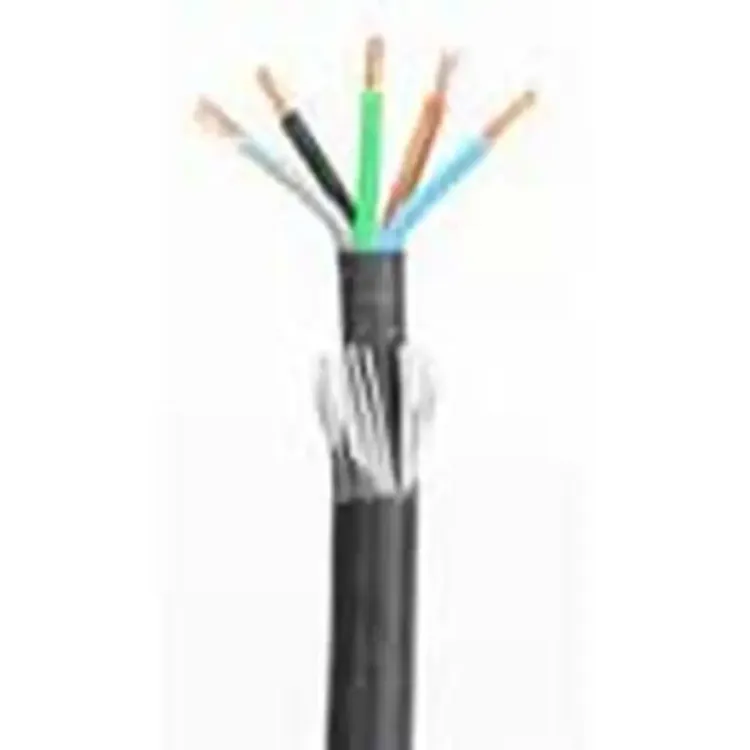

Photo is representative

10mm² 5 Core SWA Armoured Cable 600/1000V XLPE/LSZH

Product Information

Stock Code 510SWA
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £11.38

Gross price

£13.65

This item is not available to order online. Contact us to arrange supply.

This 10mm² 5 core SWA armoured cable is designed for power and control applications in fixed installations, rated at 600/1000V with XLPE insulation and Low Smoke Zero Halogen (LSZH) outer sheath. The cable features class 2 stranded copper conductors for improved flexibility and complies with BS6724 and BS EN/IEC 60228. Operating temperature range: -20°C to +90°C with a maximum conductor temperature of 90°C. Steel wire armour provides robust mechanical protection for underground, outdoor, and industrial installations where LSZH performance is essential. Suitable for installation where fire safety and low emissions of smoke and corrosive gases are critical, such as public buildings, datacentres, and transport hubs.

Specifications

Conductor Cross-Sectional Area

10mm² Class 2 stranded copper conductors (7/1.35mm) for power distribution

Core Configuration

5 core with standard colour identification (brown, black, grey, blue, green/yellow)

Voltage Rating (Uo/U)

600/1000V

Insulation Type

XLPE (Cross Linked Polyethylene) for 90°C maximum conductor temperature

Sheath/Jacket Type

LSZH (Low Smoke Zero Halogen) black outer sheath, suitable for fire-critical environments

Armour Type

Galvanised Steel Wire Armour (SWA) for mechanical protection and suitability for direct burial

Operating Temperature Range

-20°C to +90°C (fixed installation)

Minimum Bending Radius (Fixed)

6 x overall diameter (approx. 126mm)

Overall Diameter

20.9mm

Weight Per Metre

1.106kg/m

Voltage Drop (Three-phase AC)

4.0mV/A/m

Standards Compliance

BS6724, BS EN/IEC 60228, BS EN/IEC 60332-1-2, BS EN/IEC 61034-2, BS EN/IEC 60754-1/2

Installation Method

Suitable for direct burial, tray, cable ducting, indoor and outdoor fixed wiring in public, commercial, and industrial premises

Fire/Smoke Compliance

LSZH sheath: low smoke, low toxic and corrosive gas emissions
