H07RN-F TRS 5 Core 10mm² Flexible Rubber Cable Black 0.6 1kV

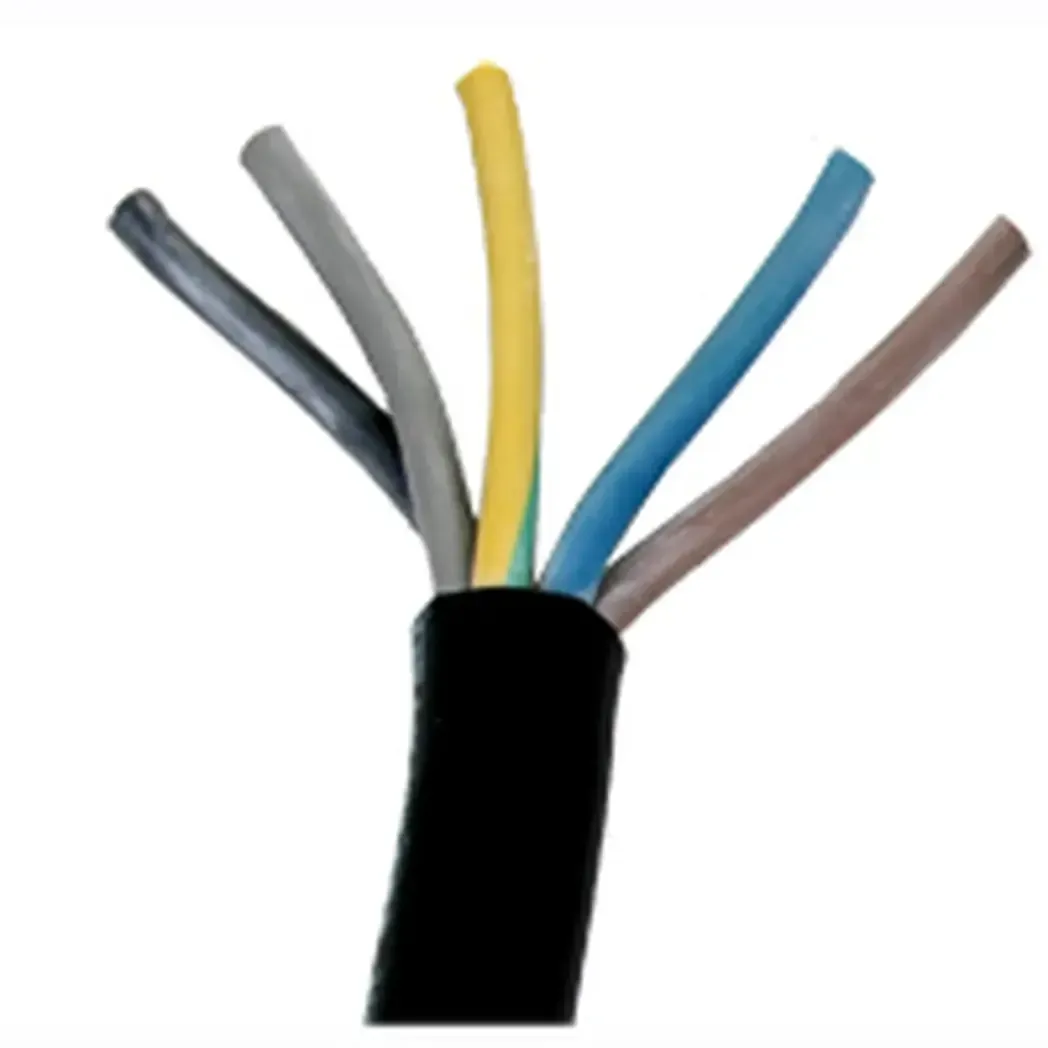

Photo is representative

H07RN-F TRS 5 Core 10mm² Flexible Rubber Cable Black 0.6 1kV

Product Information

Stock Code 510TRS7
GTIN —
Stock status: In stock

priced per meter

Net price: £16.25

Gross price

£19.50

This item is not available to order online. Contact us to arrange supply.

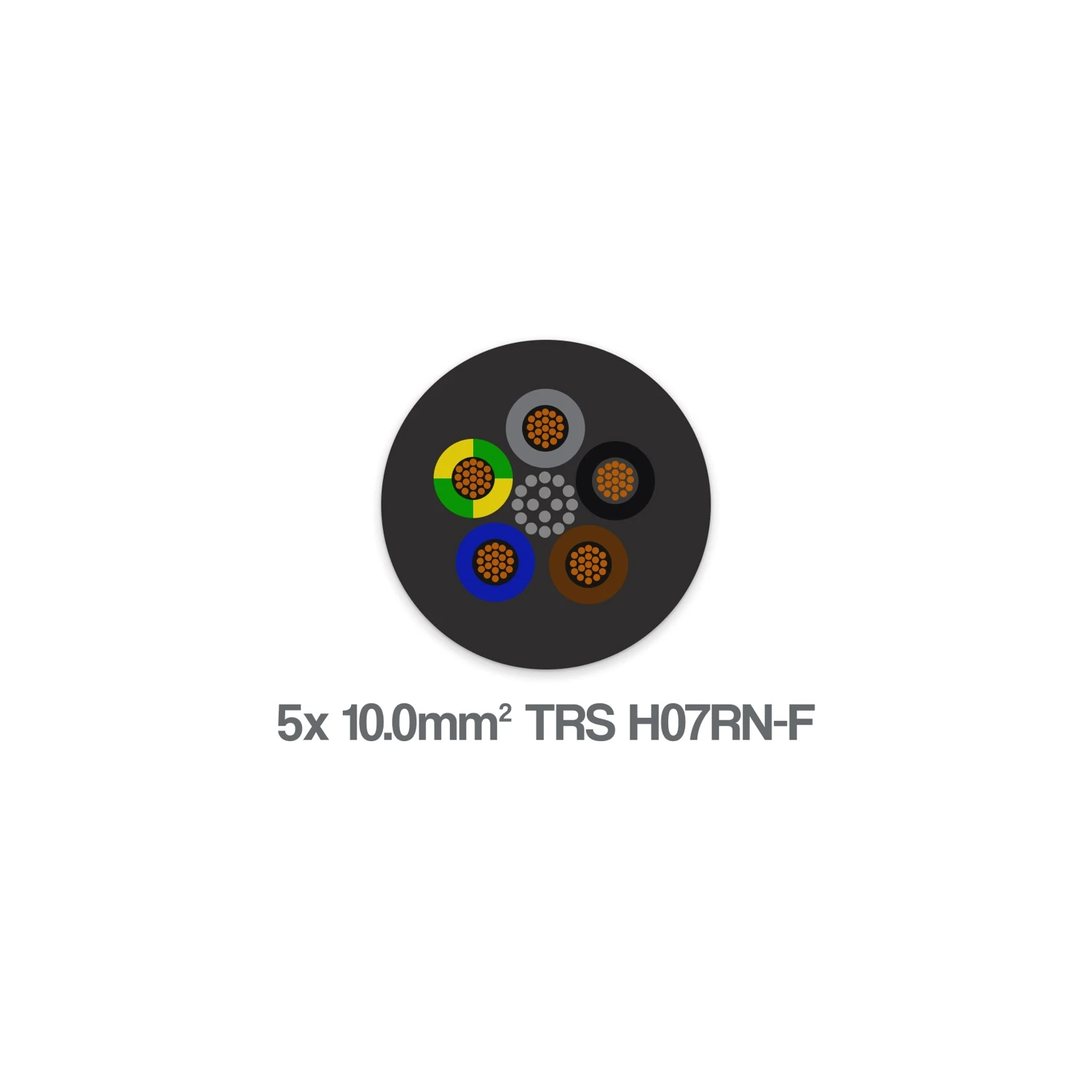

H07RN-F flexible rubber cable, 5 core 10mm². EPR insulated, polychloroprene (CR) outer sheath, black. Class 5 flexible stranded copper conductors, 80⁄0.40 stranding.

Suited to work sites, mobile power supplies, ports and harbours, water treatment, sewage and drains, and harsh industrial environments where mechanical stress and temperature extremes are a factor.

  • Voltage rating: 0.6/1kV (fixed), 450/750V (flexing)
  • Operating temp: -30°C to +90°C fixed, -15°C to +90°C flexing
  • OD: 22.9mm–29.1mm
  • Flame retardant to IEC/EN 60332-1-2
Specifications

Conductor Size

10mm²

Number of Cores

5

Stranding

80/0.40

Conductor Type

Class 5 flexible stranded copper

Insulation Material

Ethylene Propylene Rubber (EPR)

Outer Sheath Material

Polychloroprene Rubber (CR)

Sheath Colour

Black

Voltage Rating (Fixed)

0.6/1kV

Voltage Rating (Flexing)

450/750V

Operating Temperature (Fixed)

-30°C to +90°C

Operating Temperature (Flexing)

-15°C to +90°C

Min Bending Radius (Fixed)

4 x overall diameter

Min Bending Radius (Flexing)

6 x overall diameter

Mean Overall Diameter

22.9mm – 29.1mm

Weight

1300kg/km

Flame Retardancy

IEC/EN 60332-1-2

Standards

BS EN 50525-2-21, BS EN/IEC 60332-1-2, BS EN/IEC 60228
