SYL-Flex 5 Core 25mm² 300 500V Screened Galvanised Steel Braid Clear PVC Sheath

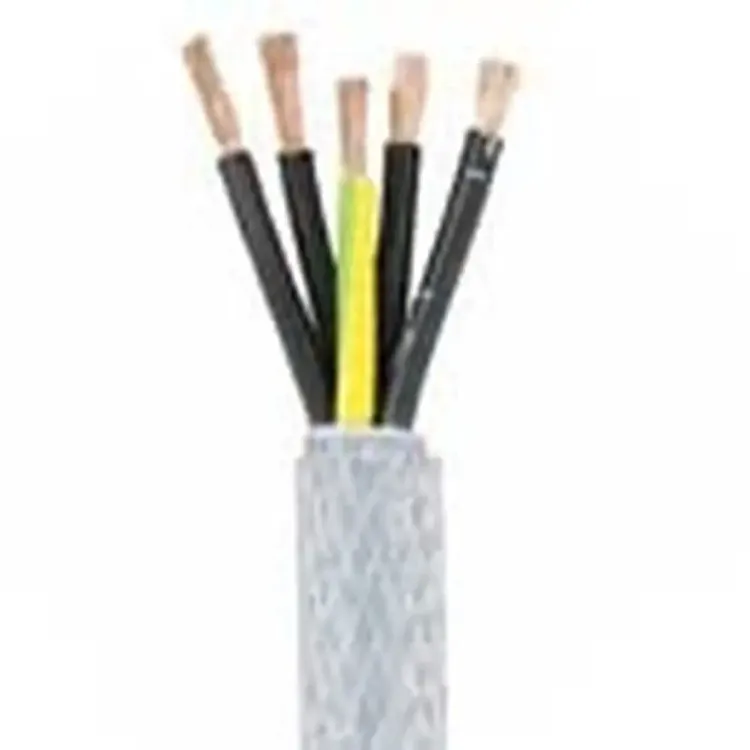

Photo is representative

SYL-Flex 5 Core 25mm² 300 500V Screened Galvanised Steel Braid Clear PVC Sheath

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 525SYL
GTIN
Stock status: Out of stock

priced per meter

Net price: £35.59

Gross price

£42.71

5 core 25mm² SYL-Flex screened cable for interconnecting fixed and mobile equipment — conveyors, assembly lines, production lines, machine tool manufacture. Galvanised steel wire braid armour gives mechanical protection. Suitable for indoor and outdoor use when protected from direct sunlight.

Transparent PVC outer sheath. Plain annealed stranded copper conductors (1960.40mm), PVC insulation and bedding throughout.

  • 108A current capacity (30°C, in air)
  • 31.2mm OD — size up your glands accordingly (40mm gland size)
  • Static temp range: -20°C to +80°C / Flexing: -5°C to +70°C

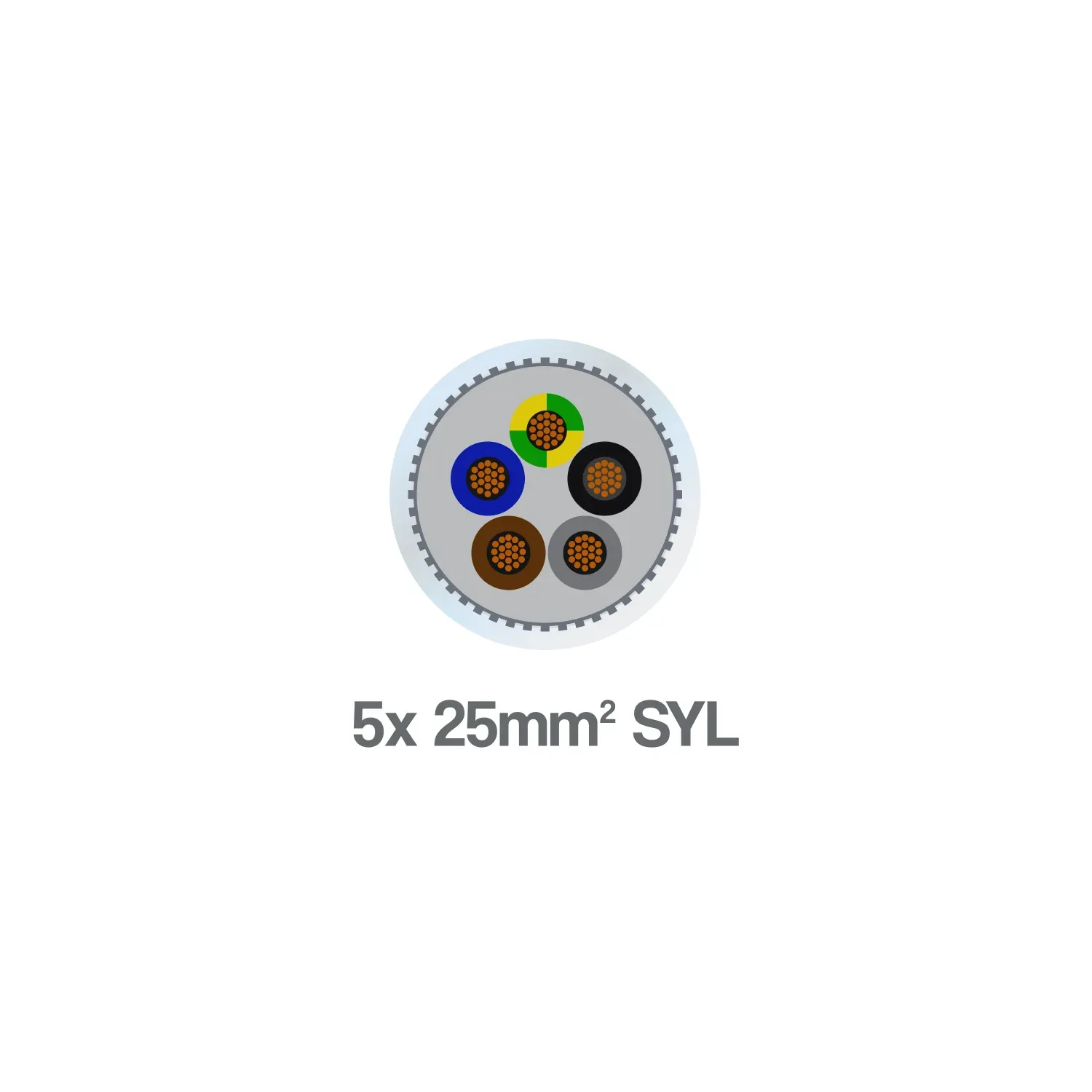

  • Cores: Brown, Black, Grey, Blue, Green/Yellow
Specifications

Number of Cores

5

Conductor Size

25mm²

Conductor Type

Plain Annealed Stranded Copper

Stranding

196/0.40mm

Insulation

PVC

Bedding

PVC

Armouring

Galvanised Steel Wire Braid

Sheath

Transparent PVC

Voltage Rating

300/500V

Current Capacity (30°C, in air)

108A

Max Conductor Resistance at 20°C

0.78 Ω/km

Outside Diameter

31.2mm

Gland Size

40mm

Weight

2007 kg/km

Operating Temperature (Static)

-20°C to +80°C

Operating Temperature (Flexing)

-5°C to +70°C

Core Identification

Brown, Black, Grey, Blue, Green/Yellow

Standard

BS EN 50525-2-11 / VDE 0250
