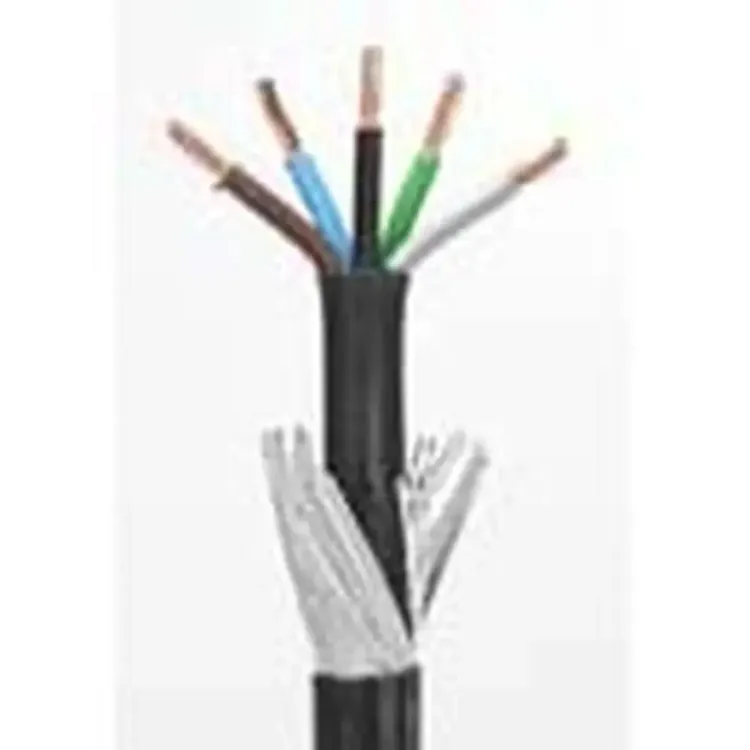

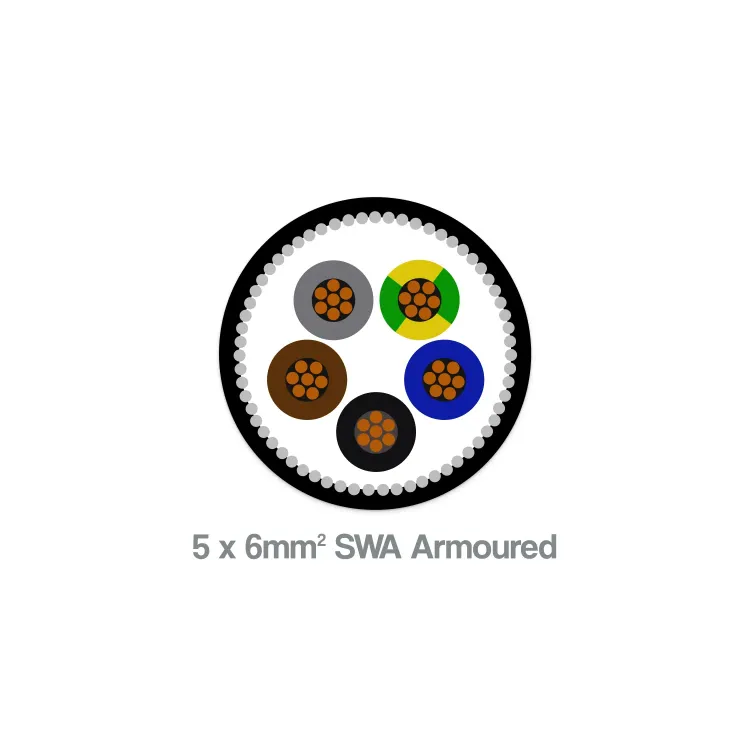

6mm² 5 core SWA LSZH armoured cable with XLPE insulation, black sheath

Photo is representative

6mm² 5 Core SWA Armoured Cable 600/1000V XLPE/LSZH

Product Information

Stock Code 56SWA
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £7.30

Gross price

£8.76

This item is not available to order online. Contact us to arrange supply.

This 6mm² 5 core SWA armoured cable is designed for low smoke, fire-safe power and control applications, rated at 600/1000V and insulated with XLPE. Each core is a Class 2 stranded copper conductor, colour-coded brown, black, grey, blue, and green/yellow, with a steel wire armour and black LSZH sheath. The cable complies with BS6724 and associated standards, offering a temperature range of -20°C to +90°C and a voltage drop of 6.8mV/A/m (three-phase AC). Suitable for indoor, outdoor, direct burial, and duct installations, especially where enhanced fire safety is required, such as in public buildings and computer rooms.

Specifications

Conductor Cross-Sectional Area

6mm²

Core Count

5 cores (brown, black, grey, blue, green/yellow)

Voltage Rating (Uo/U)

600/1000V

Conductor Material / Class

Class 2 stranded copper

Insulation

XLPE (Cross Linked Polyethylene)

Sheath/Jacket Type

Low Smoke Zero Halogen (LSZH), black

Armour Type

Galvanised Steel Wire Armour (SWA)

Operating Temperature

-20°C to +90°C

Maximum Conductor Temperature

90°C

Standards Compliance

BS6724, BS EN/IEC 60228, BS EN/IEC 60332-1-2, BS EN/IEC 60332-3-24, BS EN/IEC 61034-2, BS EN/IEC 60754-1/2

Voltage Drop (3-Phase AC)

6.8mV/A/m

Approximate Overall Diameter

18.4mm

Weight per Metre

0.823kg (823kg/km)
