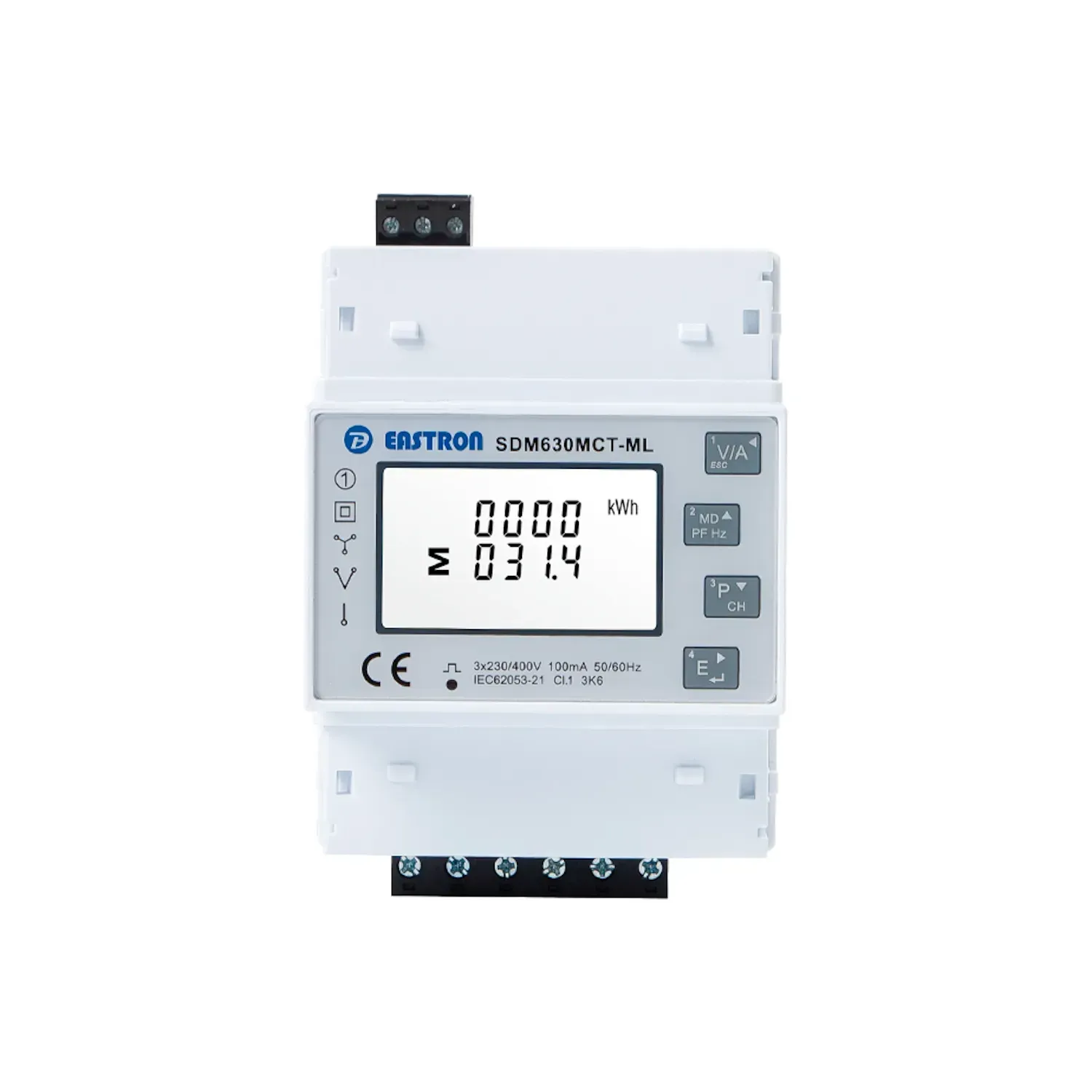

Quad Load Three Phase Multi-function RS485 Energy Meter for Data Center Metering

Name: Quad Load Three Phase Multi-function RS485 Energy Meter for Data Center Metering
SKU: SDM630MCTML
Availability: InStock

The quad load three phase multi-function RS485 energy meter is designed for data center metering, supporting 1p2w to 3p4w grids and monitoring up to 4 three-phase or 12 single-phase loads. Featuring true RMS measurement, independently programmable CT ratios, and plug-in RJ12 connectors for quick installation, it provides essential electrical parameters. This meter ensures fast, accurate metering and communication via RS485 Modbus, making it ideal for professional applications.

Stock Code SDM630MCTML

MPN SDM630MCT-RJ

GTIN —

1 available

£183.85

incl. VAT, 20% priced individually

Product Features

Load Monitoring	Supports 4x three phase or 12x single phase loads
Electrical Parameters	Voltage, current, power, power factor, THD, frequency, demand, energy
Communication	RS485 Modbus RTU, RJ45 for Modbus, Modbus TCP available
Programmable CT Ratios	Independently set CT ratios, secondary 100mA/100mV, primary 1-9999A
Measurement Accuracy	Power and current accuracy 0.5% of range
Plug-in Connectors	RJ12 socket for fast, error-reduction installation
Communication Speed	1200bps–38400bps, address range 1~247
Transmission Distance	Up to 1000m
