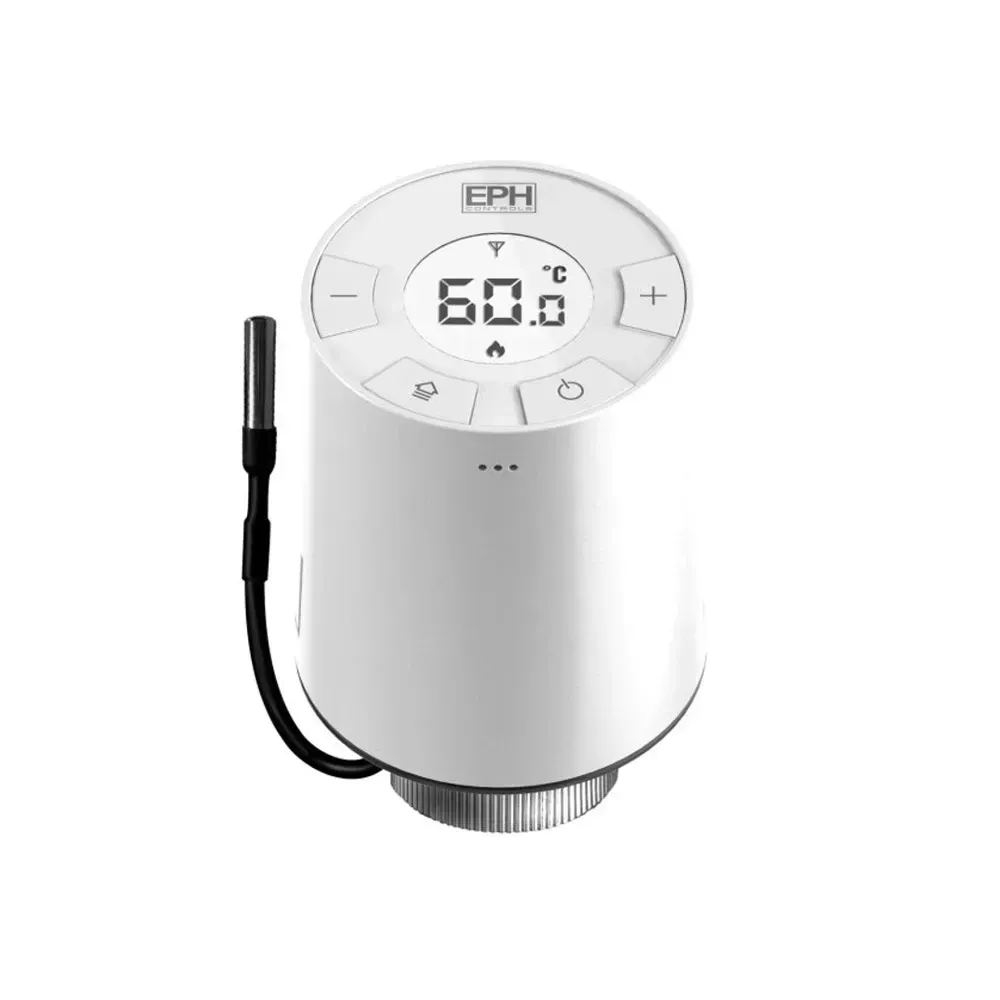

EPH Smart Cylinder Thermostat
The EPH Smart Cylinder Thermostat, eTRV-HW, is a wireless device designed for controlling hot water cylinders. It communicates via RF frequency with an RF16 controller to integrate a hot water zone with the Smart Radiator System, making it suitable for both new and retrofit installations. The device requires 2 x AA Li-FeS2 batteries for power supply, has a temperature control range of 5 to 90 deg C, and comes with features such as a temperature sensor, backlight, and IP20 rating.
Product Features
-
Backlight
White
-
IP Rating
IP20
-
Dimensions
80 x 52mm
-
Power Supply
2 x AA Li-FeS2 Batteries
-
Standby Current
< 50uA
-
Temperature Sensor
NTC 10K Ohm @ 25 deg C
-
Ambient Temperature
0 - 45 deg C
-
Battery Replacement
240 Days Approx.
-
Temp. Control Range
5 - 90 deg C
-
Ambient Admissible Humidity
5 - 95% RH
-
mpn
ETRV-HW
