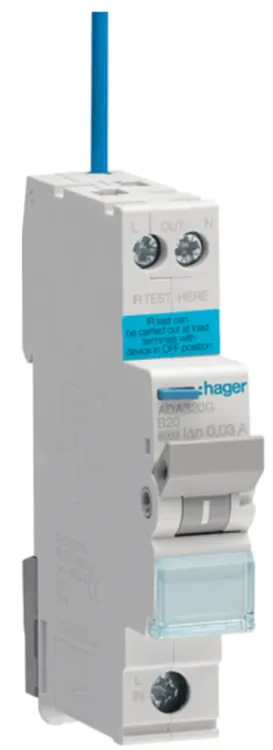

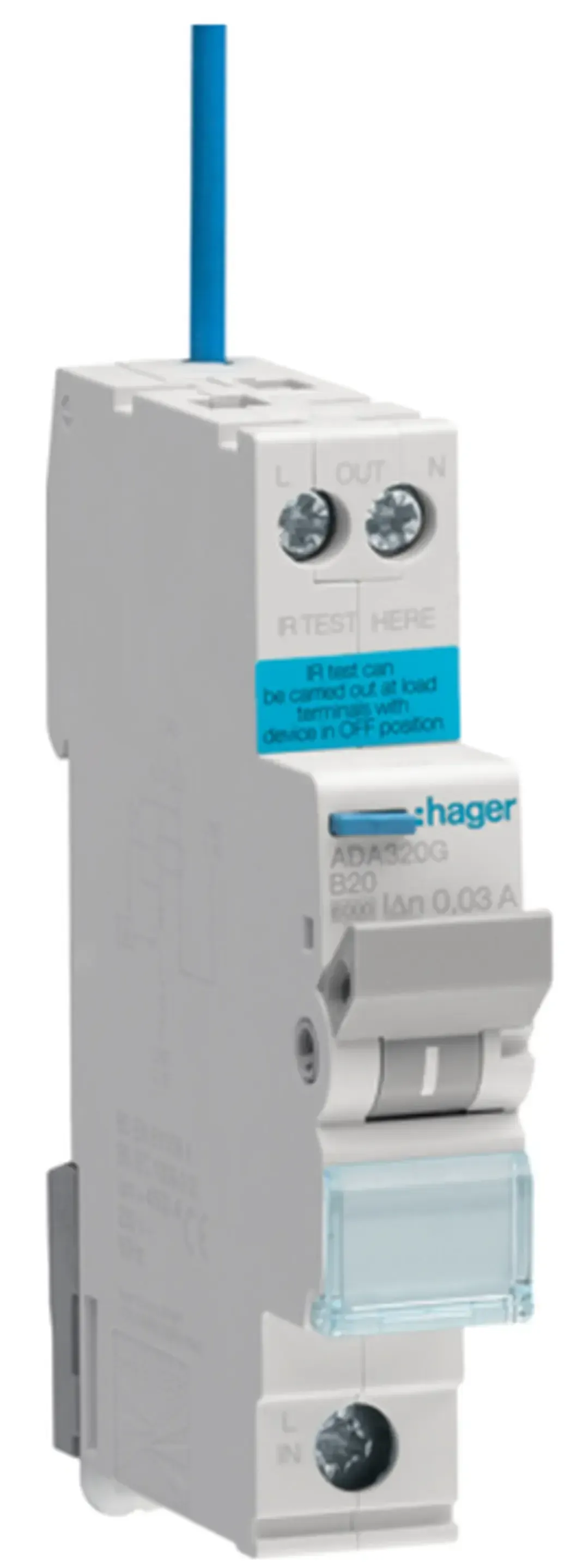

ADA320G - Hager 1p 6kA RCBO B Curve -20A 30mA Type A

Please note: The images provided are for informational purposes only. While we strive for accuracy, some images may contain inaccuracies or may not perfectly represent the subject matter.

Hager 1p 6kA RCBO B Curve -20A 30mA Type A

The Hager 1P 6kA RCBO B Curve -20A 30mA Type A is a single-pole circuit breaker designed with a B curve for enhanced protection. It has a rating current of 20A and a residual current type A. This RCBO has a height of 92mm, a depth of 70mm, and a rated short circuit breaking capacity of 6 kA under 230V AC.

Stock Code ADA320G
Out of stock

Product Features

  • SKU

    ADA320G

  • Curve

    B

  • Standard

    EN 61009-1 IEC 61009-2-2

  • Frequency

    50Hz

  • Rating Current

    20A

  • Number of Poles

    1P

  • Number of Modules

    1

  • Residual Current Type

    A

  • Depth of Installed Product

    70mm

  • Height of Installed Product

    92mm

  • Rated Operational Voltage Ue

    230V

  • Rated Short Circuit Breaking Capacity Icn

    6kA

Brand

Hager
