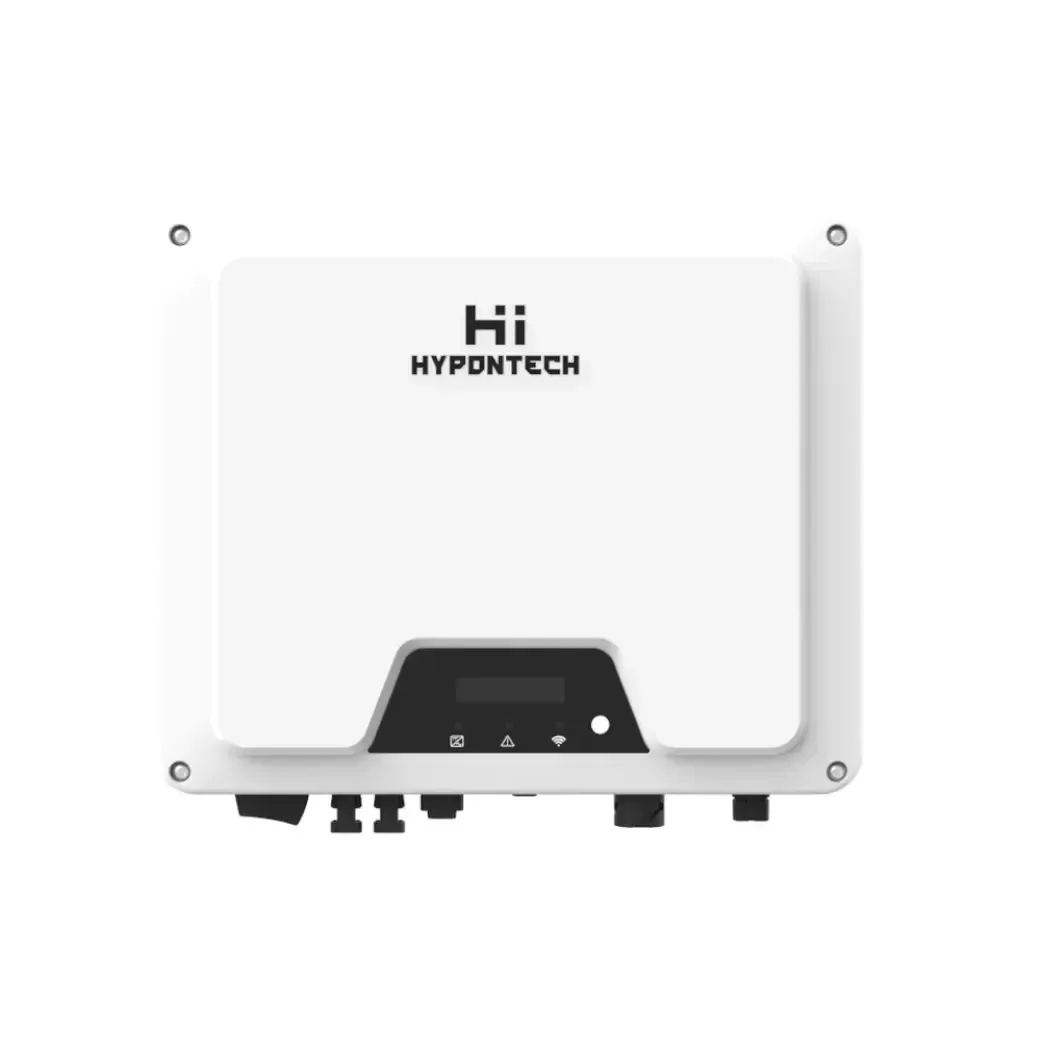

HHS3680 - Hypontech Solar Inverter Hybrid Single Phase 3.68kWh

Photo is representative

Hypontech Solar Inverter Hybrid Single Phase 3.68kWh

Ideal for small and medium-sized photovoltaic installations, the Hypontech HHS-3680 single phase hybrid inverter combines modern design and efficient energy storage. It features a maximum efficiency of 97.9% and is compatible with lithium-ion and Lead Acid batteries. With built-in protection features and easy installation, this inverter is suitable for solar rooftop and small ground installations. IP65 rated for outdoor use and adverse weather conditions.

Product Information

Stock Code HHS3680
MPN HHS-3680
GTIN —
Stock status: 8 available
Price: £869.4
incl. VAT, 20% priced individually

Product Features
Type Hybrid Inverter
Power 3680 W
Dimensions 425 x 351 x 160 mm
Max Current 13 A
Max Voltage 600 V
Feed-In Phases 1
Euro Efficiency 97.4%
Max MPPT Voltage 520 V
Min MPPT Voltage 80 V
Product Warranty 10 Years
Battery Technology Lithium Ion
Communication Type 4G Optional RS485 WiFi
Max Output Current 16 A
Battery Voltage Range 80 - 480 V
Number of MPPT Inputs 2
Maximum Charge Current 25 A
Initial Feed-in Voltage 70 V
Max Short-Circuit Current per MPPT 20 A
Maximum Continuous Discharge Current 25 A
