LVSXQ324

Please note: The images provided are for informational purposes only. While we strive for accuracy, some images may contain inaccuracies or may not perfectly represent the subject matter.

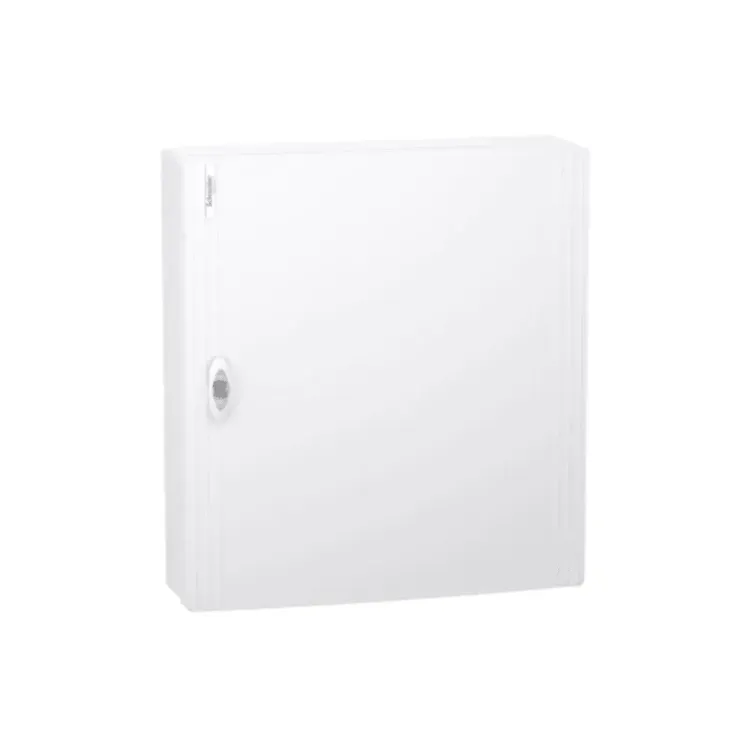

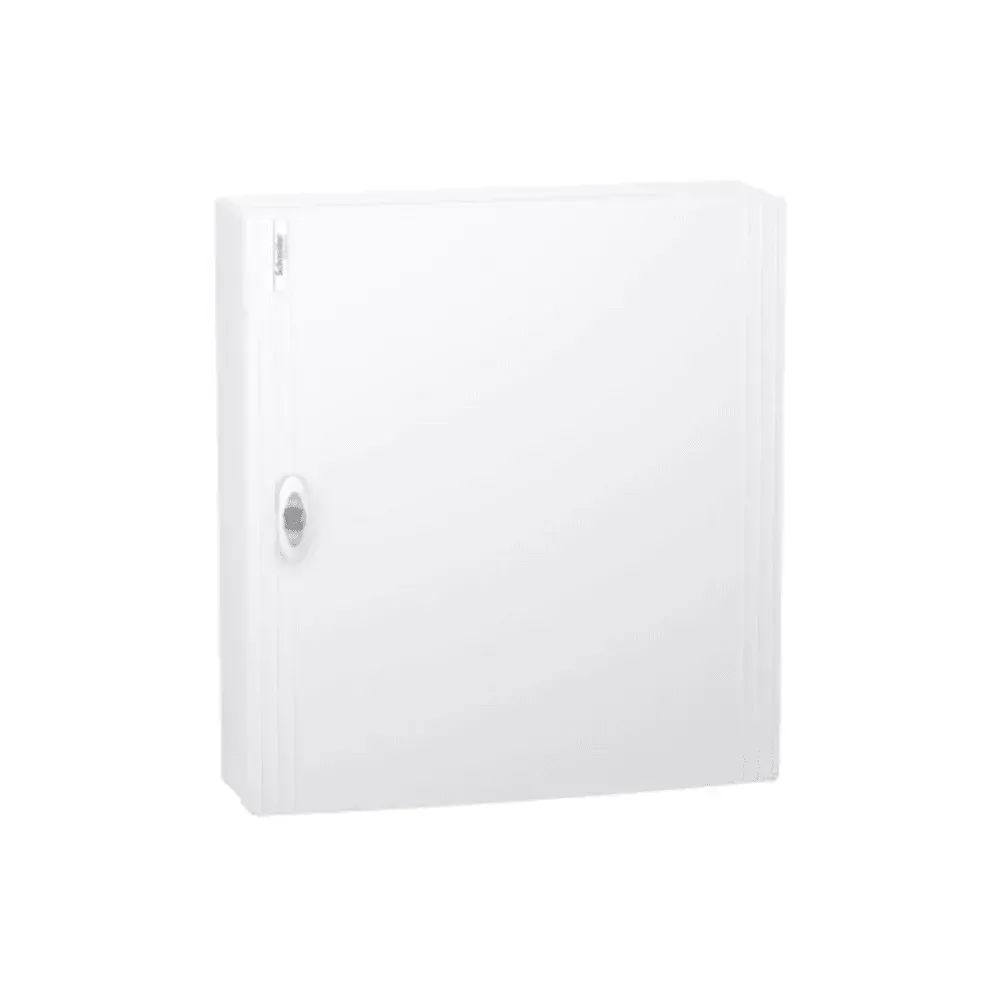

Modular Enclosure PRISMA SET XS Surface 3X24 NOD 1EARTH + 1 Neutral Terminal Blocks Plain White Door LVSXQ324

The PrismaSeT XS Enclosure is a surface-mounted distribution unit designed for indoor installations. Made of metal and plastic, it features 3 rows of 24 modules (18mm) and is ideal for housing modular switchgear. With a white RAL 9003 finish and IP40 protection when the door is closed, it’s perfect for residential and commercial use. It includes removable cable entry plates for flexible wiring, 1 back plate, 3 DIN rails, and earth/neutral terminal blocks for easy connections. The enclosure supports a maximum rated current of 125A and complies with IEC standards. The dimensions are 550mm x 600mm x 168mm, and it has a weight of 12.84kg.

Stock Code LVSXQ324
Few in stock
Price 375.42 £
incl. VAT, 20% priced individually

Depending on your delivery address, VAT may vary at Checkout.

Product Features

  • Depth:

    168 mm

  • Width:

    550 mm

  • Colour:

    RAL9003

  • Height:

    600 mm

  • Door Type:

    Plain

  • 9mm pitches:

    144

  • Type of Rail:

    Symmetrical DIN

  • Rated Current:

    125 A

  • Internal Depth:

    155 mm

  • Product Weigth:

    12.840 KG

  • Power Dissipation

    76 W

  • Type of front plate:

    Modular

  • IK Degree Protection:

    IK09

  • IP Degree Protection:

    IP40

  • Operational Temperature:

    -25 to 60°C

  • Rated Insulation Voltage:

    400 V

  • Number of Horizontal Rows:

    3

  • Total Number of 18mm Modules

    72

  • Number of 18mm Modules Per Row:

    24
