Neo Tools 420-Piece Electric Connectors Set with Organizer

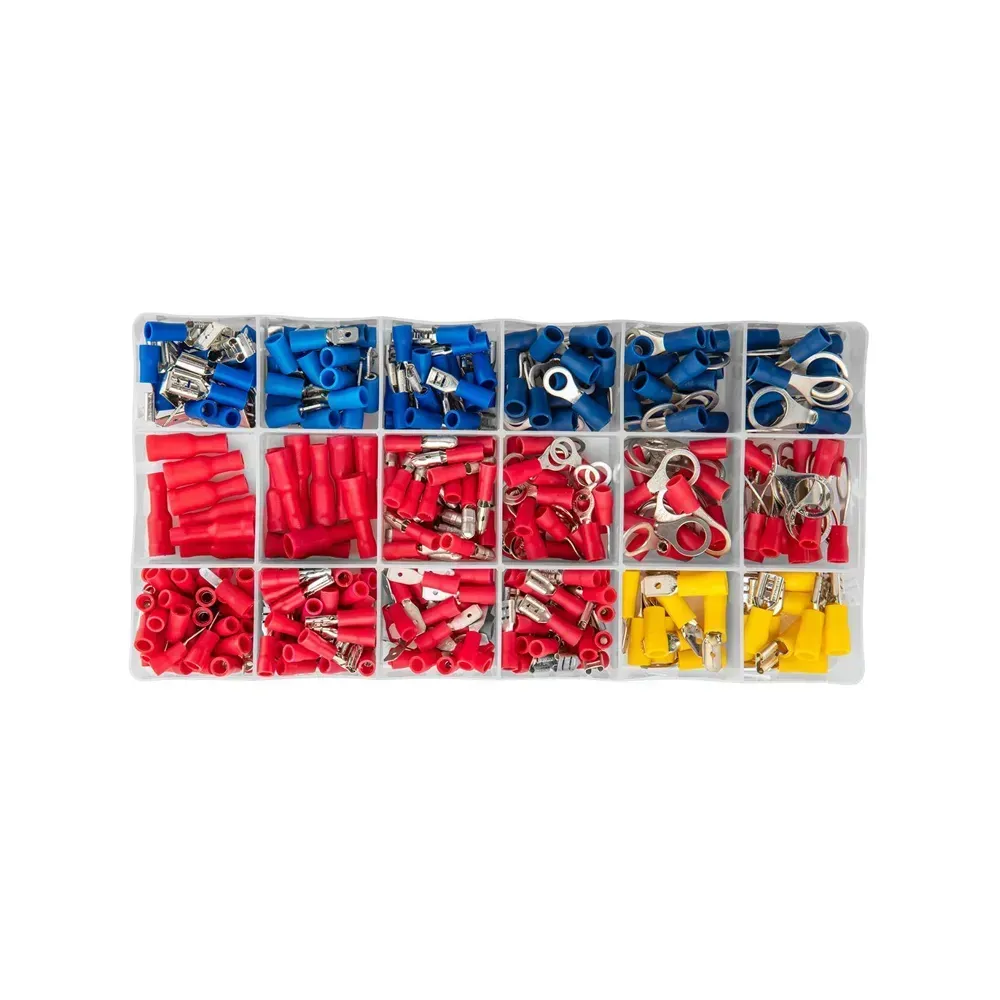

Neo Tools electric connectors set (01-535) including 420 of the most commonly used insulated terminals, ideal for electricians and fitters. This set is housed in a durable, transparent organizer, making it easy to quickly find and access the needed terminals.
Kit includes:
- 2.8mm, 4.8mm, 6.3mm male and female blade terminals
- M5, M8, M10 ring terminals
- 4mm male and female bullet terminals
Stock Code
9 Available
£21.30
Depending on your delivery address, VAT may vary at Checkout.

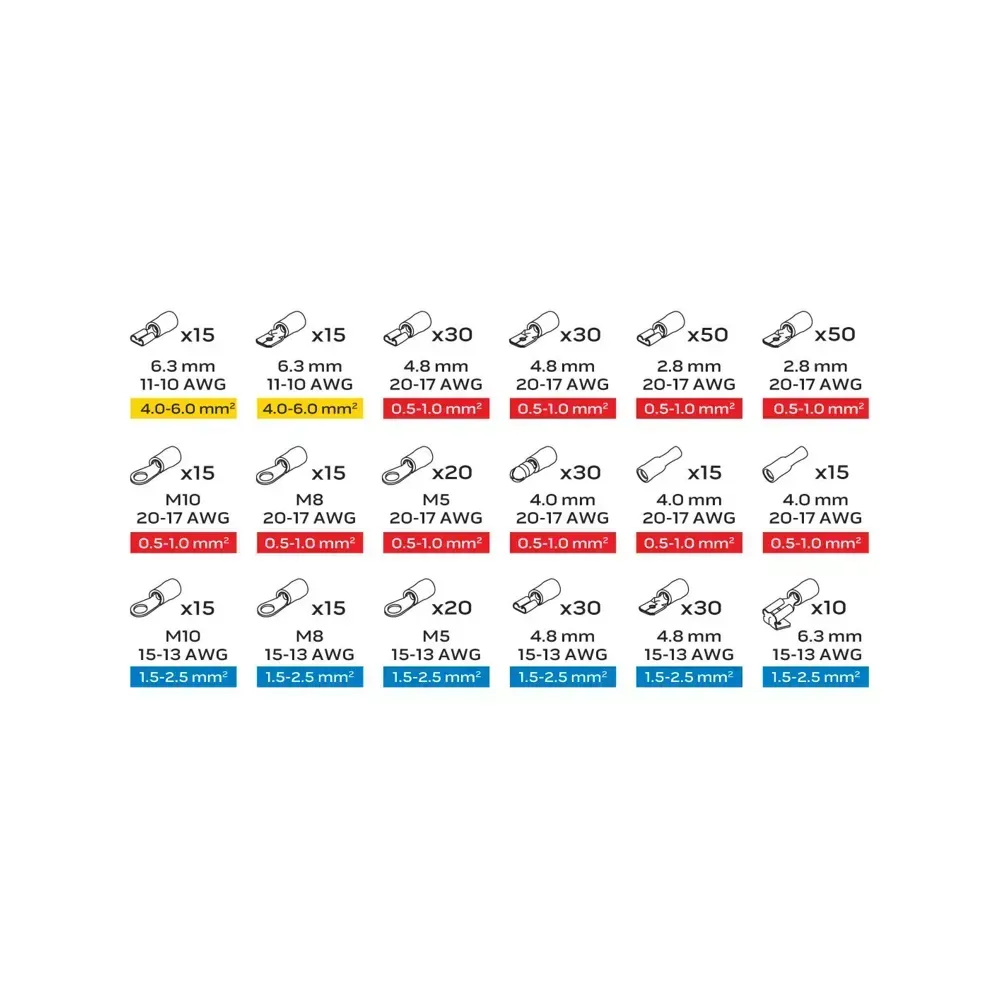

Box Content
-
Female spade terminals (yellow): 15x, 6.3mm, 11-10 AWG 4.0-6.0mm²
-
Male spade terminals (yellow): 15x, 6.3mm, 11-10 AWG, 4.0-6.0mm²
-
Female spade terminals (red): 30x, 4.8mm, 20-17 AWG, 0.5-1.0mm²
-
Male spade terminals (red): 30x, 4.8mm, 20-17 AWG, 0.5-1.0mm²
-
Female spade terminals (red): 50x, 2.8mm, 20-17 AWG, 0.5-1.0mm²
-
Male spade terminals (red): 50x, 2.8mm, 20-17 AWG, 0.5-1.0mm²
-
Ring terminals (red): 15x, M10, 20-17 AWG, 0.5-1.0mm²
-
Ring terminals (red): 15x, M8, 20-17 AWG, 0.5-1.0mm²
-
Ring terminals (red): 20x, M5, 20-17 AWG, 0.5-1.0mm²
-
Male bullet terminals (red): 30x, 4.0mm, 20-17 AWG, 0.5-1.0mm²
-
Female bullet terminals (red): 15x, 4.0mm, 20-17 AWG, 0.5-1.0mm²
-
Female bullet terminals (red): 15x, 4.0mm, 20-17 AWG, 0.5-1.0mm²
-
Ring terminals (blue): 15x, M10, 15-13 AWG, 1.5-2.5mm²
-
Ring terminals (blue): 15x, M8, 15-13 AWG, 1.5-2.5mm²
-
Ring terminals (blue): 20x, M5, 15-13 AWG, 1.5-2.5mm²
-
Female spade terminals (blue): 30x, 4.8mm, 15-13 AWG, 1.5-2.5mm²
-
Male spade terminals (blue): 30x, 4.8mm, 15-13 AWG, 1.5-2.5mm²
-
Double spade terminals (blue): 10x, 6.3mm, 15-13 AWG, 1.5-2.5mm²
