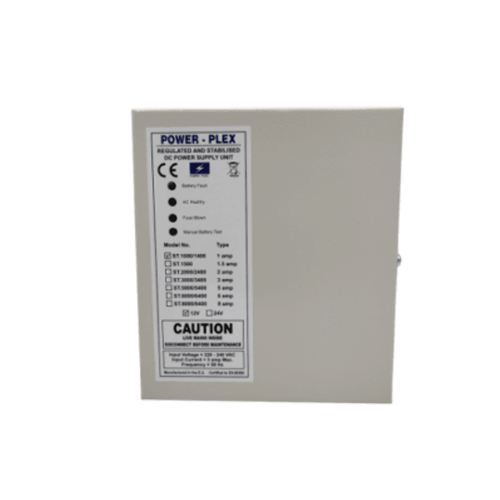

Power Supply Unit 3 Amp 12V DC ST3400 Power-Plex
The Power Supply Unit 3 Amp 12V DC ST3400 Power-Plex is designed for use in Security, Fire, CCTV, and Access Control industries. It provides a stable 3 Amp output at 24 volts DC with the capability to recharge Sealed Lead Acid batteries. The unit features LED indicators for easy monitoring and is suitable for a wide range of applications.
Stock Code
8 Available
£105.35
Depending on your delivery address, VAT may vary at Checkout.
Product Features
-
Battery Recommended
12 volt 7 amp/hour x 2
-
Certification
EN.60950 European Safety Standard
-
Dimensions
Refer to brochure for enclosure options
-
Environment Range
-10 to +40 deg. C
-
Fuses
Mains Safety Fuseblock 3.15 Amp Ceramic, Load Output Fuse 3 Amp
-
Indicators
LED Green - Mains present, LED Red - DC output fuse blown, LED Yellow - Battery Fault on Manual Test
-
Installation Notes
Wall mount horizontally with front decal upright. Connect Mains using suitable 3 core 0.75 Cable via anti-strain gland to correct terminals. Route Mains cable away from low voltage circuitry. Provide 220-240 Volt Mains via an un-switched fused spur point. Apply power and observe LED indicators.
-
Main Input
230V AC @ 50 Hz 3 Amp max
-
Output
3 Amp at 24 volts DC
-
SKU
PSUA/3
