Prisma Plain Door 5 Row 08085

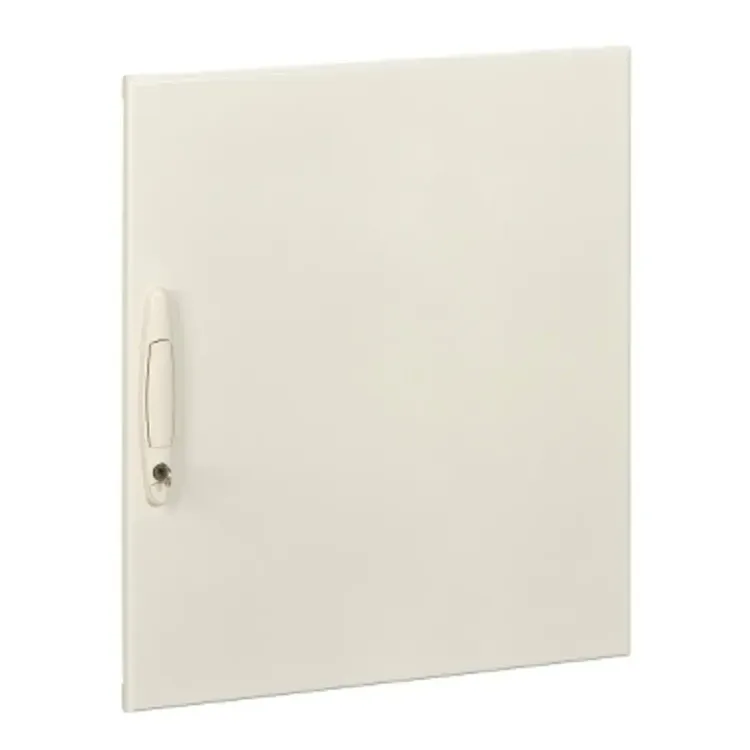

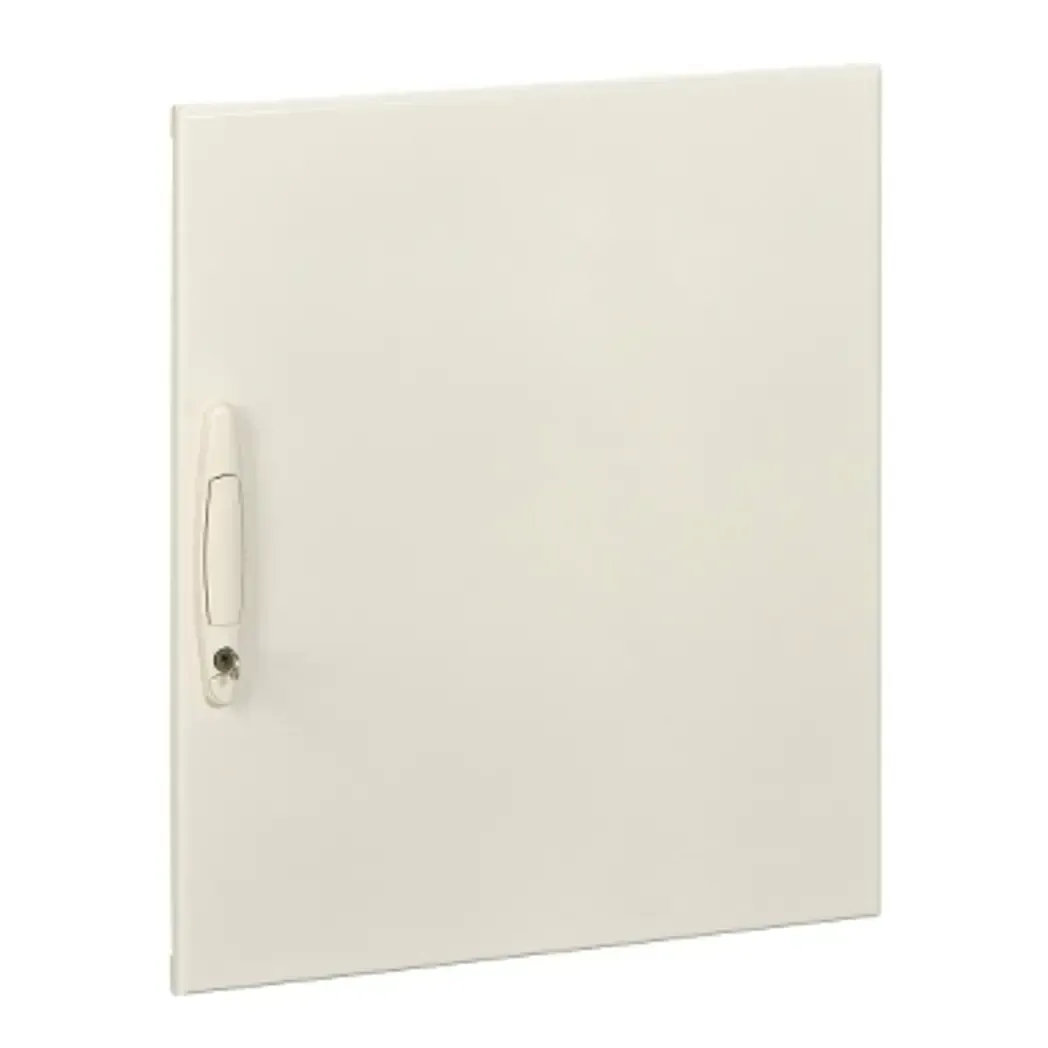

Schneider’s Prisma Plain Door 5 Row 08085 offers a flush-mount solution for Prisma G enclosures, featuring a reversible plain door with IP30 protection, accommodating up to 120 18mm modules across 5 rows. Crafted from treated sheet steel with a smooth matt white finish, it meets IK08 impact resistance standards and is treated for durability.

Stock Code 08085
Out of stock

Product Features

  • sku

    08085

  • Depth

    22 mm

  • Width

    550 mm

  • Colour

    White RAL 9001

  • Height

    930 mm

  • DoorType

    Plain

  • Material

    Treated Sheet Steel

  • NetWeight

    5.3 kg

  • IPProtection

    IP30

  • TotalModules

    120

  • ModulesPerRow

    24

  • NumberOfLocks

    1

  • SurfaceFinish

    Smooth Matt

  • HorizontalRows

    5

  • DoorOpeningSide

    Reversible

  • VerticalModules

    18

  • DoorOpeningAngle

    130 Degrees

  • EnclosureMounting

    Flush with Kit Surface

  • StandardsIEC614391

    IEC 61439-1

  • StandardsIEC614392

    IEC 61439-2

  • ProtectiveTreatment

    Electrophoresis Treatment and Hot-Polymerised Polyester Epoxy Powder

  • EnvironmentIKProtection

    IK08 Conforming to ENIEC 62262
