4 Core 1.5mm2 NHXMH-U LSZH Smoke Alarm Linking Cable 300 500V Brown Blue White Earth

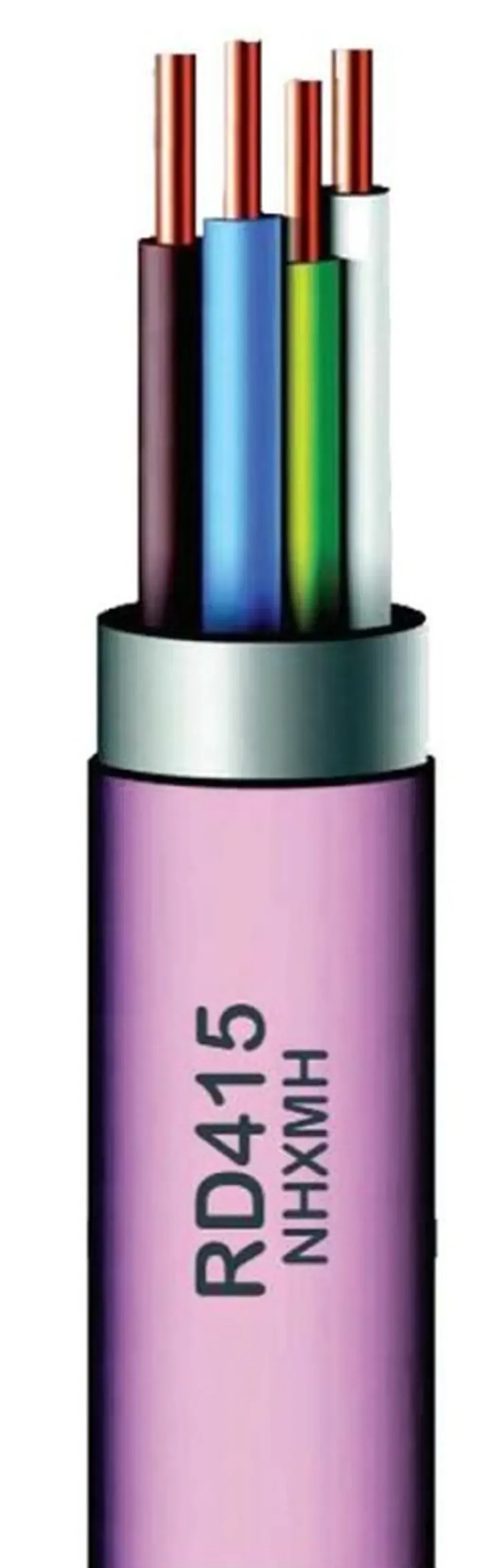

Photo is representative

4 Core 1.5mm2 NHXMH-U LSZH Smoke Alarm Linking Cable 300 500V Brown Blue White Earth

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code RD415
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £1.32

Gross price

£1.59

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

NHXMH-U 4-core 1.5mm² LSZH cable for linking smoke alarms in domestic and commercial installations. XLPE insulated, low smoke zero halogen sheathed — suitable for dry, moist, or wet areas including under plaster or within concrete.

  • 1.5mm² Class 1 solid copper, 300/500V rated

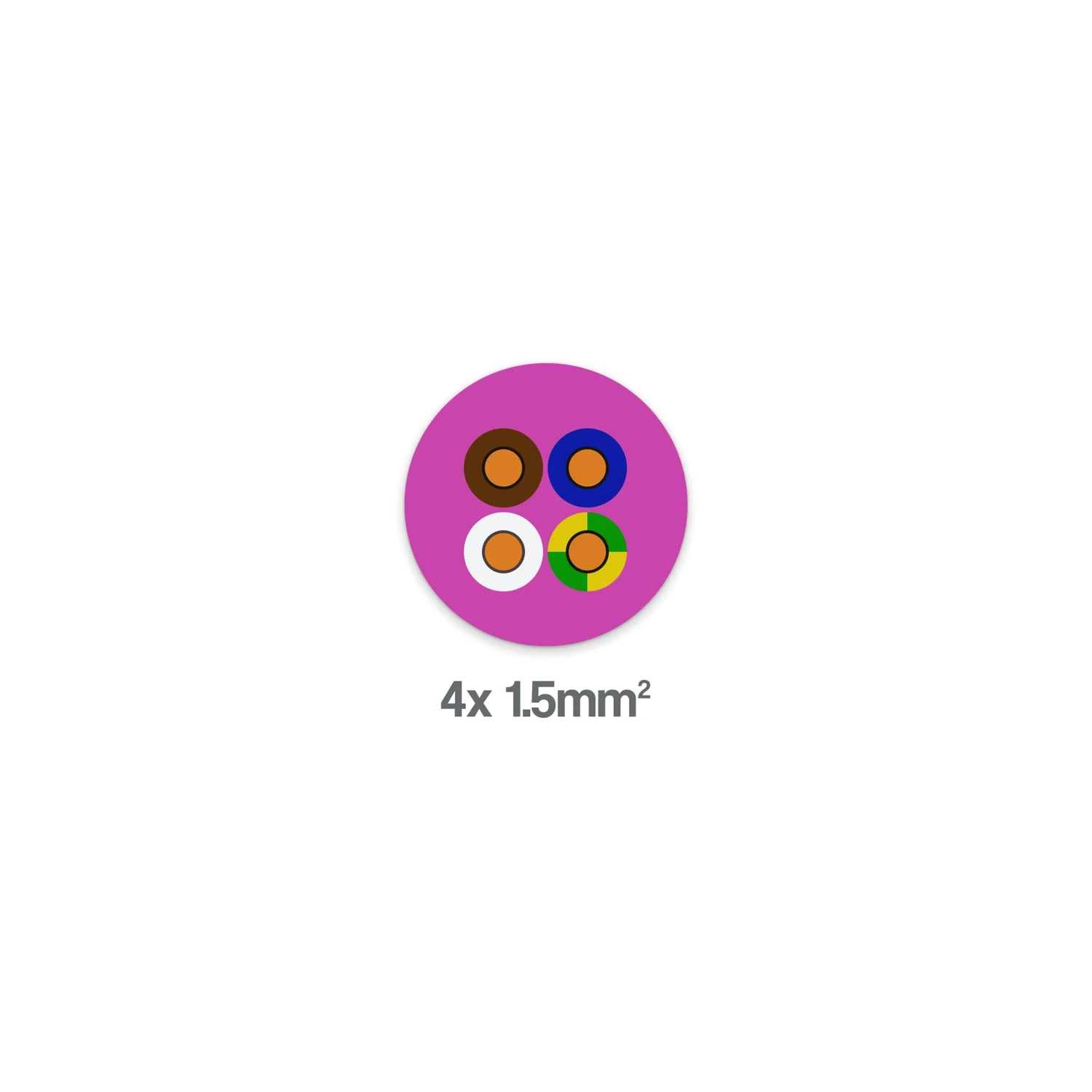

  • Cores: Brown, Blue, White, Green/Yellow (E)
  • LSZH sheath — compliant with IEC/EN 60754-1⁄2 and BS EN/IEC 61034-2
  • Flame retardant to BS EN/IEC 60332-1-2 and 60332-3-24
  • Operating temp: -5°C to +90°C
Specifications

Conductor Size

1.5 mm²

Number of Cores

4

Core Colours

Brown, Blue, White, Green/Yellow

Voltage Rating

300/500 V

Conductor Material

Class 1 solid copper

Stranding

1/1.38 mm

Insulation

Cross Linked Polyethylene (XLPE)

Sheath Material

Low Smoke Zero Halogen (LSZH)

Overall Diameter

10.7 mm

Weight

140 kg/km

Temperature Range

-5°C to +90°C

Minimum Bending Radius

4 x overall diameter (fixed)

Voltage Drop (3/4-core AC)

25 mV/A/m

Standards

IEC/EN 60754-1/2, BS EN/IEC 61034-2, BS EN/IEC 60228, BS EN/IEC 60332-1-2, BS EN/IEC 60332-3-24, VDE 0250-214
