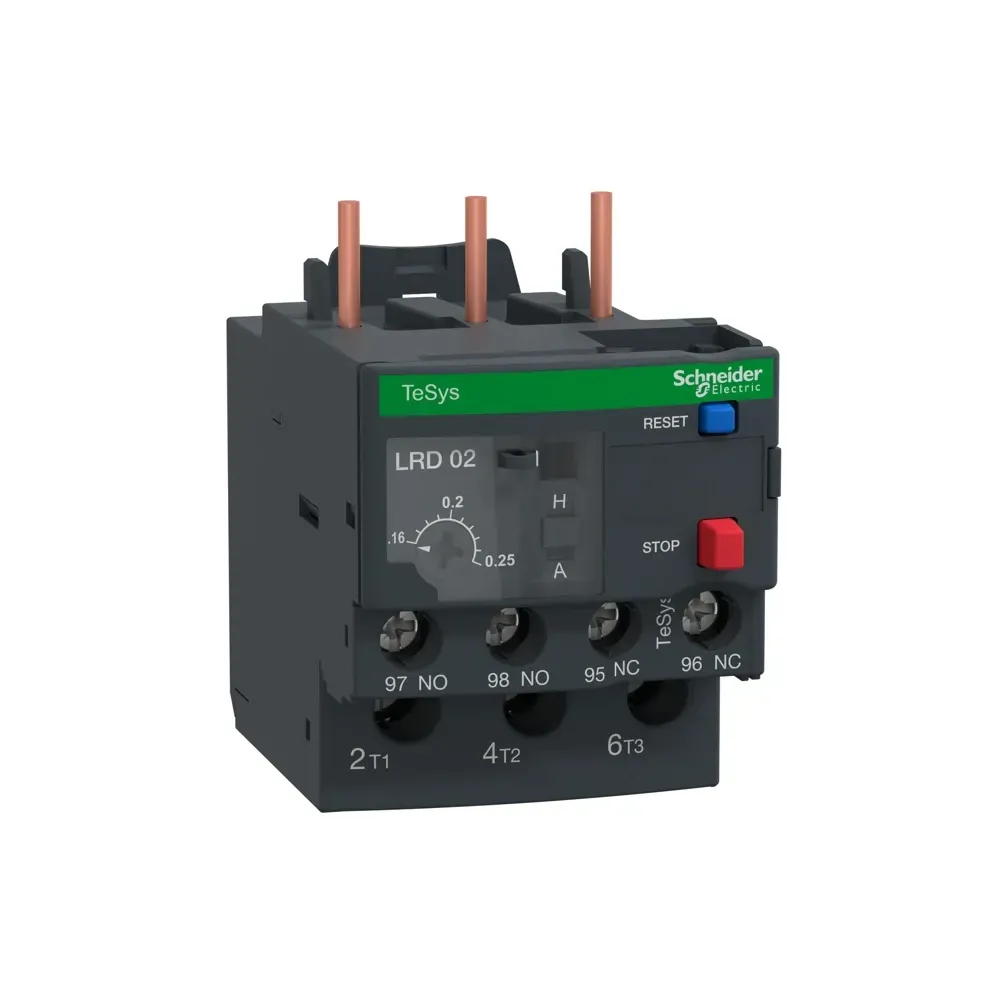

Schneider Electric LRD02 thermal overload relay 0.16-0.25A Class 10A

Photo is representative

Schneider Electric LRD02 Thermal Overload Relay 0.16-0.25A Class 10A

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code LRD02
GTIN 3389110346725
Stock status: In stock

priced individually

Net price: £45.31

Gross price

£54.37

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Schneider Electric LRD02 thermal overload relay (LRD02) for motor protection. Adjustable thermal protection 0.16–0.25 A with Class 10A trip characteristics. Rated operational voltage 690 V AC (0–400 Hz). Auxiliary contacts 1NO + 1NC, manual reset via blue push-button and red push-button stop. Direct mount under TeSys contactors (LC1D09…LC1D38) or plate/rail with accessories. Phase failure sensitivity and ambient compensation included.

Specifications

Current Range

0.16–0.25 A adjustable

Trip Class

Class 10A thermal protection (IEC 60947-4-1)

Operating Voltage

690 V AC maximum (0–400 Hz)

Auxiliary Contacts

1NO + 1NC

Reset Type

Manual reset (blue push-button); red push-button stop

Mounting

Direct mount under TeSys contactors (LC1D09…LC1D38); plate or rail with accessories
