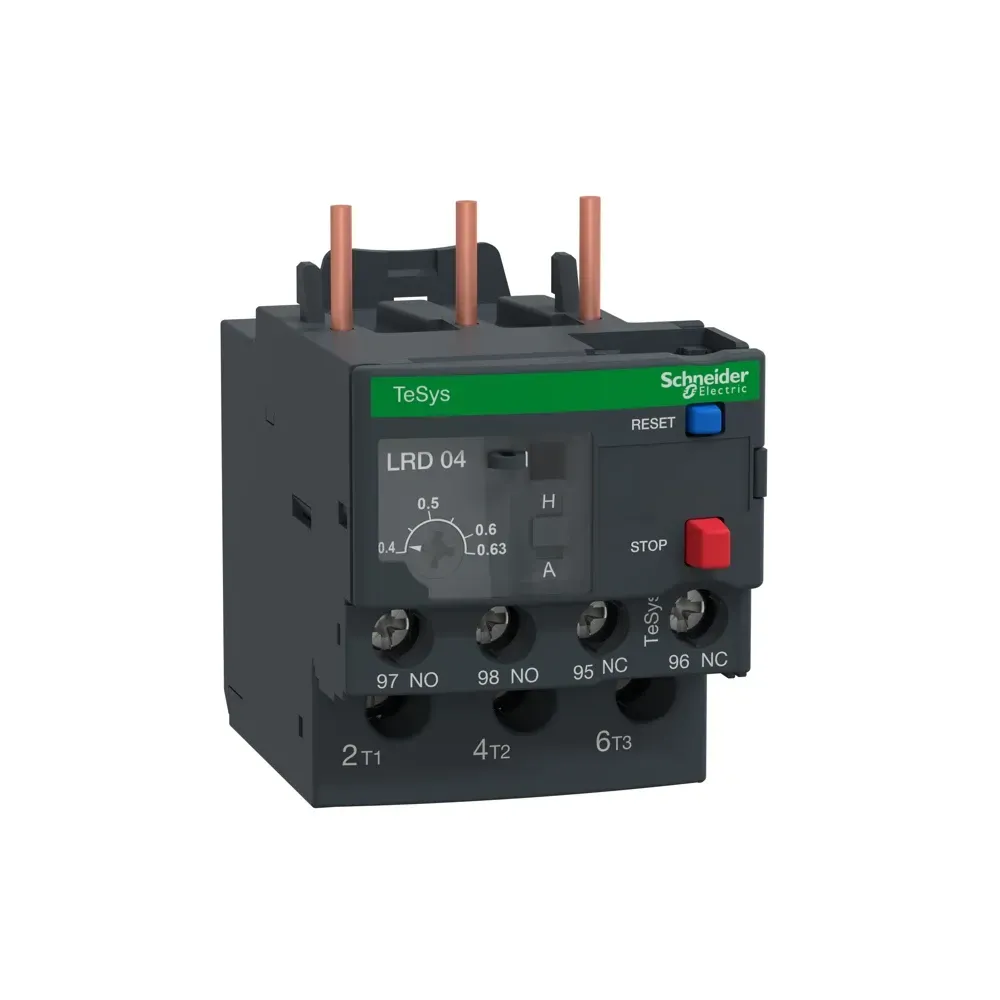

Schneider Electric LRD04 thermal overload relay 0.4-0.63A Class 10A

Photo is representative

Schneider Electric LRD04 Thermal Overload Relay 0.4-0.63A, 1NO+1NC, Class 10A

Schneider Electric LRD04 thermal overload relay (LRD04) for motor protection with an adjustable 0.4–0.63 A range. Class 10A trip characteristics, rated to 690 V AC, with 1NO+1NC auxiliary contact and manual reset (blue push-button). Phase-failure sensitive and temperature compensated (‑20…60 °C). Fits direct-mount under TeSys/LC1D contactors; rail or plate mounting possible with accessories.

Product Information

Stock Code LRD04
MPN LRD04
GTIN 3389110346749
Stock status: 9 available
Price: £54.84
incl. VAT, 20% priced individually

Product Features
Current Range 0.4–0.63 A adjustable
Trip Class Class 10A thermal protection (IEC 60947-4-1)
Operating Voltage 690 V AC maximum (power circuit)
Auxiliary Contacts 1 NO + 1 NC
Reset Type Manual reset (blue push-button); red push-button stop
Mounting Direct mount under TeSys/LC1D contactors; plate or rail with accessories

Brand

Schneider Electric
