Schneider Electric 0.63-1A thermal overload relay Class 10A

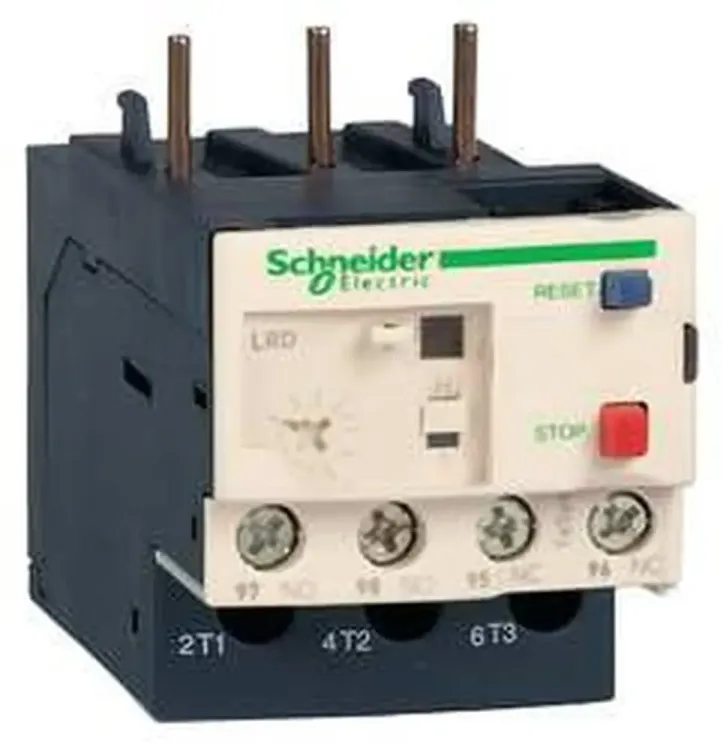

Photo is representative

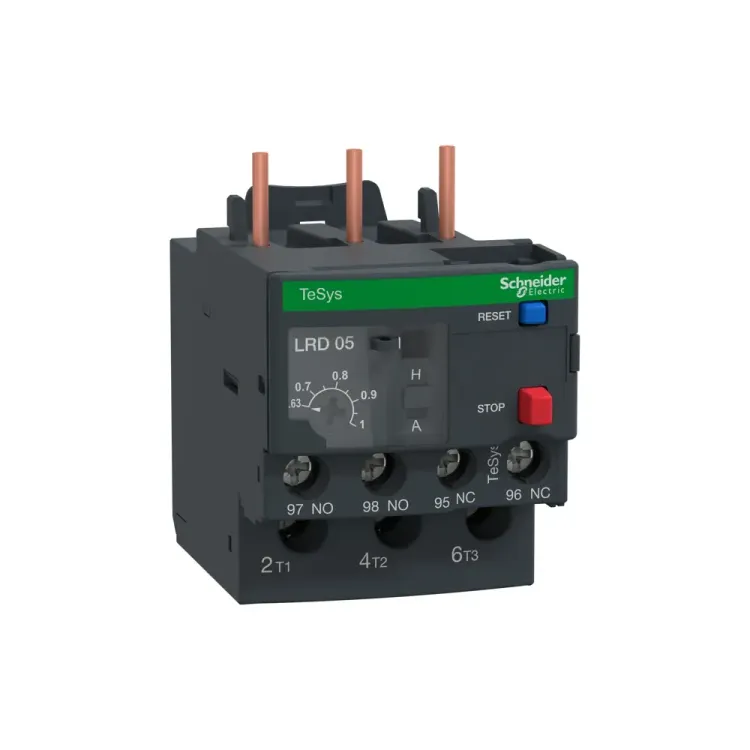

Schneider Electric LRD05 Thermal Overload Relay 0.63-1A Class 10A

Schneider Electric LRD05 thermal overload relay (LRD05) for motor protection in TeSys Deca applications. Adjustable thermal protection 0.63–1 A with Class 10A trip characteristics and 690 V AC rated power circuit. Features 1NO+1NC auxiliary contact, screw-clamp terminals and manual reset via blue push-button (red push-button = stop). Phase-failure sensitive and temperature compensated for -20…60 °C operation. Designed for direct mounting under TeSys D/Deca contactors (LC1D series) or plate/rail mounting with accessories.

Product Information

Stock Code LRD05
MPN LRD05
GTIN 3389110346756
Stock status: In stock
Price: £54.84
incl. VAT, 20% priced individually

Product Features

Current Range 0.63-1 A adjustable
Trip Class Class 10A thermal protection
Operating Voltage 690 V AC (power circuit) up to 400 Hz
Auxiliary Contacts 1NO+1NC
Reset Type Manual reset (blue push-button); red push-button stop
Mounting Direct mount under TeSys D/Deca contactors (LC1D series); plate or rail with accessories

Brand

Schneider Electric
