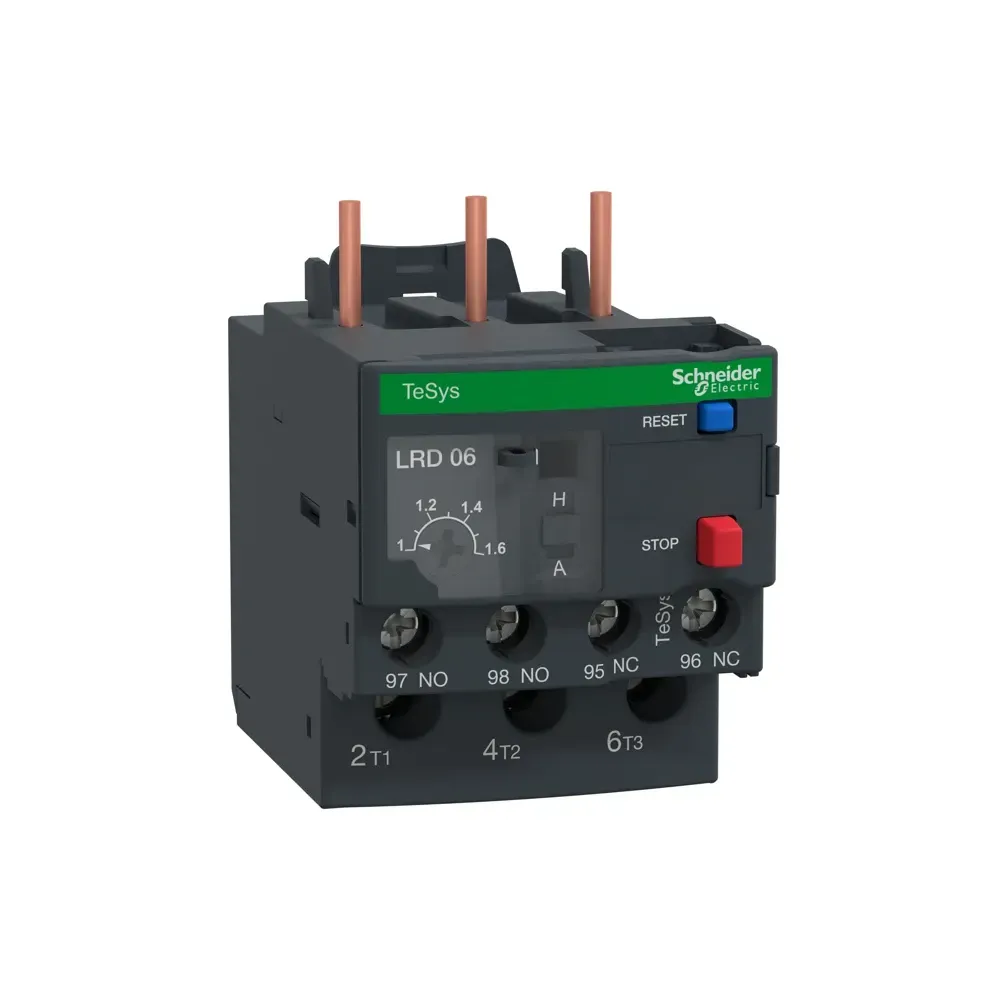

Schneider Electric 1-1.6A thermal overload relay Class 10A

Photo is representative

Schneider Electric LRD06 Thermal Overload Relay 1-1.6A Class 10A

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code LRD06
GTIN 3389110346763
Stock status: 9 in stock

priced individually

Net price: £44.85

Gross price

£53.82

Schneider Electric 1-1.6 A thermal overload relay (LRD06), designed for motor protection in TeSys Deca starter assemblies. Class 10A trip characteristics with manual (blue push-button) reset and red stop button. Rated for up to 690 V AC (0…400 Hz) power circuits. Auxiliary contact configuration 1NO+1NC. Direct mount under TeSys contactors (LC1D09–LC1D38) or plate/rail with accessories. Signalling circuit ratings: 3 A at 120 V AC (AC-15) and 0.22 A at 125 V DC (DC-13); conventional free-air thermal current 5 A. Compact dimensions: 66×45×70 mm; net weight 0.124 kg. Conforms to IEC 60947-4-1.

Specifications

Current Range

1-1.6A adjustable

Trip Class

Class 10A thermal protection (IEC 60947-4-1)

Operating Voltage

690V AC maximum (0…400 Hz)

Auxiliary Contacts

1NO+1NC configuration

Reset Type

Manual reset (blue push-button); red push-button stop

Mounting

Direct mount under TeSys Deca contactors (LC1D series); plate/rail with accessories
