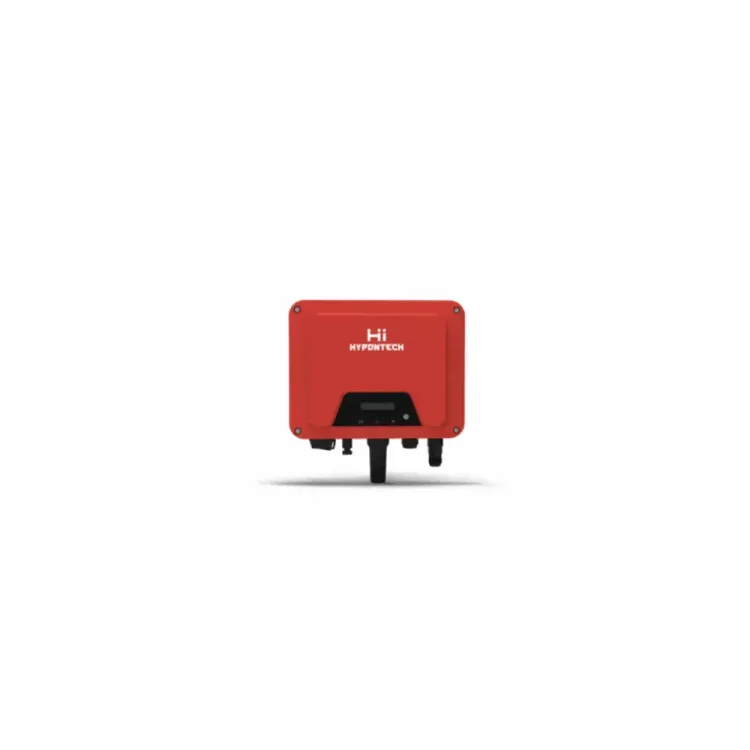

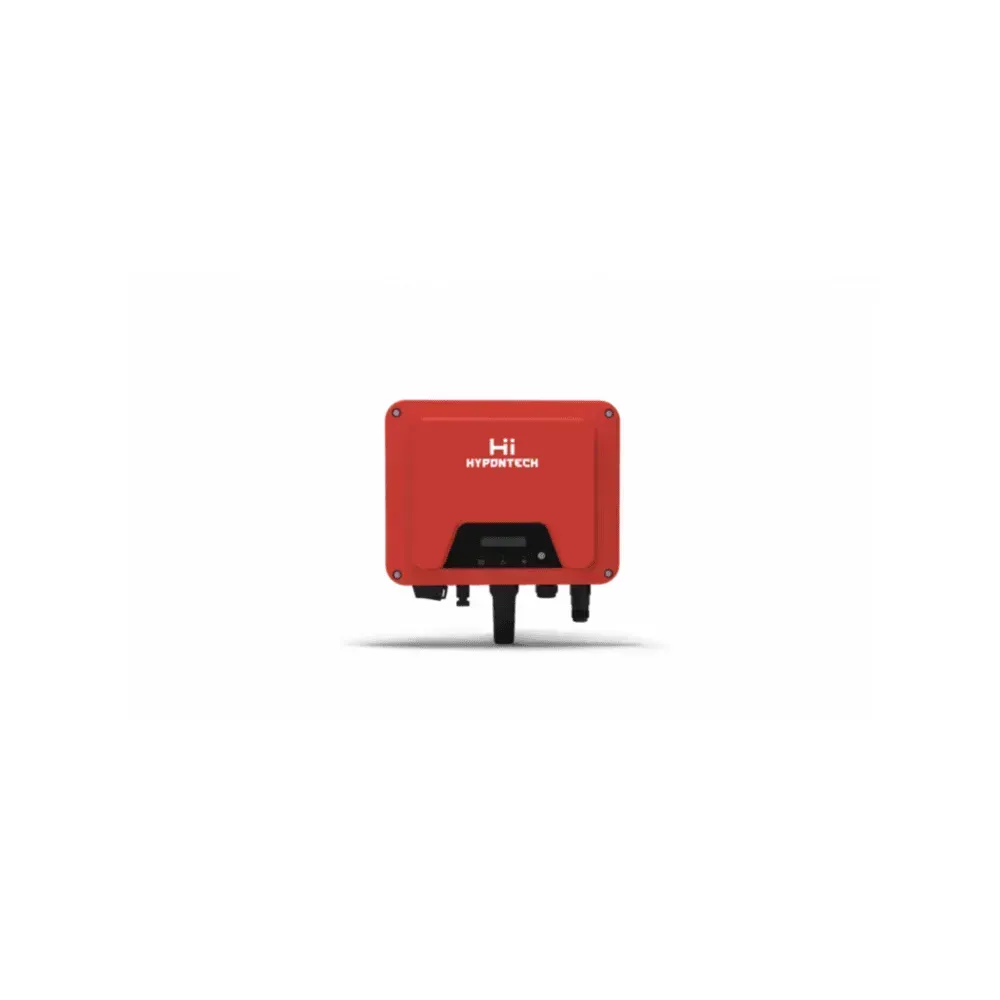

1.5kW Single Phase Solar Inverter - High Efficiency, IP65
This 1.5kW single-phase solar inverter converts DC power from solar panels to AC power for grid connection, featuring a high IP65 rating.
- Maximum DC power: 2.31kW.
- High efficiency: up to 97.3%.
- Wide MPP voltage range: 50-450V.
- IP65 weatherproof rating.
Depending on your delivery address, VAT may vary at Checkout.
Product Features
-
THD
< 3%
-
Weight
5 kg
-
Display
LCD, LED
-
Humidity
0-100%
-
DC Inputs
1
-
Frequency
50/60 Hz
-
Interface
RS 485, WLAN
-
Noise Level
< 20 dB(A)
-
Rated Power
1.5 kW
-
Transformer
Transformerless
-
Power Factor
0.8
-
DC Connectors
MC4
-
MPPT Trackers
1
-
Max. Altitude
3000 m
-
AC Power (Max)
1.65 kW
-
DC Power (Max)
2.31 kW
-
AC Current (Max)
7.5 A
-
DC Current (Max)
12.5 A
-
DC Voltage (Max)
500 V
-
Efficiency (Max)
97.3%
-
Protection Class
IP65
-
Efficiency (Euro)
96.6%
-
Dimensions (H/W/D)
220x297x108 mm
-
MPPT Voltage Range
50-450 V
-
AC Voltage (Nominal)
220/230/240 V
-
DC Voltage (Nominal)
360 V
-
Operating Temperature
-25 ~ +60 ℃
-
Night Power Consumption
< 1 W
