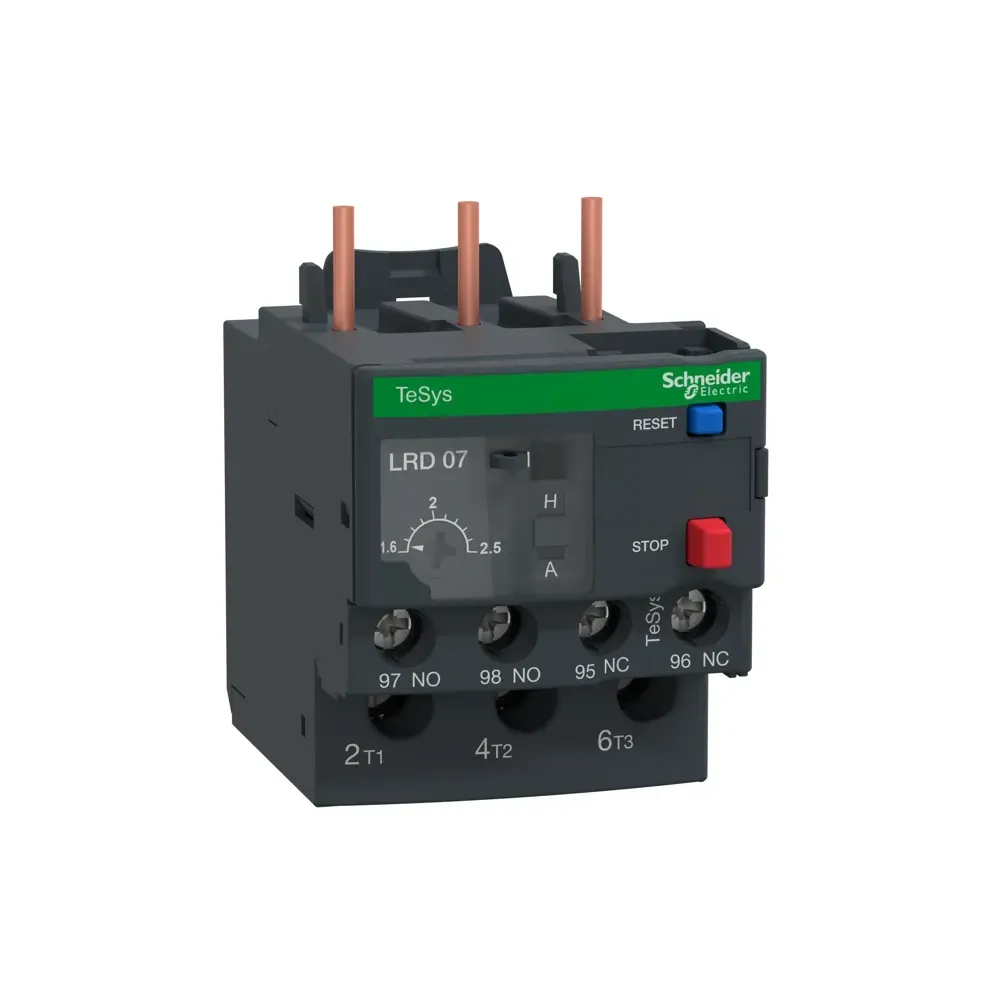

Schneider Electric 1.6-2.5A thermal overload relay Class 10A

Photo is representative

Schneider Electric LRD07 Thermal Overload Relay 1.6-2.5A Class 10A

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code LRD07
GTIN 3389110346770
Stock status: In stock

priced individually

More arriving soon

Net price: £38.44

Gross price

£46.13

Schneider Electric 1.6–2.5 A thermal overload relay (LRD07) from the TeSys Deca range for motor protection. Class 10A trip characteristics with manual reset via blue push-button and a red stop push-button. Rated for power circuits to 690 V AC (also 600 V per UL/CSA), with auxiliary contact composition 1NO+1NC and phase-failure sensitivity. Direct mountable under TeSys contactors (compatible with LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38). Screw clamp terminals, ambient compensated and IEC 60947-4-1 compliant for industrial applications.

Specifications

Current Range

1.6-2.5A adjustable

Trip Class

Class 10A thermal protection

Operating Voltage

690V AC maximum (power circuit; 600V per UL/CSA)

Auxiliary Contacts

1NO+1NC

Reset Type

Manual reset (blue push-button); red push-button stop

Mounting

Direct mount under TeSys contactors (LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38)
