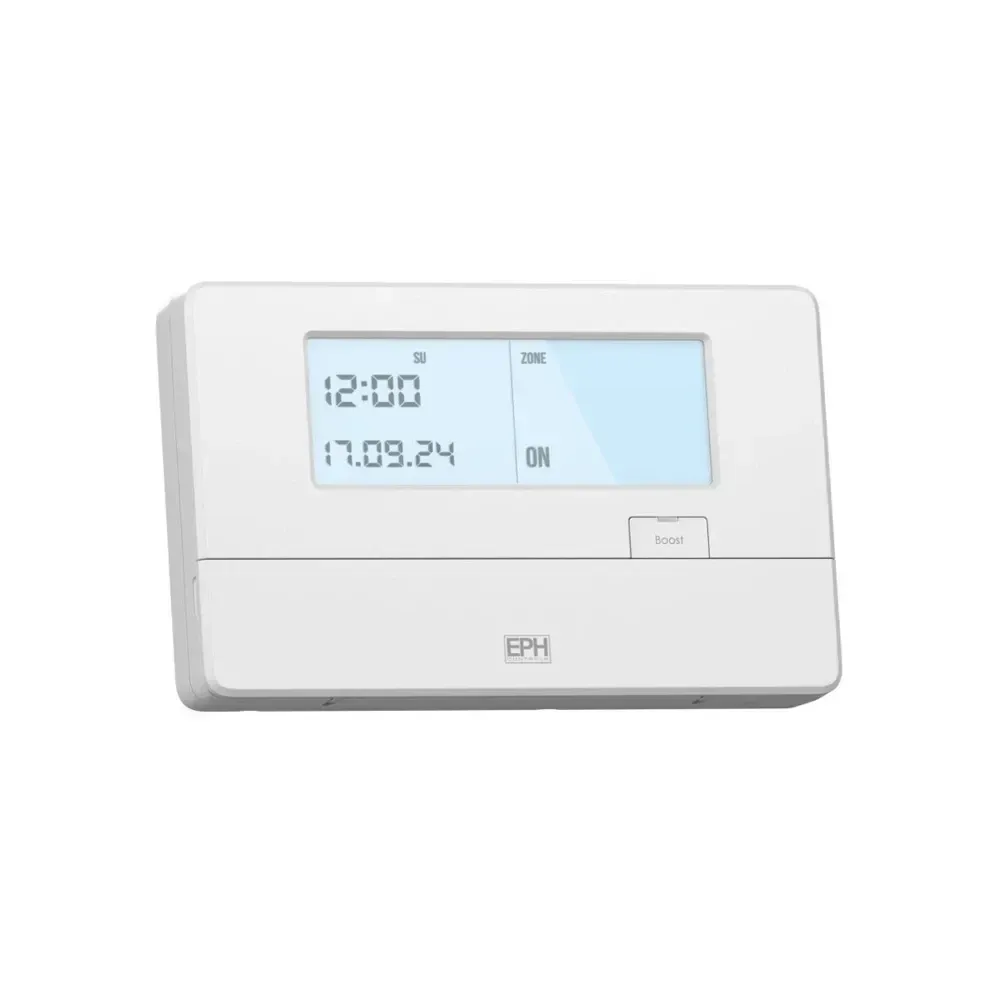

1 Channel Digital Time-Clock EPH R17
1 Channel Digital Time-Clock EPH R17 is a versatile time-switch with 3 operating modes (24h, 5/2d, & 7 day) for controlling central heating systems. It features various functions including preset clock, volt-free contacts, boost & advance, frost protection, holiday mode, and more.
Online:
Product Features
Battery | 3VDC Lithium LIR2032 & CR2032 |
---|---|
Backlight | White |
Backplate | British System Standard |
IP Rating | IP20 |
Dimensions | 161 x 100 x 31 mm |
Power Supply | 230VAC |
Switch Output | SPDT Volt Free |
Contact Rating | 3(1)A 230VAC |
Program Memory | 5 Years |
Software Class | Class A |
Pollution Degree | 2 (Resistance to voltage surge 2000V; as per EN60730) |
Temperature Sensor | NTC 100K |
Ambient Temperature | 0 - 50 deg C |
mpn | R17 |
