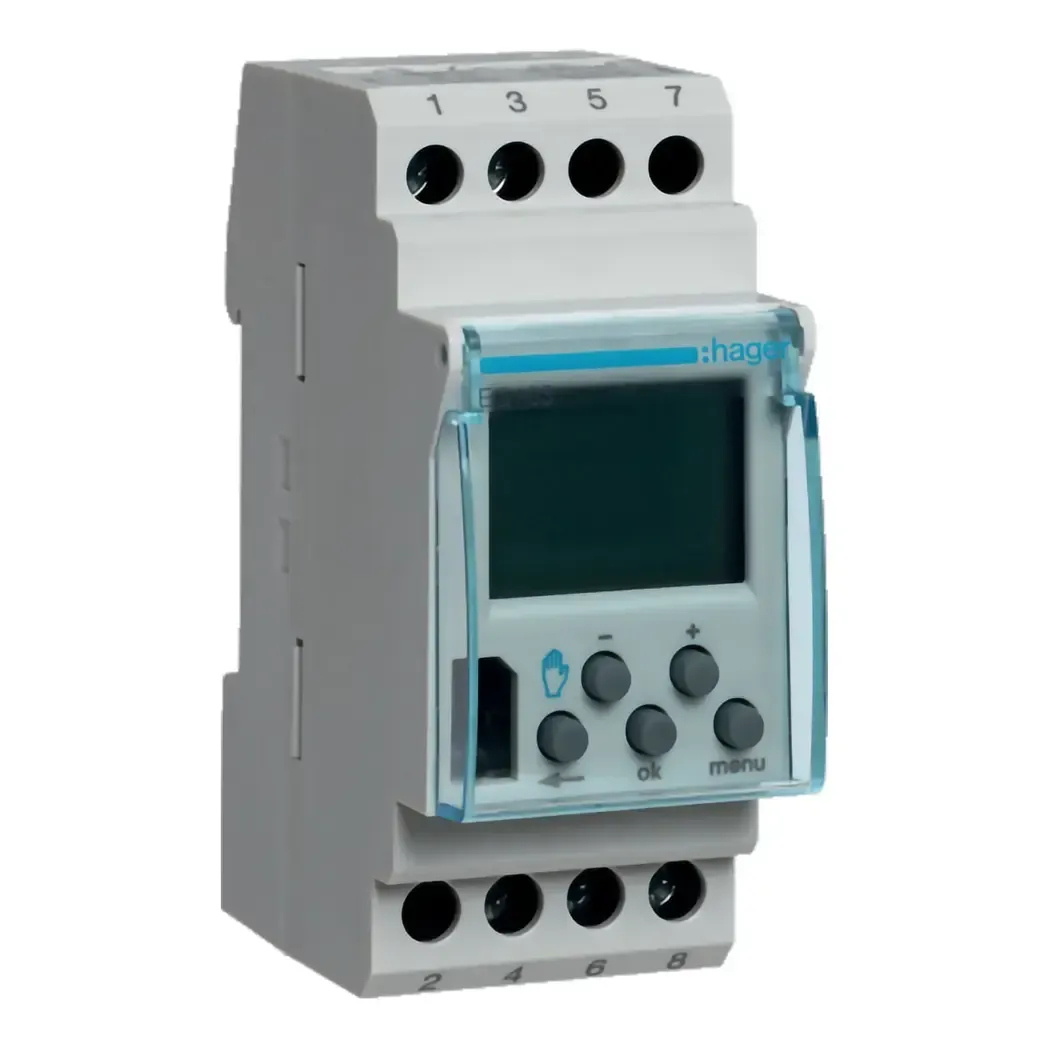

EG103B - 1 Channel Digital Time Switch Weekly Cycle 227987 Hager EG103B

Note: Images are for reference. Minor color or detail differences may occur due to lighting, screen settings, or product variations.

1 Channel Digital Time Switch Weekly Cycle 227987 Hager EG103B

1 Channel Digital Time Switch by Hager with weekly cycle programming. Suitable for controlling electrical devices with a maximum power of 2300W. Features automatic summer/winter time change, din-rail fixing mode, and a digital programming interface.

Stock Code: EG103B
Out of stock

Product Features

  • DCF

    No

  • SKU

    EG103B

  • Cycle

    Weekly

  • Length

    85 mm

  • Frequency

    50/60 Hz

  • Fixing Mode

    Din-Rail

  • Supply Voltage

    230V AC

  • Type Of Contacts

    1 Changeover

  • Working Accuracy

    9

  • Breaking Capacity

    16A 250V AC1

  • Number Of Modules

    2

  • Programming Cycle

    1X7D

  • Number Of Channels

    1

  • Number Of Contacts

    1

  • Type Of Connection

    With Screw

  • Protection Index IP

    IP20

  • Storage Temperature

    -20 to 70 C

  • Type Of Programming

    Digital

  • With Holidays Program

    No

  • Supply Failure Reserve

    5 Years

  • Number Of Program Steps

    56

  • Shortest Switching Time

    1 mn

  • Total Power Loss Under IN

    2 W

  • Depth Of Installed Product

    64 mm

  • Power Dissipation Per Coil

    0.5 W

  • Width Of Installed Product

    36 mm

  • Height Of Installed Product

    85 mm

  • Summer / Winter Time Change

    Automatic

  • Rated Operational Voltage Ue

    230 V

  • Max Power With Incandescent Lamps

    2300 W

  • Connection Cross-Section Rigid Cable

    1.5 / 10mm

  • Connection Cross-Section Flexible Conductor

    1 / 6mm

Brand

Hager
