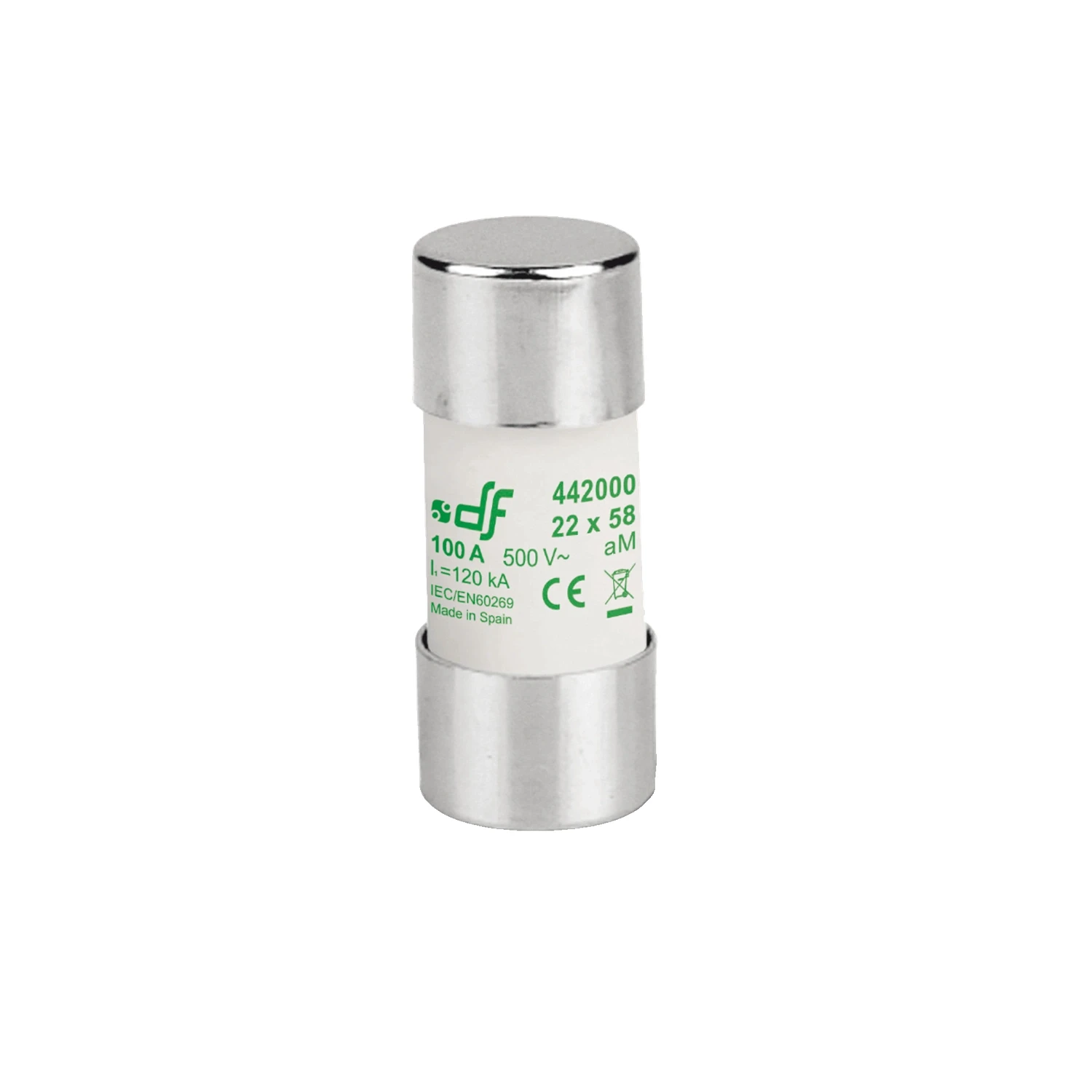

100A 22x58mm aM Cylindrical Fuse Link 500V AC IEC60269

Photo is representative

100A 22x58mm aM Cylindrical Fuse Link 500V AC IEC60269

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 442100
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £8.54

Gross price

£10.25

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Class aM cylindrical fuse link, 22x58mm, rated 100A at 500V AC. Designed for short-circuit protection on motor and transformer circuits where high inrush currents are present.

Low I²t values give good current-limiting performance and coordinate well with downstream switchgear.

  • Operating class: aM
  • Rated breaking capacity: 120kA @ 500V
  • Prearcing I²t: 50,000 A²s
  • Total I²t @ 500V: 140,000 A²s
  • Body: ceramic, contacts silver-plated copper
Specifications

Rated Current

100A

Rated Voltage

500V AC

Operating Class

aM

Breaking Capacity

120kA @ 500V

Size

22x58mm

Rated Frequency

42–62Hz

Operating Temperature

-40°C to 80°C

Storage Temperature

-40°C to 90°C

Power Dissipation @ 100A

6.61W

Prearcing I²t @ 100A

50000 A²s

Total I²t @ 500V @ 100A

140000 A²s

Contact Material

Silver plated copper

Body Material

Ceramic

Standards

IEC/EN 60269-1, IEC/EN 60269-2
