aM Cylindrical Fuse Link 10A 14x51mm 690V

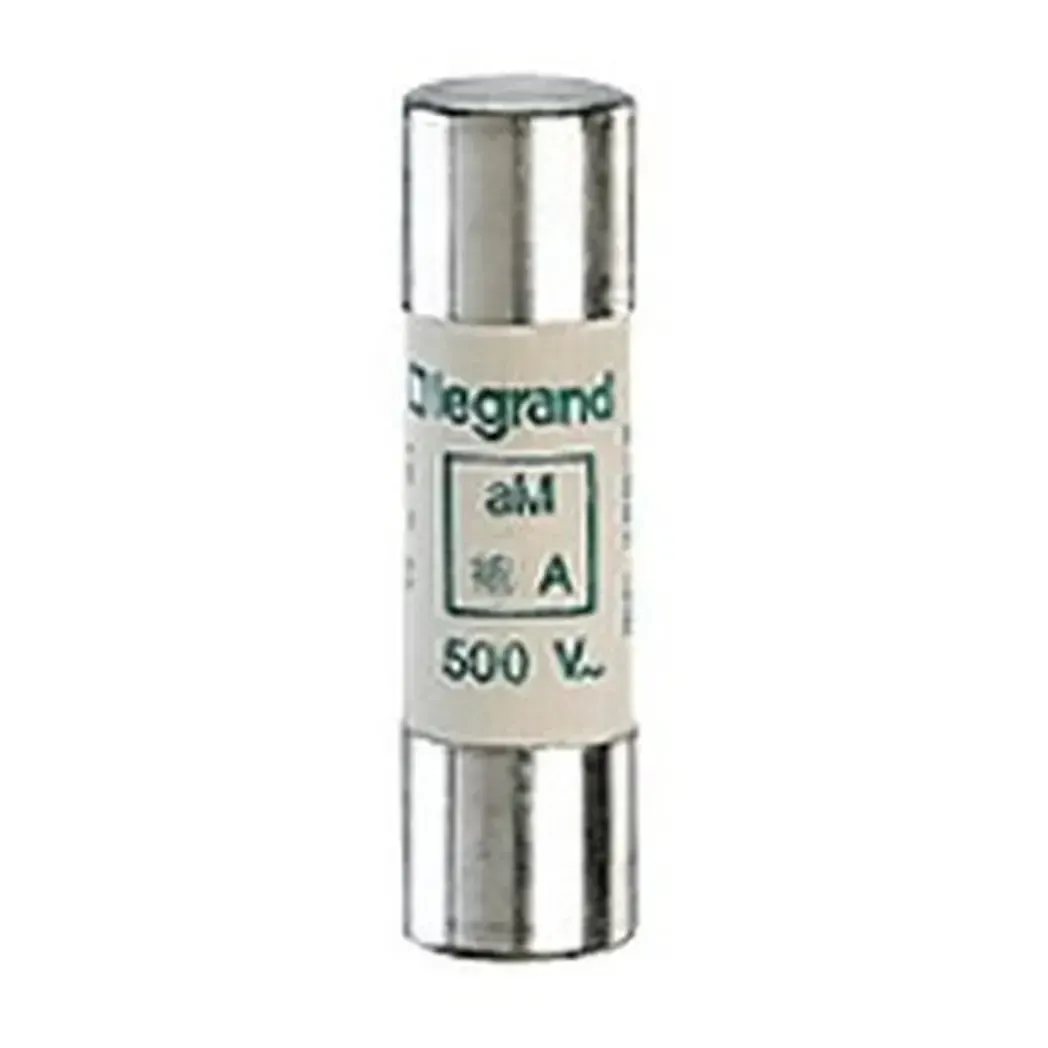

Photo is representative

aM Cylindrical Fuse Link 10A 14x51mm 690V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 441010
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £3.89

Gross price

£4.67

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

aM class cylindrical fuse link, 14x51mm format, rated 10A at 690V. Designed for short-circuit protection on motor circuits, transformers, and other loads with high inrush currents. The aM class provides motor circuit coordination without tripping on inrush — not for general overload protection.

  • Rated current: 10A
  • Rated voltage: 690V +5%
  • Breaking capacity: 80kA @ 690V
  • Size: 14x51mm (A: 14.3mm, B: 51mm)
  • Body: ceramic, silver-plated copper contacts
Specifications

Rated Current

10A

Rated Voltage

690V +5%

Operating Class

aM

Breaking Capacity

80kA @ 690V

Size

14x51mm

Rated Frequency

42…62Hz

Operating Temperature

-40°C to 80°C

Storage Temperature

-40°C to 90°C

Power Dissipation @ 10A

0.53W

Prearcing I²t @ 10A

300 A²S

I²t @ 690V @ 10A

1400 A²S

I²t @ 500V @ 10A

916 A²S

I²t @ 400V @ 10A

733 A²S

Weight

18g

Body Material

Ceramic

Contact Material

Silver plated copper

Standards

IEC/EN 60269-1, IEC/EN 60269-2

RoHS Compliant

Yes
