Neozed D01 10A gG 400VAC 250VDC E14 Fuse-Link NZ10

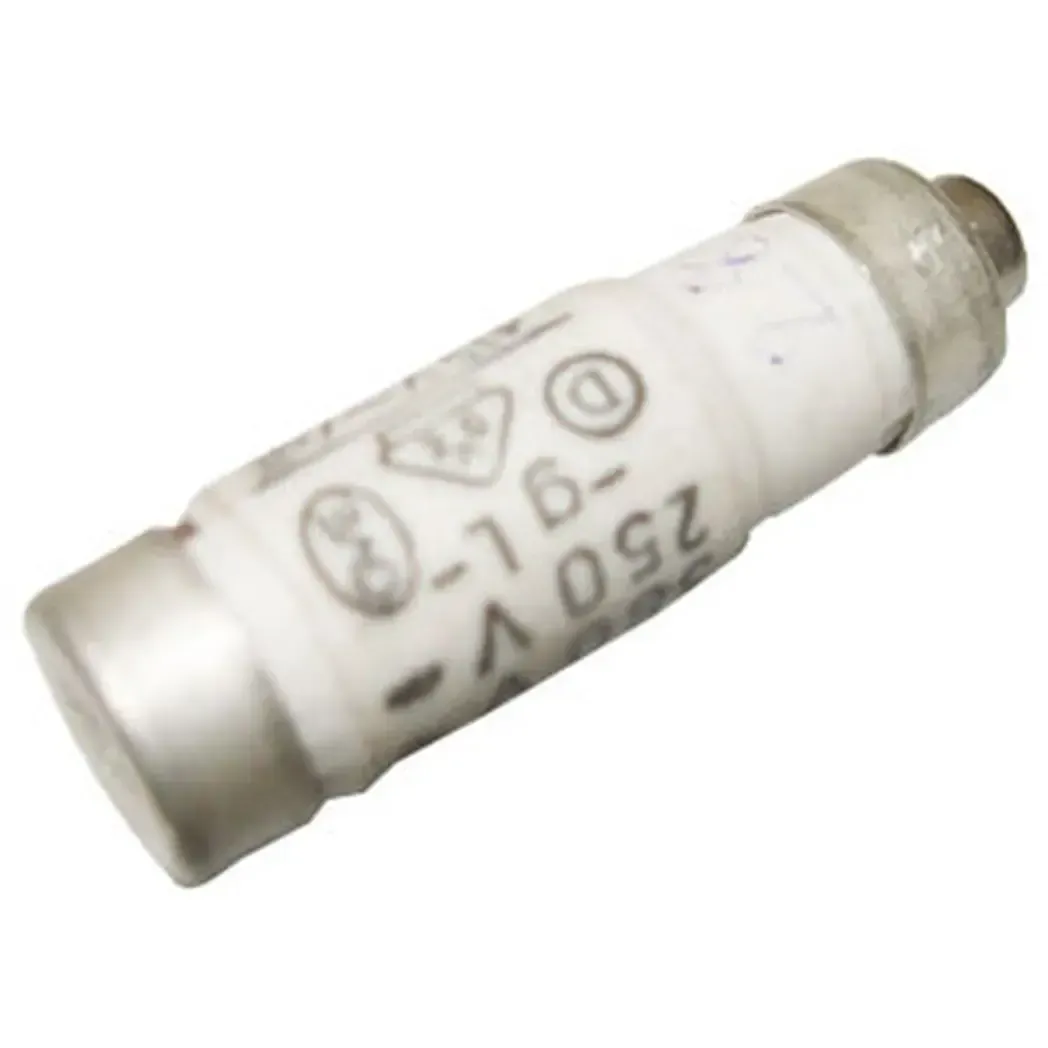

Photo is representative

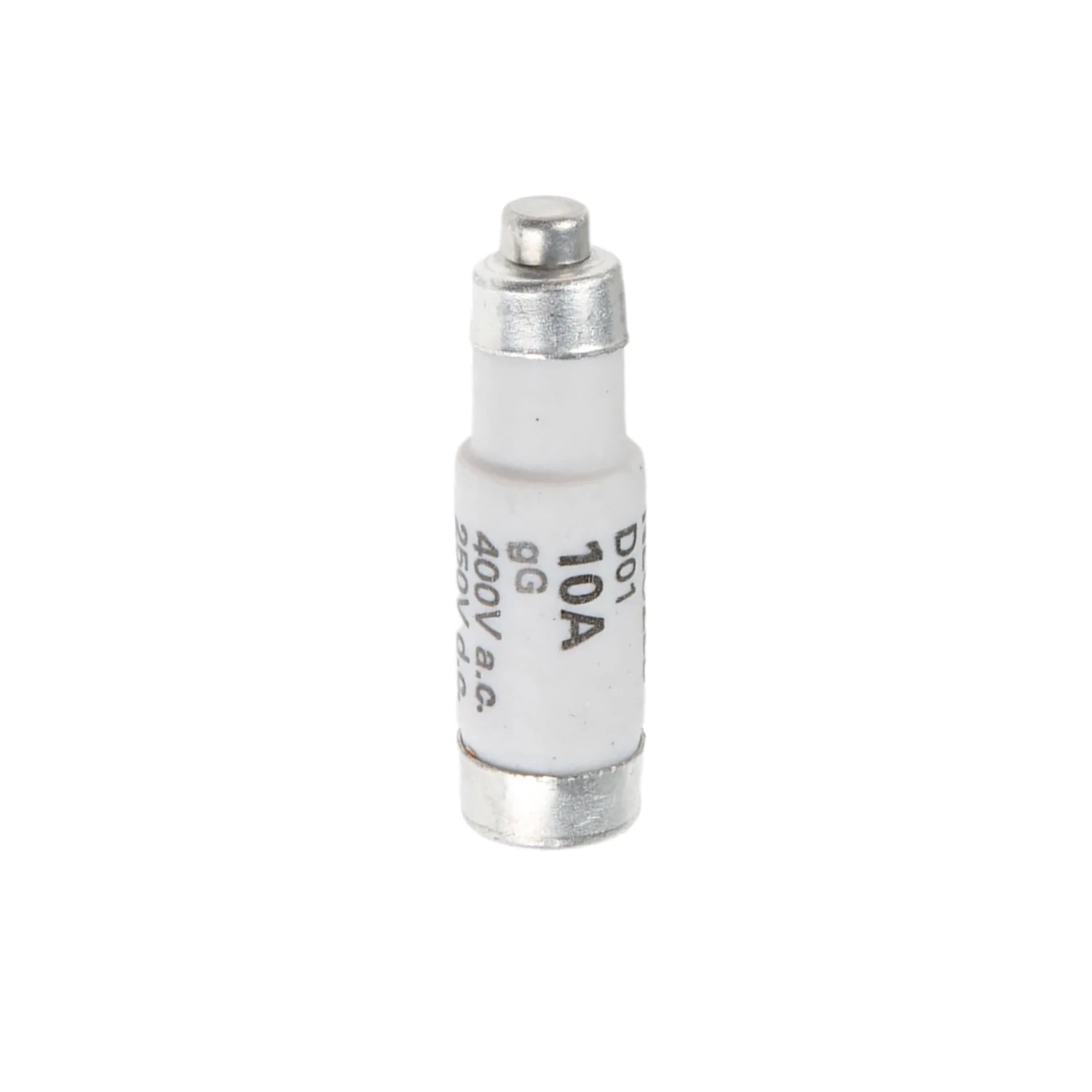

Neozed D01 10A gG 400VAC 250VDC E14 Fuse-Link NZ10

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code NZ10
GTIN —
Stock status: In stock

priced individually

Net price: £0.92

Gross price

£1.11

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Neozed D01 gG fuse-link, size E14. Fits screw-type fuse bases in distribution units — suited to installations where non-trained personnel may need to replace fuses.

Rated 10A at 400V AC, class gG for general overcurrent and short-circuit protection. 50kA breaking capacity.

  • Size: D01 (E14), 36mm length, 11mm diameter
  • Rated voltage: 400V AC / 250V DC
  • Breaking capacity: 50kA AC
  • Standard: DIN VDE 0636-3
  • Contact: nickel or silver plated copper alloy
Specifications

Rated Current

10 A

Rated Voltage AC

400 V

Rated Voltage DC

250 V

Fuse Class

gG

Breaking Capacity AC

50 kA

Size

D01 (E14)

Length

36 mm

Diameter

11 mm

Power Dissipation at In

1.8 W

Contact Material

Nickel plated or silver plated copper alloy

Standard

DIN VDE 0636-3
