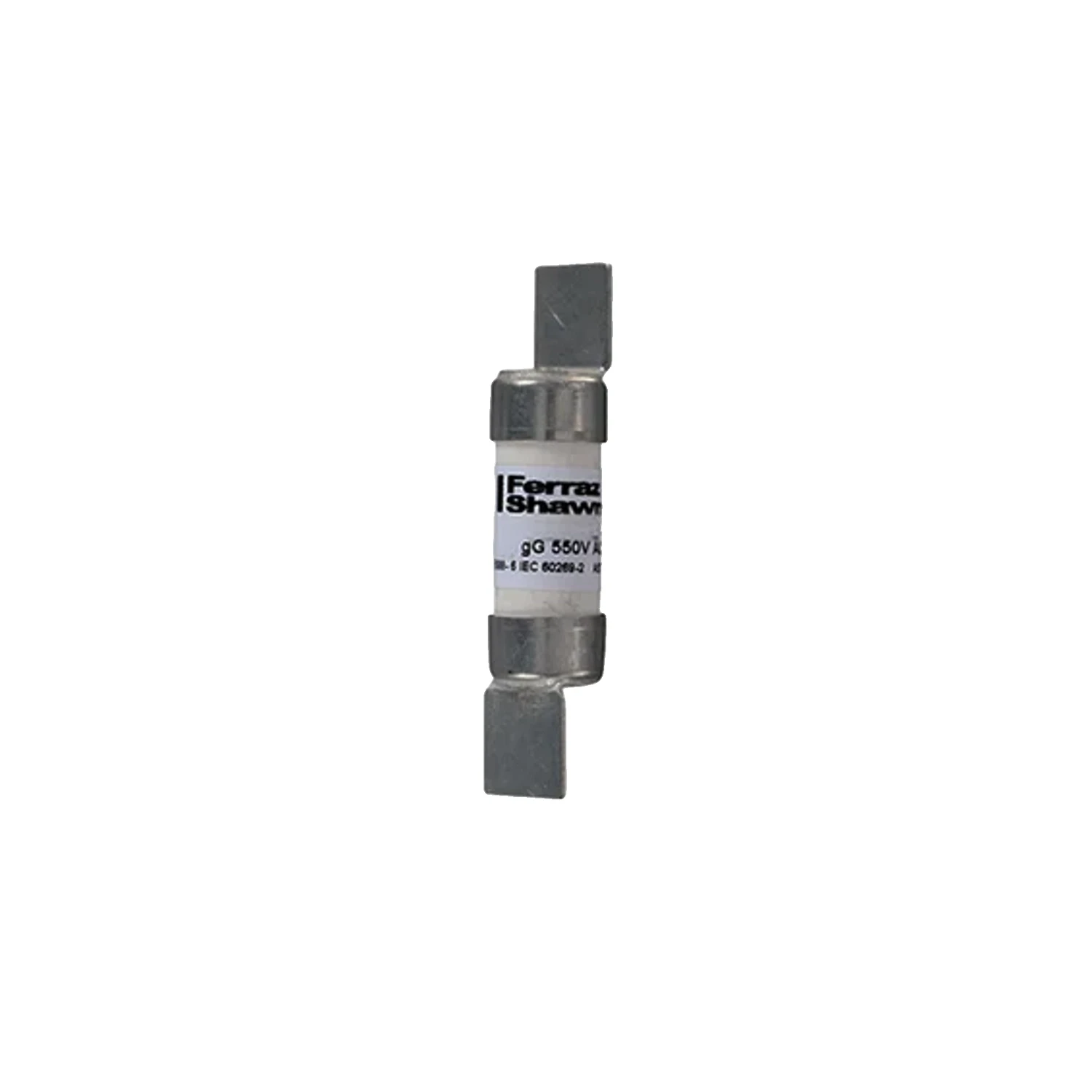

NS Fuse 10A F1 gG Offset Blade 550V AC 250V DC Ceramic Cartridge

Photo is representative

NS Fuse 10A F1 gG Offset Blade 550V AC 250V DC Ceramic Cartridge

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code NS10
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £5.46

Gross price

£6.56

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

BS88 gG ceramic cartridge fuse-link, F1 size, 10A. Offset blade terminals for clip-mount fuse holders. Rated 550V AC and 250V DC.

Class gG — general purpose overcurrent and short-circuit protection. Suitable for AC and DC circuits.

  • Breaking capacity: 80kA AC / 40kA DC
  • Clearing I²t: 350 A²s | Melting I²t: 70 A²s
  • Dimensions: 13.5mm dia × 61mm length
  • Terminal: tin-plated copper, offset blade
Specifications

Ampere Rating

10 A

Rated Voltage AC

550 V

Rated Voltage DC

250 V

Fuse Class

gG

Fuse Size

F1

Standard

BS88 / IEC60269

Breaking Capacity AC

80 kA

Breaking Capacity DC

40 kA

Clearing I²t at Rated Voltage

350 A²s

Melting I²t

70 A²s

Terminal Type

Offset Blade

Terminal Material

Tin-Plated Copper

Mounting

Clip

Body Material

Ceramic

Diameter

13.5 mm

Length

61 mm

Power Dissipation at Rated Current

1.2 W

Weight

0.0175 kg

RoHS Compliant

Yes
