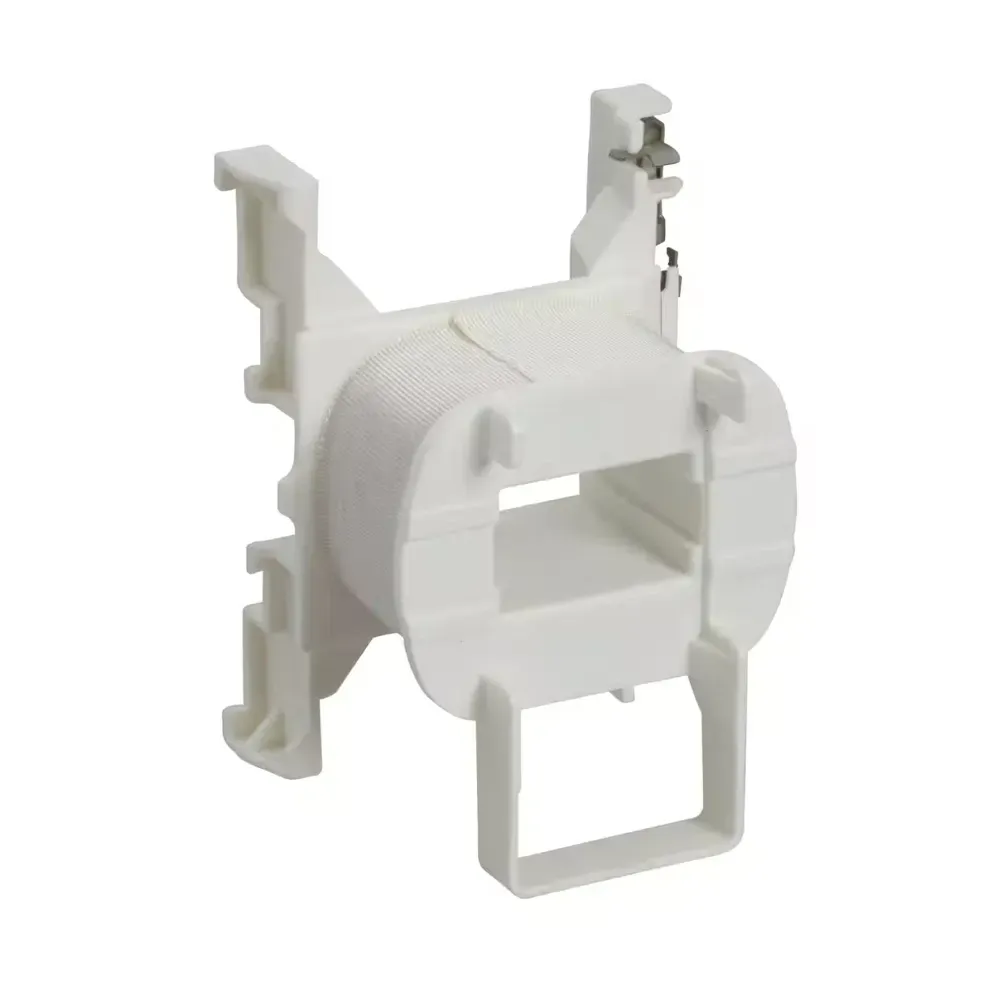

Schneider TeSys Deca 110V AC coil detail close-up for LC1D09...D38 replacement

Photo is representative

Schneider Contactor Coil 110V AC for LC1D09...D38 | TeSys Deca Replacement

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code LXD1F7
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £17.85

Gross price

£21.42

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

The Schneider Contactor Coil 110V AC is engineered for TeSys Deca contactors LC1D09 to D38, delivering reliable control circuit performance at 50/60Hz. Its robust design ensures mechanical durability, precise voltage limits, and stable power consumption for demanding applications. With compatibility across multiple TeSys models, it’s the ideal choice for professional maintenance and reliable coil replacement. A trusted solution for industrial and control panel environments.

Specifications

Brand

Schneider

Product Type

Contactor Coil

Control Circuit Voltage

110 V AC 50/60 Hz

Mechanical Durability

15 million cycles

Compatibility

LC1D09...D38, LC1DT20...DT40, CAD

Average Resistance

124.1 Ohm at 20°C

Inductance (closed circuit)

4.6 H

Power Consumption (Inrush)

70 VA 50/60Hz

Power Consumption (Hold-in)

7/7.5 VA 50/60Hz

Operating Temperature

-5 to 60°C

Frequently asked questions

Which TeSys contactors is this 110V AC coil compatible with?

This coil is compatible with Schneider TeSys LC1D09 to LC1D38, LC1DT20 to LC1DT40, and CAD contactor models, making it suitable for a broad range of control panel upgrades and replacements.

What is the mechanical durability of this Schneider contactor coil?

The coil is rated for a mechanical durability of 15 million cycles, ensuring long-term reliability and optimal performance in demanding industrial environments.

What are the operational voltage limits for this coil?

Operational voltage limits range from 0.8 to 1.1 Uc at 50 Hz and 0.85 to 1.1 Uc at 60 Hz. Drop-out voltage is 0.3 to 0.6 Uc at 50/60 Hz within an ambient temperature below 60°C.

What is the power consumption during inrush and hold-in?

The inrush power is 70 VA at 50/60 Hz (cos phi 0.75 at 20°C). Hold-in power consumption is 7 VA at 50 Hz and 7.5 VA at 60 Hz (cos phi 0.3 at 20°C).

What operating temperature range is supported by this coil?

The Schneider contactor coil can operate in ambient air temperatures from -5°C up to 60°C, making it appropriate for diverse industrial installations.
