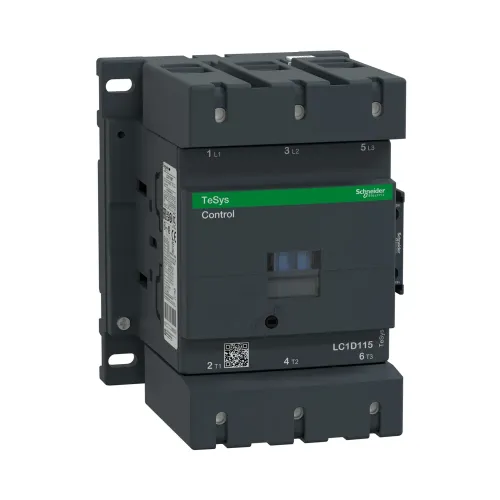

Photo is representative

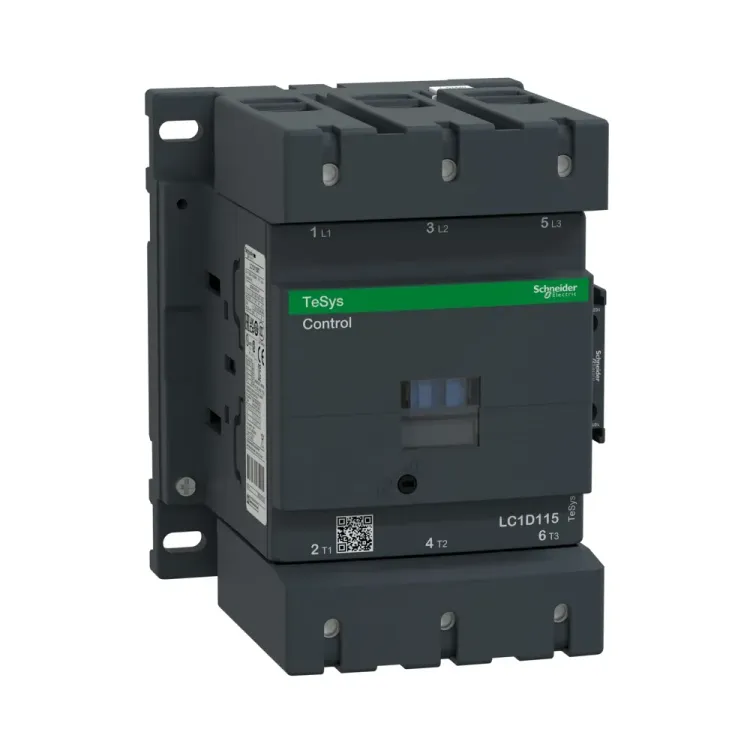

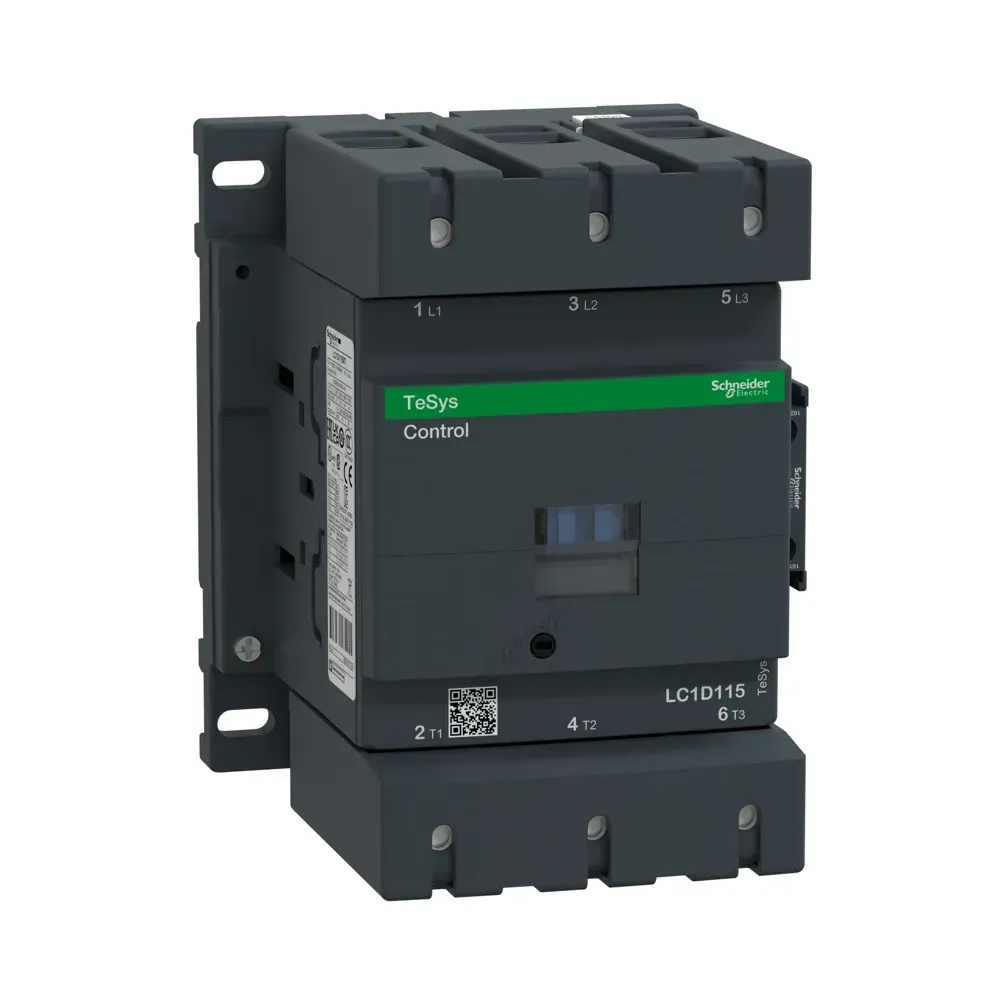

Schneider TeSys D 115A 230V AC 3P Contactor - LC1D115P7
Schneider TeSys D 115A 230V Coil AC 3P contactor (LC1D115P7), suitable for industrial motor control, resistive, and mixed loads. Rated 115A AC-3 at up to 440V for motors up to 59kW (415–440V). Features integrated 1 NO + 1 NC auxiliary contacts, screw clamp terminals for secure wiring, and fits both DIN rail and panel mounting. Compact design with full IEC 60947-4-1 and UL 60947-4-1 compliance, offering robust performance and reliable switching for high-power applications. Includes built-in bidirectional diode suppression for the control coil, and a protective cover for operator safety.
Online:
Product Features
Current Rating | 115A AC-3 / 200A AC-1 at 440V |
---|---|
Control Coil | 230V AC 50/60Hz with peak limiting diode suppressor |
Contact Configuration | 3P (3 NO main) + 1NO + 1NC auxiliary |
Frame Size | TeSys D-frame (F, high capacity) |
Terminal Type | Screw clamp terminals |
Mounting Method | 35mm DIN rail or panel mount |
Auxiliary Capability | 1NO + 1NC integrated, supports add-on auxiliary blocks |
Mechanical Life | 8 million operations |
Motor Rating | Up to 59kW at 415–440V AC (AC-3), 75kW at 500V, 80kW at 690V |
Standards Compliance | IEC 60947-4-1, BS EN 60947-4-1, CSA, UL, CE, CCC, UKCA, EAC, Marine |
