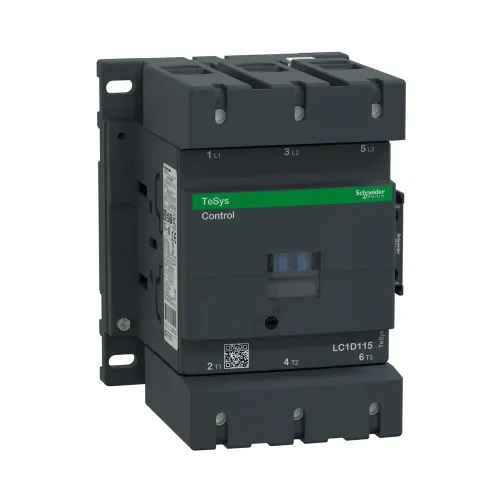

Photo is representative

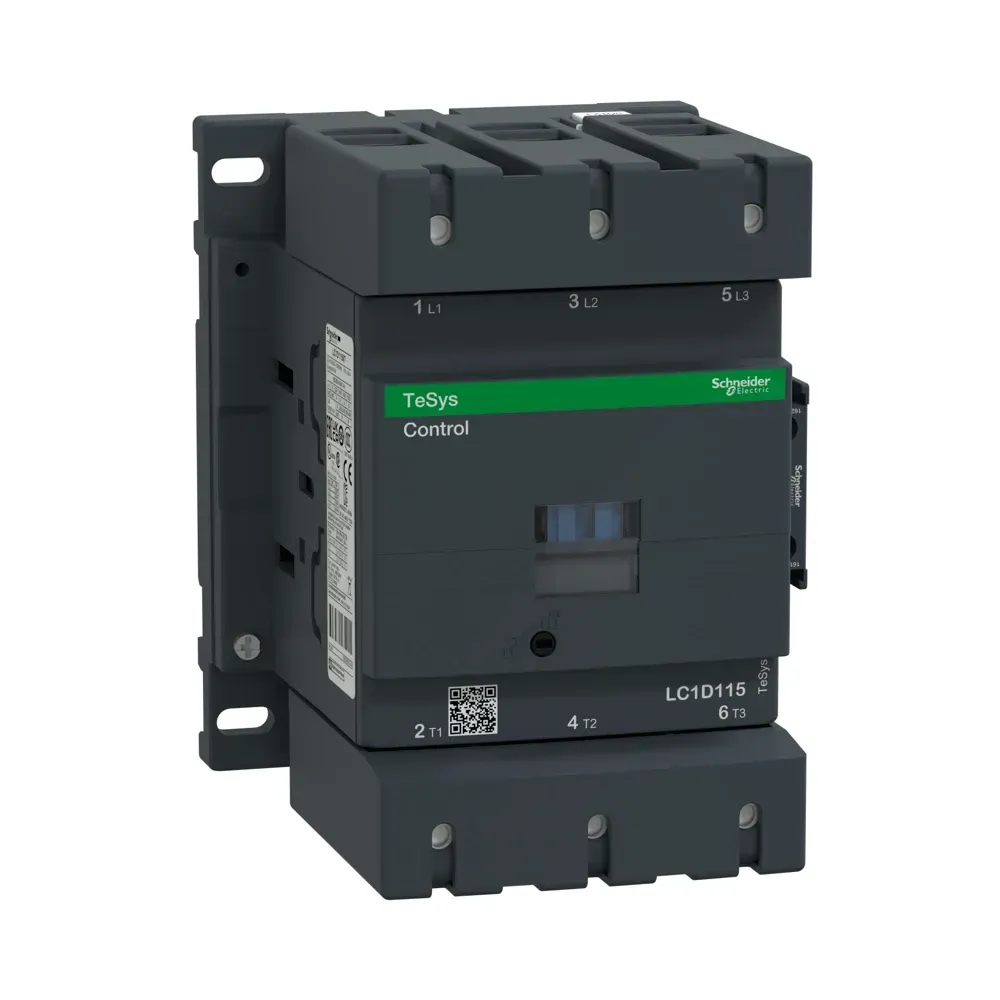

Schneider TeSys D 115A 400V AC 3P Contactor - LC1D115V7
Schneider TeSys D 115A 400V Coil AC 3P contactor (LC1D115V7), suitable for high-capacity motor control and resistive load applications. AC-3 rated 115A at 440V for motors up to 55kW at 400V. Robust 3-pole (3NO) configuration with built-in 400V AC 50/60Hz coil and screw clamp terminals. Designed for direct-on-line (DOL) starting, star-delta, and reversing motor duties. Compliant with IEC 60947-4-1, offers compact mounting on DIN rail or panel with high mechanical and electrical durability. Features 1NO+1NC integrated auxiliary contacts, peak limiting diode coil suppression, and protective IP20 front cover.
Online:
Product Features
Current Rating | 115A AC-3, 200A AC-1 |
---|---|
Control Coil | 400V AC 50/60Hz |
Contact Configuration | 3P (3NO) main contacts + 1NO+1NC integrated auxiliaries |
Frame Size | F-frame |
Terminal Type | Screw clamp terminals (power and control) |
Mounting Method | DIN rail (35mm) or panel mount |
Auxiliary Capability | Accepts up to 4 auxiliary contact blocks (side mounting) |
Motor Rating | Up to 55kW at 400V AC (AC-3) |
Mechanical Life | 8 million operations |
Standards Compliance | IEC 60947-4-1, BS EN 60947-4-1, CSA, UL, CE, UKCA, CCC, EAC, Marine |
Operating Ambient Temperature | -40…60°C; up to 70°C with derating |
Enclosure Rating | IP20 front face |
