aM Cylindrical Fuse Link 22x58mm 125A 400V AC 120kA

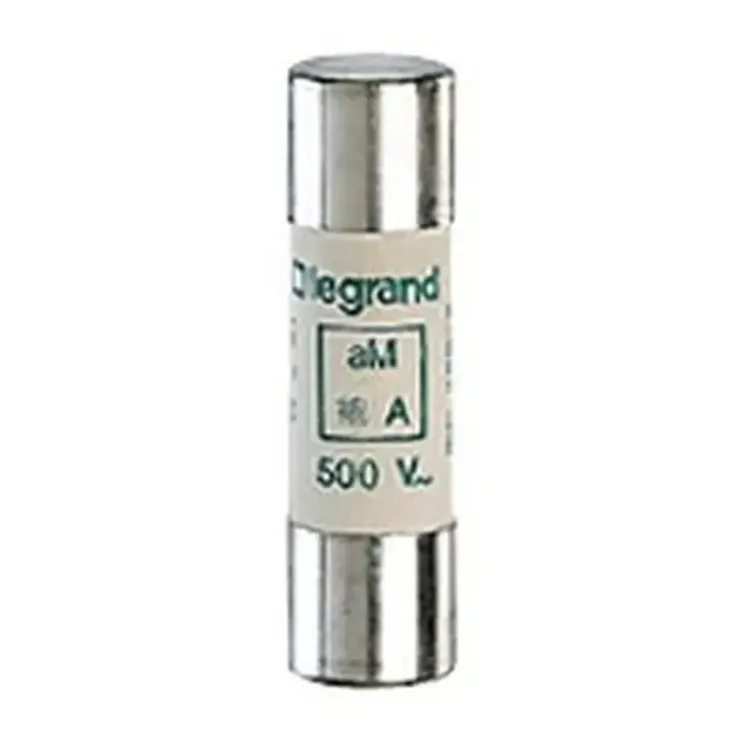

Photo is representative

aM Cylindrical Fuse Link 22x58mm 125A 400V AC 120kA

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 442125
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £3.07

Gross price

£3.69

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

22x58mm aM cylindrical fuse link rated 125A at 400V AC. Sized for motor, transformer, and high inrush load circuits where aM class coordination is required. Good current-limiting performance with low I²t values. Ceramic body with silver-plated copper contacts.

  • Class: aM
  • Breaking capacity: 120kA @ 400V AC, 80kA @ 690V
  • Prearcing I²t: 80,000 A²s
  • Operating temp: -40°C to +80°C
  • Standards: IEC/EN 60269-1, IEC/EN 60269-2
Specifications

Operating Class

aM

Rated Current

125A

Rated Voltage

400V AC

Rated Frequency

42–62Hz

Breaking Capacity (400V)

120kA

Breaking Capacity (500V)

120kA

Breaking Capacity (690V)

80kA

Size

22x58mm

Prearcing I²t

80,000 A²s

I²t @ 400V

200,000 A²s

Power Dissipation

8.42W

Operating Temperature

-40°C to 80°C

Storage Temperature

-40°C to 90°C

Weight

50g

Body Material

Ceramic body with silver plated copper contacts

Standards

IEC/EN 60269-1, IEC/EN 60269-2
