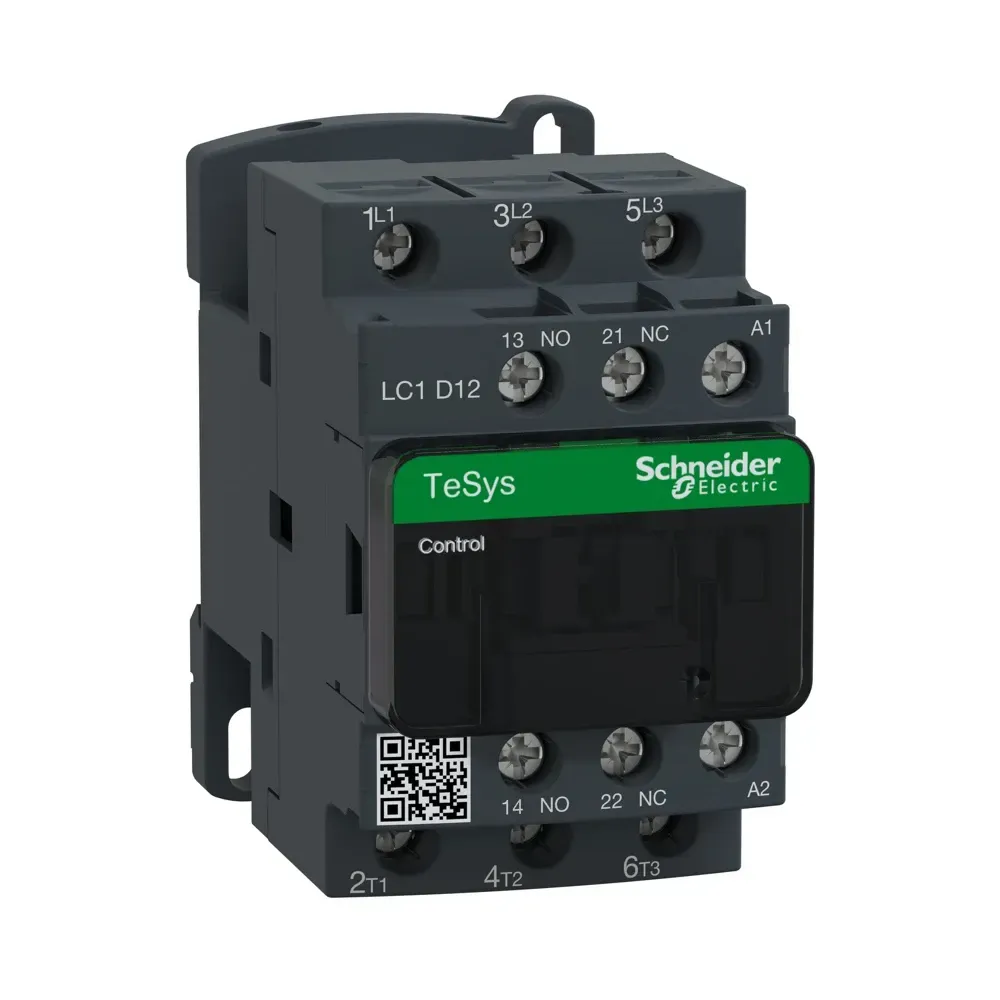

Schneider TeSys D 12A 24V DC 3P contactor front view

Photo is representative

Schneider TeSys D 12A 24V DC 3P Contactor - LC1D12BD

Schneider TeSys D 12A 24V Coil DC 3P contactor (LC1D12BD), suitable for direct-on-line (DOL) motor starting, reversing, and general control applications in industrial automation. Rated 12A AC-3 at up to 440V for motor loads up to 5.5kW (400V) or 7.5kW (690V). Includes a built-in integral 24V DC coil with suppression device and 1NO+1NC auxiliary contacts. DIN rail or plate mounting with screw clamp terminals. Compliant with IEC 60947-4-1 and suitable for AC-1, AC-3, AC-4, and AC-3e utilization categories. Features robust mechanical and electrical endurance, with IP20 front face protection and a compact TeSys Deca LC1D frame.

Stock Code: LC1D12BD

Online:

In stock
Price 86.35 £
incl. VAT, 20% priced individually

Product Features

Current Rating 12A AC-3 / 25A AC-1
Control Coil 24V DC with integral suppression device
Contact Configuration 3 NO main contacts + 1NO+1NC auxiliary contacts
Frame Size TeSys D (LC1D12) frame
Terminal Type Screw clamp terminals
Mounting Method 35mm DIN rail or plate mount
Motor Rating Up to 5.5kW at 400V, 7.5kW at 690V
Mechanical Life 30 million operations
Standards Compliance IEC 60947-4-1, IEC 60947-5-1, EN 60947, UL, CSA, EAC, UKCA

Brand

Schneider Electric
