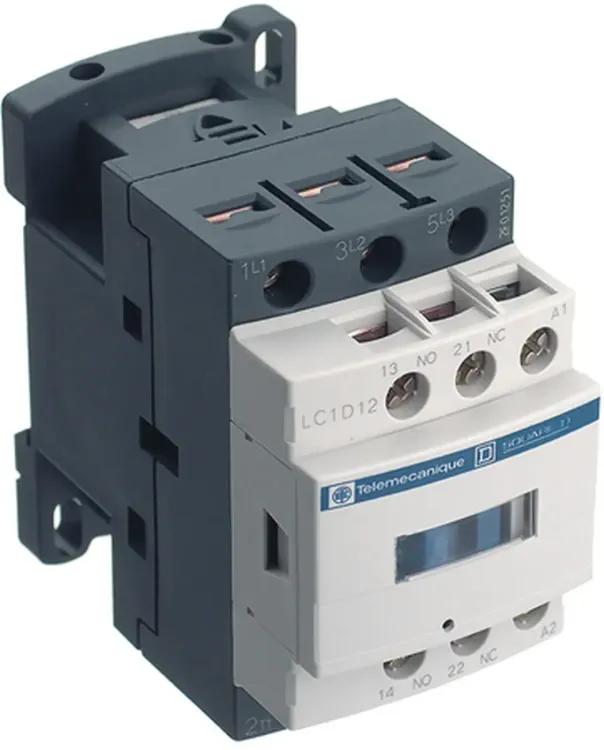

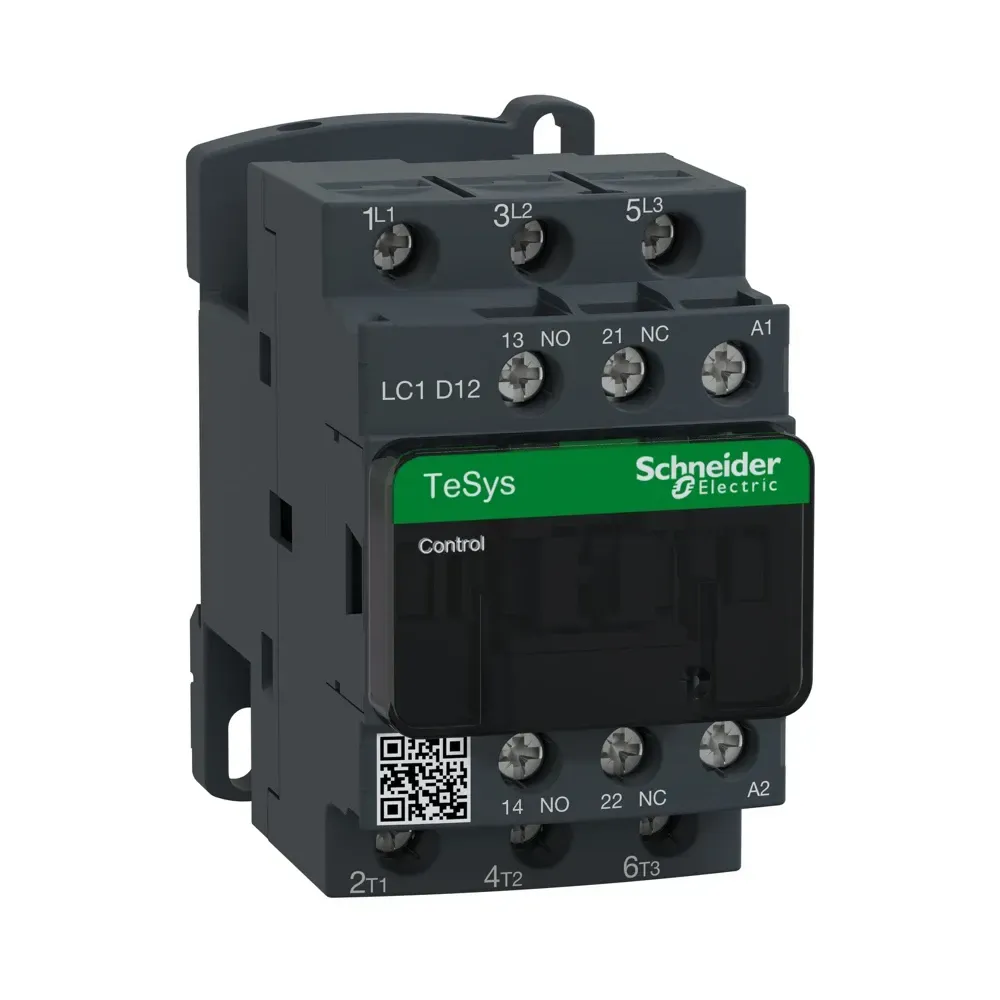

Schneider TeSys D 12A 400V AC 3P Contactor - LC1D12V7

Name: Schneider TeSys D 12A 400V AC 3P Contactor - LC1D12V7
Brand: Schneider Electric
SKU: LC1D12V7
Availability: InStock

Schneider TeSys D 12A 400V Coil AC 3P contactor (LC1D12V7), suitable for motor control and resistive load switching in industrial applications. AC-3 rated 12A at up to 440V for motors up to 5.5kW at 400V. Equipped with a 400V AC 50/60Hz coil, screw clamp terminals, and 3 NO main contacts plus integrated 1 NO + 1 NC auxiliary contacts. DIN rail or panel mounting. IEC 60947-4-1 compliant for reliable and safe operation within control panels and automation systems.

Stock Code LC1D12V7

MPN LC1D12V7

GTIN 3389110349351

In stock

£52.25

incl. VAT, 20% priced individually

Product Features

Current Rating	12A AC-3 (motor); 25A AC-1 (resistive)
Control Coil	400V AC 50/60Hz
Contact Configuration	3P (3NO main) + 1NO+1NC auxiliary
Frame Size	D-frame
Terminal Type	Screw clamp terminals
Mounting Method	35mm DIN rail or panel mount
Motor Rating	Up to 5.5kW at 400V AC
Mechanical Life	15 million operations
Standards Compliance	IEC 60947-4-1, EN 60947-4-1, UL 60947-4-1, CSA C22.2 No 14
