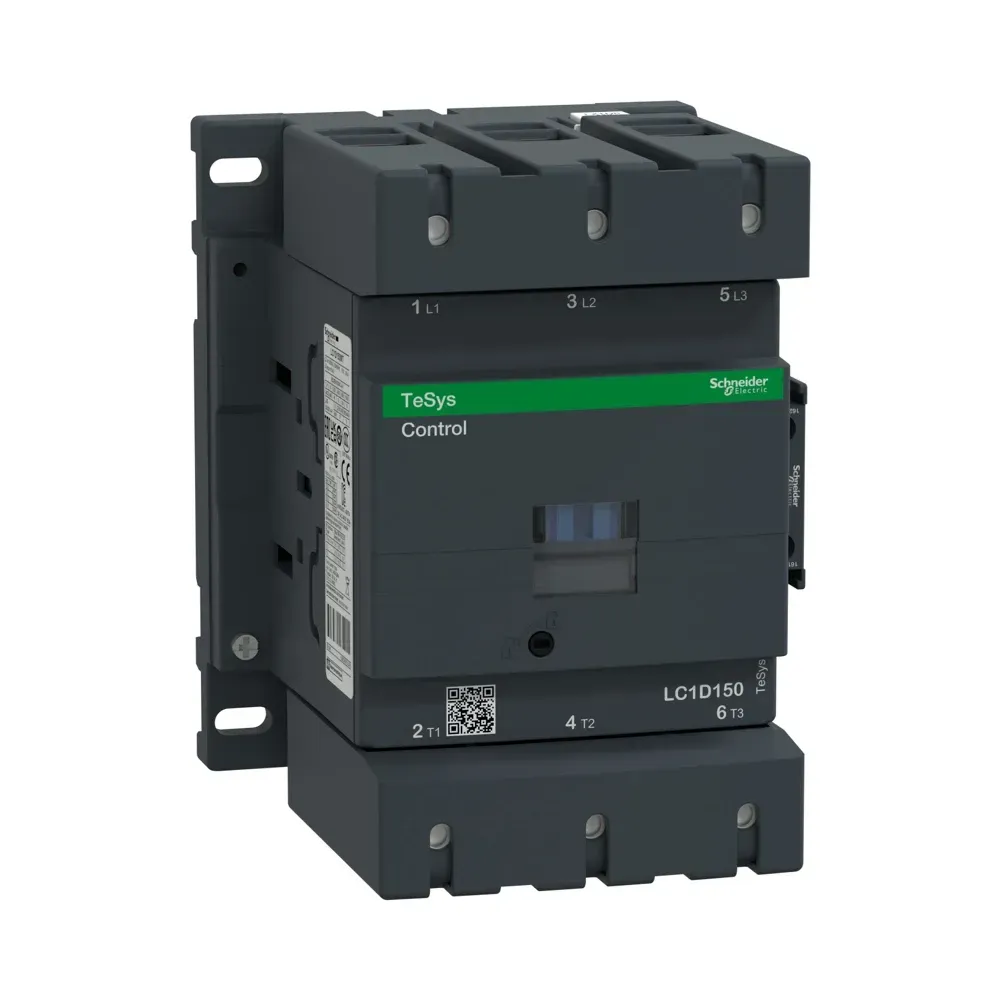

Schneider TeSys D LC1D150P7 150A 3P contactor front view

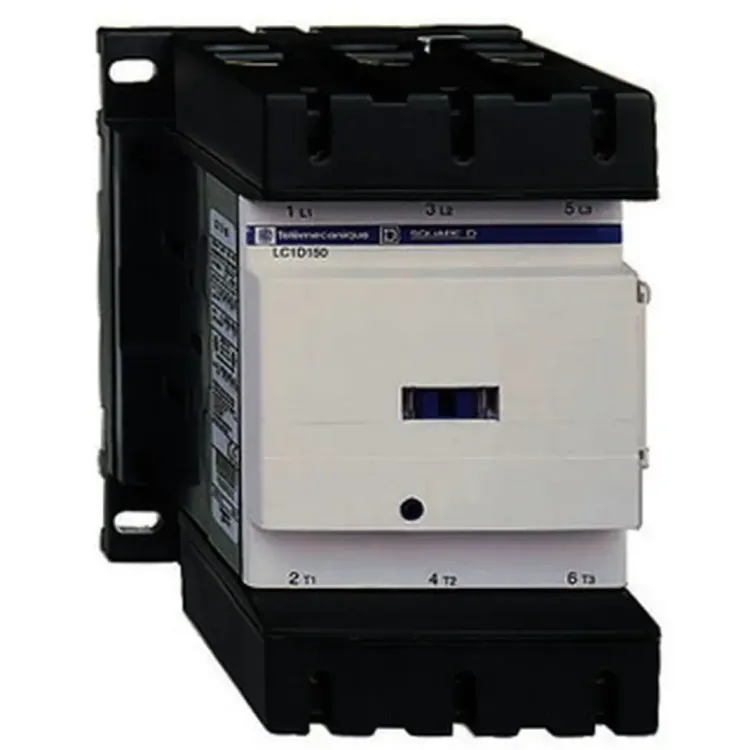

Photo is representative

Schneider TeSys D 150A 230V AC 3P Contactor - LC1D150P7

Schneider TeSys D 150A 230V Coil AC 3P contactor (LC1D150P7), engineered for heavy-duty motor control and resistive load switching up to 150A AC-3 at 440V. AC-3 rated for motors up to 80kW (415–440V) and up to 100kW at 690V. Features a 230V AC 50/60Hz coil, screw clamp terminals, and integrated auxiliary contacts (1NO+1NC) for signaling applications. Suitable for DOL starting, reversing, star-delta, and automation panel integration. Plate or DIN rail mountable. Complies with IEC 60947-4-1 and global standards. Discontinuation notice: Available until 31 Dec 2026.

Product Information

Stock Code LC1D150P7
MPN —
GTIN —
Stock status: 6 available
Price: £528.28
incl. VAT, 20% priced individually

Product Features
Current Rating 150A AC-3, 200A AC-1 at ≤440V
Control Coil 230V AC 50/60Hz
Contact Configuration 3P power contacts + 1NO+1NC auxiliary
Frame Size D-frame, TeSys Deca range
Terminal Type Screw clamp terminals
Mounting Method DIN rail or plate mounting
Motor Rating Up to 80kW at 440V AC (AC-3), 100kW at 690V AC
Auxiliary Capability Integrated 1NO+1NC, accepts additional auxiliary blocks
Mechanical Life 8 million operations
Standards Compliance IEC 60947-4-1, EN 60947-4-1, UL, CSA, CE certified
Operating Temperature Range -40…60°C (up to 70°C with derating)
Enclosure Rating IP20 front (IEC 60529)
Dimensions (HxWxD) 158 x 120 x 136 mm
Net Weight 2.5 kg

Brand

Schneider Electric
